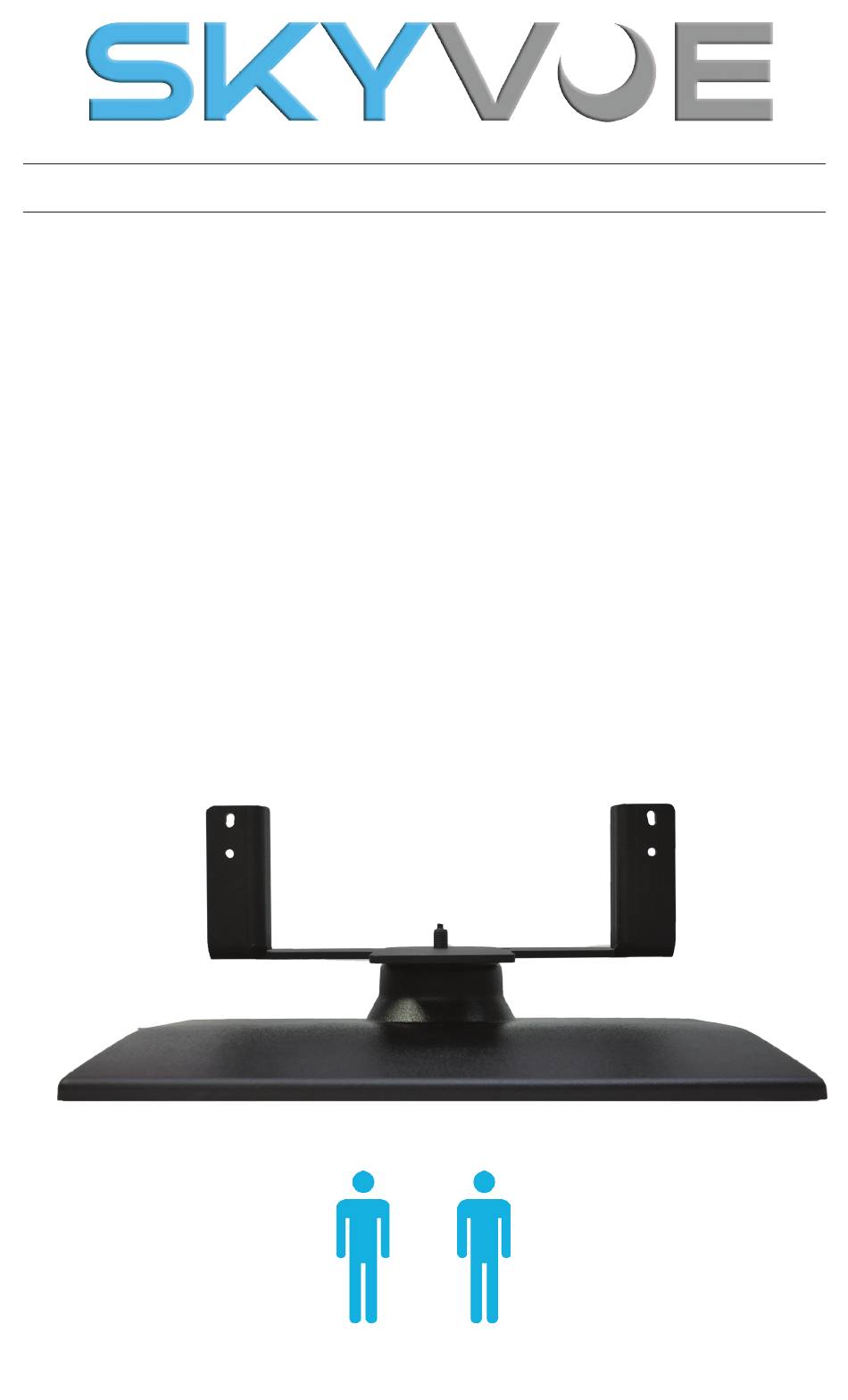

- Page 1 NXG-42 / NXG-46 Table Stand Installation *This Installation requires a minimum of two people.
- Page 2 Installation Manual - Table Swivel Stand Warning: Do not plug speaker bar into A/C outlet until connections to the television have been plugged in. This will severely damage the speaker bar if not followed completely. Lay blanket down on flat sturdy surface.
- Page 3 Remove 2 - M6X12 screws and washers, indicated with red circles. NXG 4650 Use the Top Holes NXG-4250 Use the Bottom Holes STAND SWIVEL nXG 42 / nXG 46 nstallatIon anual...
- Page 4 Installation Manual - Table Swivel Stand Align the holes of the table stand swivel uprights with the holes on the back of the television. Reinsert the screws with the flat washers and tighten securely. ® All Rights Reserved. 2017 SkyVue...
- Page 5 Place mounting plate on your tabletop. Use 4 holes indicated in the red circles to drill holes in your table top surface. Insert the fasteners that you have purchased and tighten securely. Place plastic cover on the mounting plate and press corners. nXG 42 / nXG 46 nstallatIon anual...
- Page 6 Installation Manual - Table Swivel Stand The main bolt for your SkyVue table stand is shipped with a protective coating on it. At this time please remove. Have your friend assist you with placing the television on the stand and apply washers and nut as follows.
- Page 7 Place the provided plastic spacer on the bolt shaft. Followed by the provided Stainless Steel Washer Place the provided Stainless Steel Lock Washer Then completed with the provided Stainless Steel Nut. Be sure not to over tighten. nXG 42 / nXG 46 nstallatIon anual...
- Page 8 Installation Manual - Table Swivel Stand On the back of your table stand - Insert and secure the torque screw with plastic spacer. ® All Rights Reserved. 2017 SkyVue...
- Page 9 Congratulations you have successfully installed your table stand. If you have any questions call our tech support team (877)-475-9883 option 2...
