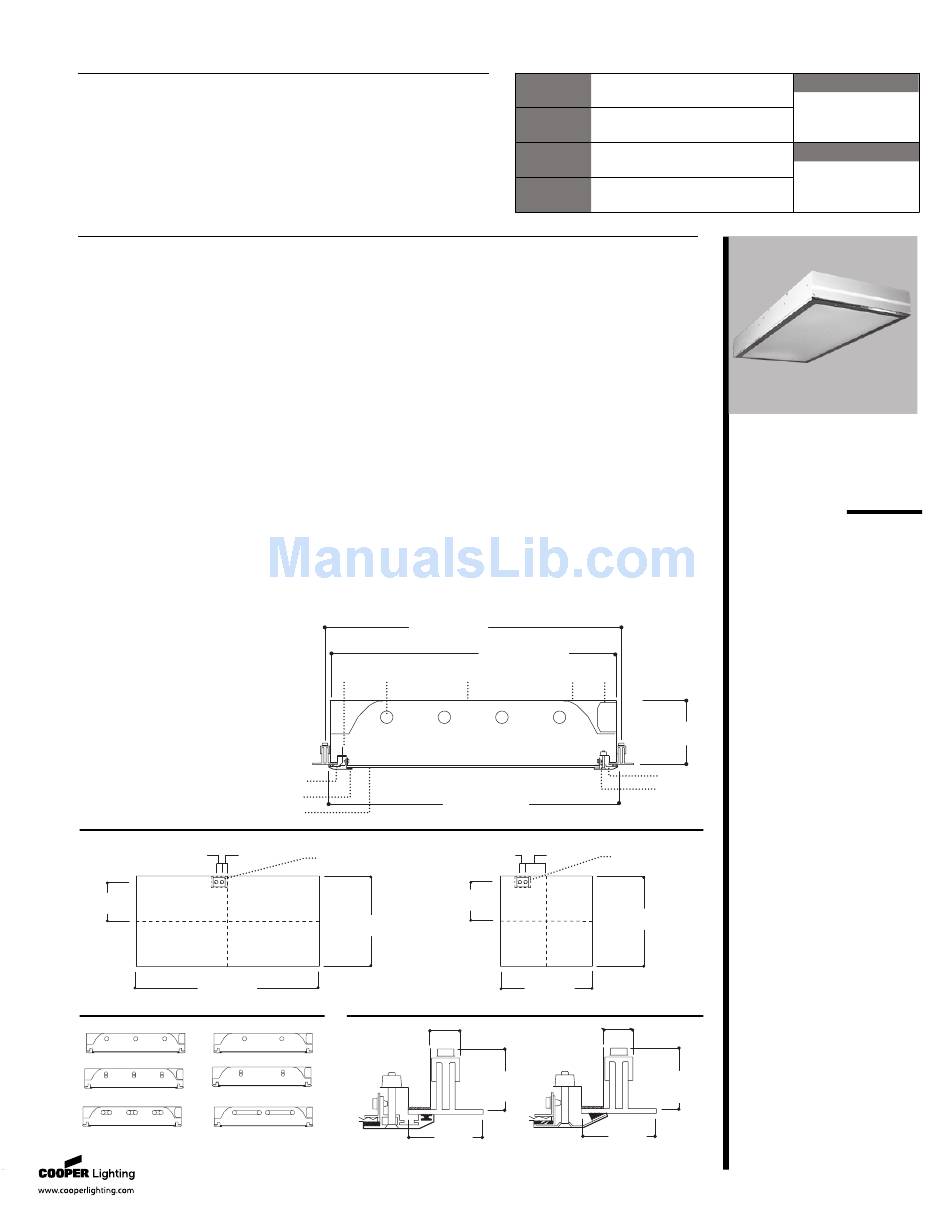

Cooper Lighting Fail-Safe SCH24 Specification Sheet

DESCRIPTION
The Fail-Safe SCH24 Series is designed for use in horizontal or non-laminar
air flow clean rooms. The enclosed and gasketed housing and door protect
against infiltration of airborne bacteria. Fixtures tested to 100 PSI hosedown.
Higher ratings available (consult factory). The mitered edges on the door
frame and the hole-free design of the housing prevent air exchange
between the fixture and plenum, allowing relamping without contamination
of the clean areas. These luminaires are manufactured in accordance with
U.S.D.A., F.D.A., N.S.F. and Federal Standard 209E.
SPECIFICATION FEATURES
Application
The SCH24 Series is suitable for
use in I.E.S. Class 10 (M2.5), 100 (M
3.5), 1,000 (M 4.5), 10,000 (M 5.5)
and 100,000 (M 6.5) clean room
environments. Applications include
cleanrooms, technical and bio-
medical labs, food processing/
testing centers and pharmaceutical
labs.
A ... Lens
Lens is clear extruded with prisms
positioned inside fixture and
smooth surface on the outside for
easy cleaning.
B ... Fasteners
Flush mounted, stainless steel
machine screws secure through
captive cage nuts in housing and
are evenly spaced to compress
gasketing on all sides.
C ... Housing
Nominal 5" deep recessed one-
piece housing made of 20 ga. CRS.
Die-formed and seam welded to
create a sealed chamber.
D ... Lamps
(By Others)
MOUNTING DIMENSIONS
1 7/16"
1 1/2"
[37mm]
[38mm]
10"
[254mm]
48 "
[1219mm]
LAMP CONFIGURATIONS
Specifications and Dimensions subject to change without notice.
E ... Lens Retention
Unique, Particulock(TM) lens
retention system utilizes con-
tinuous, 18 ga. media clamp-
downs. Lens is hermetically sealed
with silicone RTV to door frame for
an airtight seal against the
environment.
F ... Hinge
Reversible drop-link hinging
system for easy maintenance.
G ... Door
Optional) Door can be extruded
aluminum, fully gasketed, outside
flanged door with mitered edges
eliminates seams which could
entrap microscopic contaminants.
Not standard, must specify. One-
piece, die-formed stainless steel
door optional.
H ... Ballast
Standard Class P, CBM/ETL ballast.
24" [610mm]
F D C
G
E
23 3/8" [594mm]
A
(2) 7/8" [22mm] Dia.KO
Gasketed Access Plate
10"
[254mm]
23 3/16"
[589mm]
DOOR FRAME
3/4"
[19mm]
Max.
2"
[51mm]
Extruded aluminum mitered door frame with
extruded silicone rubber perimeter gasketing
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
I ... Gasket
MicroSeal(TM) gasketing system
features silicone RTV sealant
surrounding the perimeter of lens
to seal lens to door frame and
extruded silicone rubber gasketing
around perimeter of door to seal
door to ceiling. White, closed cell
Flexiseal(TM) seals fixture to
ceiling system after installation.
J ... Access
A gasketed access plate on top of
the housing with two flattened,
7/8" diameter knockouts allows
connection of vapor tight conduit
fitting.
Labels
U.L. listed, C.S.A. certified,
standard wet label.
23 3/16" [589mm]
J H
5 7/16"
1 1/2"
[138mm] (2) 7/8" [22mm] Dia. KO
[38mm]
Gasketed Access Plate
23 316"
[589mm]
24"
[610mm]
3/4"
[19mm]
Max.
1 3/4"
[44mm]
Max.
2"
[51mm]
One piece stainless steel door frame with
extruded closed cell silicone perimeter gasketing
FAIL-SAFE
SPECIFICATION GRADE
FLUORESCENT GRID
5"
[127mm]
I
B
E N E R G Y D A TA
Input Watts:
STD Ballasts & STD Lamps
(2) 20W T12 Fluorescents: 53W
(3) 20W T12 Fluorescents: 85W
(4) 20W T12 Fluorescents: 106W
(2) 40W Biaxial Fluorescents: 82W
(3) 40W Biaxial Fluorescents: 127W
ES Ballasts & STD Lamps
(2) 17W T8 Fluorescents: 45W
(3) 17W T8 Fluorescents: 68W
(4) 17W T8 Fluorescents: 90W
(2) 31W U1/U6 Fluorescents: 71W
(3) 31W U1 Fluorescents: 108W
(2) 32W T8 Fluorescents: 71W
(3) 32W T8 Fluorescents: 108W
(4) 32W T8 Fluorescents: 142W
(2) 40W T12 Fluorescents: 86W
(3) 40W T12 Fluorescents: 136W
(4) 40W T12 Fluorescents: 172W
(2) 40W U6 Fluorescents: 86W
ES Ballasts & ES Lamps
1 3/4"
(2) 40W T12 Fluorescents: 76W
[44mm]
Max. (3) 40W T12 Fluorescents: 120W
(4) 40W T12 Fluorescents: 152W
(2) 40W U6 Fluorescents: 76W
Electronic Ballast Data:
Consult Cooper Lighting Representative
ADC041659
06/25/2007 5:03:18 PM
®
Type
Date
SCH24
34W - 160W
Fluorescent
2' X 2'
2' X 4'
2" GRID
