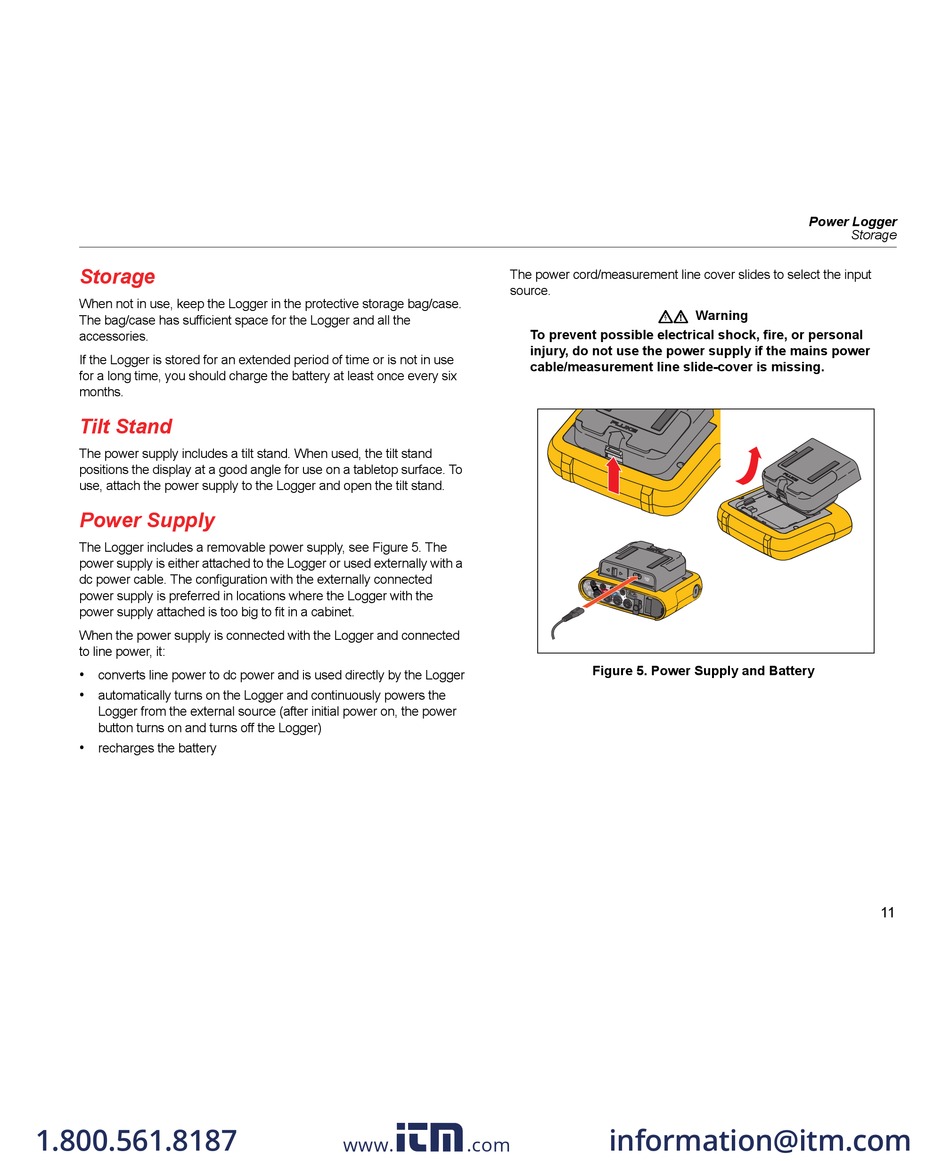

Storage; Tilt Stand; Power Supply - Fluke 1736/FPC User Manual

Storage

When not in use, keep the Logger in the protective storage bag/case.
The bag/case has sufficient space for the Logger and all the
accessories.
If the Logger is stored for an extended period of time or is not in use
for a long time, you should charge the battery at least once every six
months.

Tilt Stand

The power supply includes a tilt stand. When used, the tilt stand
positions the display at a good angle for use on a tabletop surface. To
use, attach the power supply to the Logger and open the tilt stand.

Power Supply

The Logger includes a removable power supply, see Figure 5. The
power supply is either attached to the Logger or used externally with a
dc power cable. The configuration with the externally connected
power supply is preferred in locations where the Logger with the
power supply attached is too big to fit in a cabinet.
When the power supply is connected with the Logger and connected
to line power, it:
•
converts line power to dc power and is used directly by the Logger
•
automatically turns on the Logger and continuously powers the
Logger from the external source (after initial power on, the power
button turns on and turns off the Logger)
•
recharges the battery
1.800.561.8187 1.800.561.8187
The power cord/measurement line cover slides to select the input
source.
www. www. .com .com
Warning
To prevent possible electrical shock, fire, or personal
injury, do not use the power supply if the mains power
cable/measurement line slide-cover is missing.
Figure 5. Power Supply and Battery
