Summary of Contents for Sonoff SNZB-04
- Page 1 SNZB-04 User manual V 1.0 Wireless Door/Window Sensor 中文-------1-6 English-------7-12...
- Page 2 本设备需要连接SONOFF ZigBee网关进行智能 操作，可与其他产品互联互通。 设备支持其它同类型的网关，具体以实际产品为准。 取出电池绝缘片 > 安装设备 1. 撕下3M胶保护膜...
- Page 3 2. 安装时发射器和磁铁上的安装对位标识尽量对齐。 3. 分别粘贴在所需开合区域。 <15mm 注意：发射器和磁铁安装间隙门窗在闭合状态下小于15mm。...
- Page 4 使用说明 1. 下载APP eWeLink eWeLink 2. 添加子设备 添加子设备前，请先连接网关。 ZBBridge 已添加设备:0 暂无子设备，请添加 > 添加 打开eWeLink APP，选择要连接的网关，点击 "添加" 子设备，然后长按设备重置按钮5秒直至 LED指示灯闪烁3下，设备进入配对状态，等待 设备连接。 注意：如添加失败，请将设备移近网关后再重新 添加。...
- Page 5 SONOFF网关支持同时连接多个子 设备 添加设备 ZBBridge 正在连接 已添加设备:0 请让设备尽量靠近网关 暂无子设备，请添加 > 添加 找到设备 3个设备 已找到 先打开eWeLink APP网关页面，点击添加，然后 设置让所需配对的子设备进入配对状态，等待设 备连接。 产品参数 产品型号 SNZB-04 电池型号 CR2032 工作电压: 3V 无线协议: ZigBee (IEEE 802.15.4) 工作温度: -10-40℃ 工作湿度:10-90%RH(无冷凝) 安装距离: <15mm 外壳材料: PC 产品规格: 发射器(47x27x13.5mm) 磁铁(32x15.6x13mm)
- Page 6 产品介绍 发射器 磁铁 安装对位标识 LED指示灯 重置按钮 产品特点 SNZB-04是一款低功耗的无线门窗传感器，通过 发射器与磁铁的靠近与分开感知门窗开/合状态， 通过添加场景联动设置控制其它设备。 低功耗 电量低消息推送 场景联动...
- Page 7 使用场景 门 窗户 注意事项： 请勿安装在户外容易被破坏的位置； 请勿安装在基础不牢固或有雨淋的位置； 请勿安装在线路旁或磁性物体附近； 删除子设备 长按子设备重置按钮5秒直到LED指示灯闪烁3 下，此时子设备已在网关中删除。 提醒：用户还可在APP子设备界面中删除子设备。...
-
Page 8: Install The Device
The device can be operated intelligently via working with the SONOFF ZigBee Bridge to communicate with other devices. The device can work with other gateways supporting ZigBee 3.0 wireless protocol. Detailed information is in accordance with the final product. Pull out the battery insulation sheet >... - Page 9 2.Try to align the mark line on the magnet with that on the transmitter during installation. 3. Install them in the opening and closing area separately. <15mm Make sure the installation gap is less than 15mm when the door or the window is closed.
- Page 10 Operation instruction 1. Download APP eWeLink eWeLink 2. Add sub-devices Connect the Bridge before adding the sub-device ZBBridge Added:0 > No child device,please add. Access eWeLink APP, select the Bridge that you want to connect, and tap “Add” to add a sub-device. Then long press reset button on the device for 5s until the LED indicator flashes three times, which means the device has entered the pairing mode, and be patient...
-
Page 11: Specifications
SONOFF ZigBee Bridge supports connecting multiple sub-devices at the same time. ZBBridge Add Device Connecting Added:0 Keep the device close enough to the hub. No child device,please add. > Looking for device 3 devices Found Power the Bridge on, access the Bridge page in the eWeLink APP, and tap “Add”. -
Page 12: Product Introduction

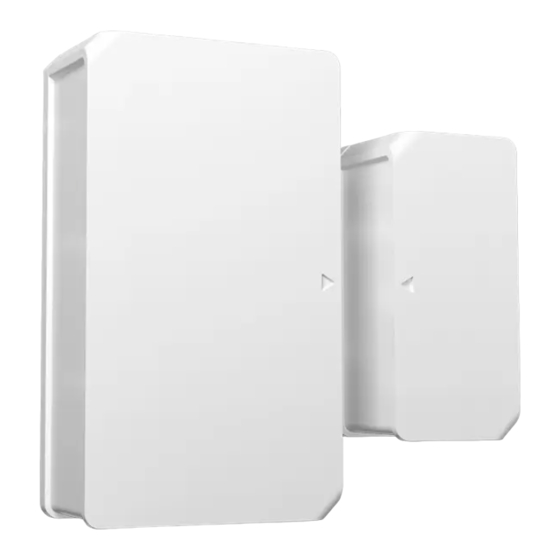

Align the mark lines LED indicator Reset button Features SNZB-04 is a ZigBee low-energy wireless door/ window sensor that makes you know the opening/ closing status of door and window by separating the magnet from the transmitter. Connect it with the Bridge and you can create a smart scene to trigger other devices. - Page 13 Application Door Window Note: ● Do not install outside the door/window. ● Do not install in the unstable position or in the place exposed to rain or moisture. ● Do not install near wiring or magnetic object. Delete sub-devices Long press the reset button on the sub-device for 5s until the LED indicator flashes three times.
- Page 14 FCC Statement FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
