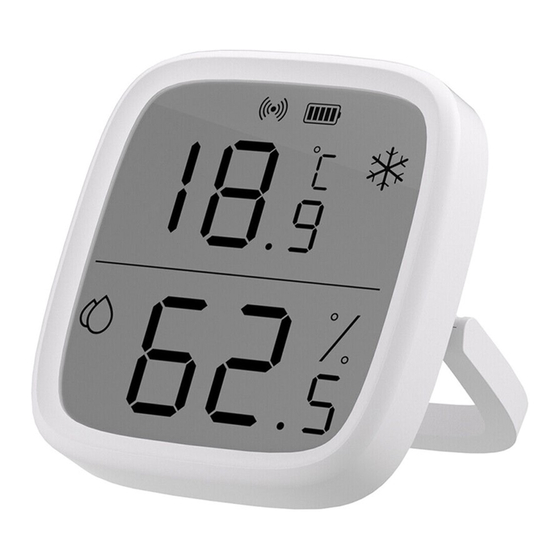

Sonoff SNZB-02D User Manual

Sonoff SNZB-02D User Manual

Zigbee lcd smart temperature humidity sensor
Hide thumbs Also See for SNZB-02D:

Advertisement

Quick Links

SNZB-02D
Zigbee LCD Smart
Temperature Humidity Sensor
·中
文 ----------1 - 5
· English ----------6 - 10
· Warning ----------11 - 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the SNZB-02D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sonoff SNZB-02D

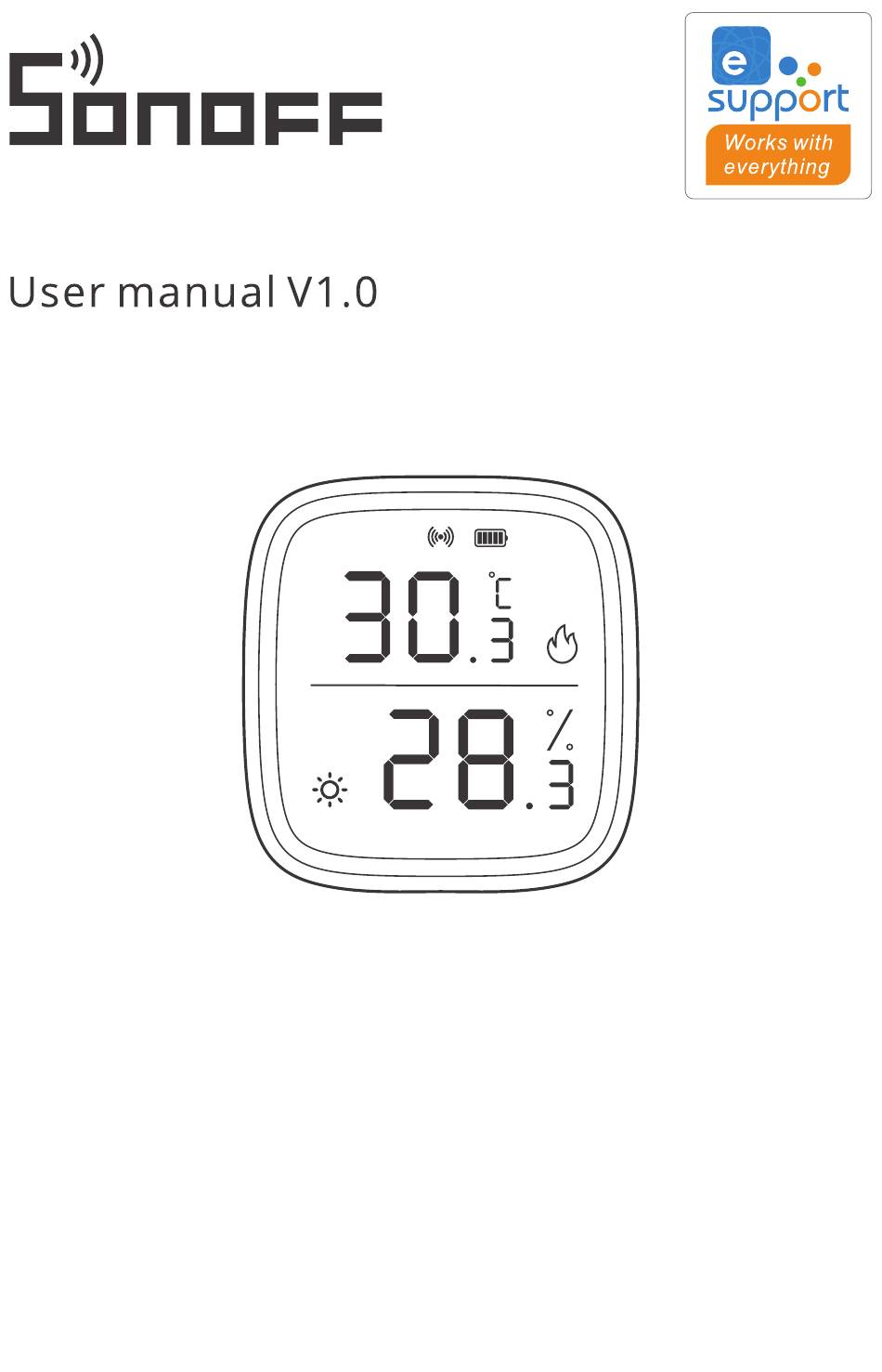

  • Page 1 SNZB-02D Zigbee LCD Smart Temperature Humidity Sensor ·中 文 ----------1 - 5 · English ----------6 - 10 · Warning ----------11 - 12...
  • Page 2 产品介绍 信号图标 电池电量 显示屏 支架 底座 按键 功能特点 一款带LCD屏, 兼具设备端查看实时温湿度及APP监控的智能温湿度传感器。 超高精确度获取最 准确的温湿度数据, 支持℃和℉单位切换、 历史数据存储及导出, 还有远程告警通知、 语音询问、 场景联动实现你的家庭自动化。 ℉ ℃ 高精度 APP监控 ℃ /℉单位切换 数据存储&导出 告警通知 语音询问...
  • Page 3 配对至SONOFF Zigbee网关 1. 下载易微联App 请前往应用商店、 Google Play Store或Apple App Store搜索"易微联"进行下载。 2. 设备通电 拔出电池绝缘片完成设备通电。 如设备为不带电池版本, 请安装电池 (CR2450) 给设备通电。 3. 添加 SONOFF Zigbee网关...
  • Page 4 4. 将设备添加至Zigbee网关 已添加设备: 0 暂无子设备, 请添加 添加 在eWeLink App Zigbee网关主界面, 点击 "添加" 子设备, 然后长按设备按钮5秒直至设备 Zigbee信号图标 呈闪烁状态, 此时设备进入Zigbee设备配对状态, 等待添加。 设备配对时效为30秒, 添加成功后Zigbee信号图标 为常亮状态。 如添加失败, 请将设备移近网关后 再重新添加。 有效距离验证 在选定的设备安装位置, 短按设备的配对按键, 设备屏幕上的信号图标 保持常亮, 表明该设 备和Zigbee网络下的设备 (路由设备或网关) 处于有效通讯距离。...
  • Page 5 产品参数 产品型号 SNZB-02D 供电 3V纽扣电池 x1 电池型号 CR2450 无线连接 Zigbee 3.0 工作温度 -5℃~40℃ 工作湿度 5%-95% RH, 无冷凝 LCD屏幕规格 2.8" 外壳材料 PC+LCD 产品规格 59.5x62.5x18.5mm 按键动作说明 动作 说明 双击 温度单位切换℃/℉ (出厂默认为℃) 长按5秒 恢复出厂设置, 重新进入Zigbee配网状态 默认舒适度 干燥 湿度≤40%RH 潮湿 湿度≥60%RH 寒冷 温度≤19℃/66.2℉ 炎热...
  • Page 6 设备安装 最大 3M 胶带 1. 桌面摆放 2. 配合底座安装 2-1. 底座磁吸到金属表面 2-2. 底座3M胶粘贴墙体 更换电池...
  • Page 7 Button Features SNZB-02D is a smart temperature and humidity sensor with LCD screen, allows you to see the real-time temperature and humidity on the screen and monitor the living conditions on the App, provides accurate measurements with ultra-high precision, ability to switch between ℃...
  • Page 8 2. Power on Pull out the battery insulation sheet to power the device on. If the device is the No battery version, please install the battery (CR2450) to power the device on. 3. Pair SONOFF Zigbee gateway to your eWeLink account...
  • Page 9 English 4. Add the device to Zigbee Bridge Tap "Add" on the main page of Zigbee Bridge on your eWeLink App, and long press the button on the device for 5s until the Zigbee signal icon flashes, now the device is entered the pairing mode and waiting to be added.
  • Page 10: Specifications

    English Specifications Model SNZB-02D 3V button cell x 1 Power supply Battery model CR2450 Wireless connection Zigbee 3.0 Working temperature -9.9℃~60℃ Working humidity 5%-95% RH, non-condensing LCD dimension 2.8" Casing material PC+LCD Product dimension 59.5x62.5x18.5mm Button action description Action Description Double-press Switch unit readings (factory default is ℃)
  • Page 11: Installation

    English Installation 3M adhesive tape 1. Place on the desktop 2. Install with base 2-1. Attach to the metal surface with the magnetic base 2-2. Stick on the wall with 3M adhesive base Battery replacement...
  • Page 12: Fcc Warning

    Warning “Do not ingest battery, Chemical Burn Hazard.” This product contains a coin / button cellbattery. lf the coin / button cell battery is swallowed, it can cause severeinternal burns in just 2 hours and can lead to death. Keep new and used batteries away from children.lf the battery compartment does not close securely, stop using the productand keep it away from children.
  • Page 13 Warning IC Warning This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 14 Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type SNZB-02D is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address: https://sonoff.tech/usermanuals Operation frequency Range: 2405-2480MHz(Zigbee), 2402-2480MHz(BLE)
