- Page 1 DUAL User manual V1.2...
-
Page 2: Product Introduction

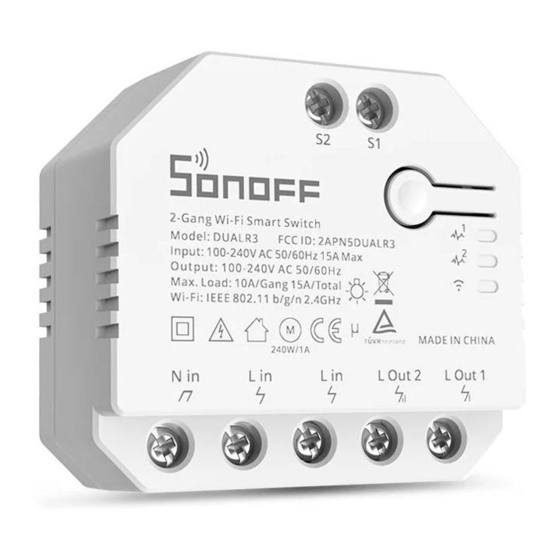

Product Introduction Pairing button S1 on/off LED indicator(Red) S2 on/off LED indicator(Red) Wi-Fi LED indicator(Blue) N In L In L In LOut2 LOut1 The device weight is less than 1 kg. The installation height of less than 2 m is recommended. - Page 3 2. Wiring instruction Do not pull the wire directly from the live wire to the S1/S2 external switch! Must from device. Motor mode: ① Momentary switch: Switch Switch N In L In L In LOut2 LOut1 Forward Reverse N In L In Connect to S1 or S2 for smart control of connected devices;...
- Page 4 Light fixture wiring instruction ①To enable dual relay control, S1 and S2 are required to connect the push button switch in the pulse mode or the rocker light switch in the edge mode: Switch Switch N In L In L In LOut2 LOut1 L Out 1...
- Page 5 ③Connect dry contact sensors in the following mode: External power supply Dry contact sensor External power supply Dry contact sensor N In L In L In LOut2 LOut1 L Out 1 L Out 2 N In L In Make sure the neutral wire and live wire connection is correct. The device still works normally if no a physical light switch is connected to S1/S2.
- Page 6 4. Power on N In L In L In LOut2 LOut1 After powering on, the device will enter the bluetooth pairing mode during the first use. The Wi-Fi LED indicator changes in a cycle of two short and one long flash and release. The device will exit the bluetooth pairing mode if not paired within 3mins.
-
Page 7: Specifications
Se ings WLAN Ple ase enter all the numbers beside s the QR code . WLAN Quick Pairing WIFI devices can be added in this mo SONOFF-DIY de(make sure the device is in pairing 设备ID 请输入设备id mode). Device ID Please enter device ID. -
Page 8: Working Mode
Wi-Fi LED indicator status instruction Status instruction LED indicator status Flashes (one long and two short) Bluetooth Pairing Mode Keeps on Device is connected successfully Flashes quickly Compatible Pairing Mode Flashes quickly once Unable to discover the router Flashes quickly twice Connect to the router but fail to connect to server Flashes quickly three times Upgrading... -
Page 9: Common Problems
Common Problems Fail to pair Wi-Fi devices with eWeLink APP 1. Make sure the device is in pairing mode. The device will automatically exit the pairing mode if not paired within 3mins. 2. Please turn on the location service on your mobile phone and give the permission. Before choosing the Wi-Fi network, the location service should be turned on and the permission is given.
