P/N 126622-01 Rev. L 10/2019
Ce manuel est disponible en francais, simplement
en faire la demande. Numéro de la pièce 126622-02.
P126622 01
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY
BUILT FIREPLACE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANS Z21.60, Z21.84 standards or for use with a vent-free gas log heater approved to ANS Z21.11.2 standard.
An INNOVATIVE HEARTH PRODUCTS, LLC hood must be installed when using a vent-free log heater (see Ac-
cessories, page 20).
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration of
the fireplace system, including but not limited to the fireplace, chimney components and accessories, may void the
warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.
PFS
C
REPORT NO. 10-078
SAVE THIS BOOK
NOTE: DIAGRAMS AND ILLUSTRATIONS THROUGHOUT THE MANUAL ARE NOT TO SCALE.
INSTALLATION AND OPERATION INSTRUCTIONS

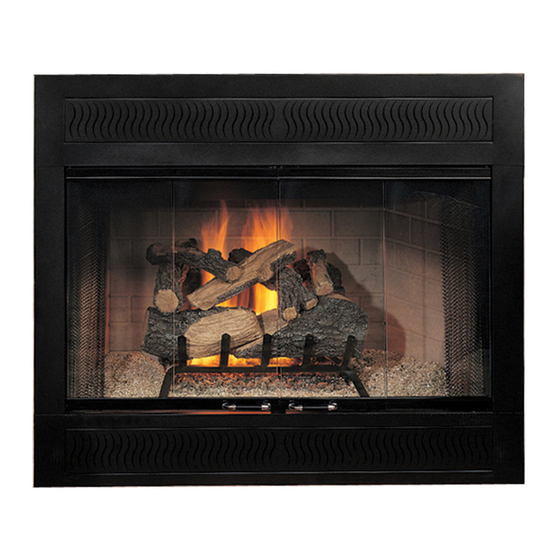

Superior® Pro Series Wood-Burning Fireplaces
®
US
WRT3042WS
WRT3042WSI
WRT3042WH
Installateur : Laissez cette notice avec l'appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
POUR LE CANADA: L'autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l'installation afin de déterminer la
nécessité d'obtenir un permis.
MODELS
WCT3042WS
WCT3042WSI
WCT3042WH
Advertisement
Table of Contents
Related Manuals for Superior Fireplaces Superior Pro Series
Summary of Contents for Superior Fireplaces Superior Pro Series
- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS Superior® Pro Series Wood-Burning Fireplaces MODELS P/N 126622-01 Rev. L 10/2019 Ce manuel est disponible en francais, simplement en faire la demande. Numéro de la pièce 126622-02. ® WRT3042WS WCT3042WS WRT3042WSI WCT3042WSI P126622 01 REPORT NO. 10-078 WRT3042WH WCT3042WH SAVE THIS BOOK...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Thank you for your purchase. We appreciate your business! Safety .....................2 Specifications .................4 Please carefully read and follow all instructions in this manual. Pay Fireplace Installation ..............5 special attention to all warnings and safety information. Venting Installation ................7 Following these safety, care, and operation instructions will help Optional Gas Line Installation ............13 ensure many years of dependable and enjoyable service from your... - Page 3 SAFETY Continued WARNING: CONTINUED OVERFIRING CAN PER- WARNING: BURNING IMPROPER FUEL (I.E. MANENTLY DAMAGE YOUR FIREPLACE SYSTEM. CHARCOAL) CAN RESULT IN CARBON MONOXIDE SOME EXAMPLES OF CONDITIONS THAT COULD POISONING, WHICH MAY LEAD TO DEATH! CAUSE OVERFIRING ARE: Carbon Monoxide Poisoning – Early signs of carbon monoxide poisoning resemble the flu with headaches, •...
-
Page 4: Specifications
SPECIFICATIONS PIPE 1" (26 mm) AIRSPACE TO COMBUSTIBLE MATERIAL GAS LINE KNOCK OUTS ELECTRICAL RIGHT SIDE NO COMBUSTIBLE STARTER OUTLET MATERIALS BELOW SECTION " TOP SPACERS (64 mm) NO COMBUSTIBLE 0" (0 mm) TO TOP SPACERS MATERIAL ON FACE " (172 mm) "... -
Page 5: Fireplace Installation
FIREPLACE INSTALLATION SELECTING LOCATION To determine safest and most efficient location for fireplace, you must take into consideration the following guidelines: 2 x 4 Header Turned on 1. Location must allow for proper clearances (see Figures 1 and 2). the Vertical 2. - Page 6 FIREPLACE INSTALLATION Continued *Note: Drawing Not To Scale Combustible WARNING: Hearth extension is to be installed Material " (312 mm) Ref. only as shown in Figure 3. Safe Zone For Projection of 6" (153 mm) Combustible Ref. 33° Materials Seal Gap Non Combustible Fireplace Front Materials Below...
-
Page 7: Venting Installation
FIREPLACE INSTALLATION Continued VENTING INSTALLATION FAN/BLOWER KIT ASSEMBLY (FOR CIRCULATING MODELS ONLY) OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F) Fan or blower kit is optional with this fireplace (for circulating mod- Installation of outside air kit should be performed during rough fram- els only). - Page 8 VENTING INSTALLATION Continued ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY WARNING: The opening in collar around chimney SYSTEM at top of fireplace must not be obstructed. Never use SS-8DM starter section must be installed first. blown insulation to fill chimney enclosure Each double wall chimney section consists of a galvanized outer pipe, a stainless steel inner flue pipe and a wire spacer.
- Page 9 VENTING INSTALLATION Continued 30E-8DM 30E-8DM Return Elbow Return Elbow 30E-8DM Return Elbow 30E-8DM 30E-8DM Offset Elbow 6' Max. (1.83 m) 6' Max. (1.83 m) Offset Elbow Ceiling Support Pipe 6' Max. (1.83 m) 30E-8DM 30E-8DM 12S-8DM Return Elbow Return Elbow 8 DM Pipe 6' Max.
- Page 10 VENTING INSTALLATION Continued FIRESTOP SPACERS (3600FS-8DM-1) OFFSET CHART WITH TRANSITION PIPE Firestop spacers are required at each point where chimney penetrates OFFSET RISE OFFSET/ TRANSITION CHIMNEY LENGTH a floor space. Their purpose is to establish and maintain required RETURN PIPE 12"...
- Page 11 VENTING INSTALLATION Continued PENETRATING ROOF Storm Collar Overlap To maintain a 1" clearance to pipe on a roof with a pitch, a rectangular Shingles Top opening must be cut. and Sides Only 1. Determine center point where pipe will penetrate the roof. Flashing 2.
- Page 12 VENTING INSTALLATION Continued RLT-8DM 10 FOOT RULE Level of Flue Attach Bracket All flue gas outlet chimney terminations must extend a minimum of Gas Outlet Tabs to Outer Pipe 3 feet in height above highest point where it passes through roof and (3 Places) Secure must be at least 2 feet above highest point of the roof that is within Flue Pipe of RLT-...
-
Page 13: Optional Gas Line Installation
OPTIONAL GAS LINE INSTALLATION A gas line or gas log lighter may be installed for the purpose of If you install a decorative gas appliance (vented gas log), decorative installing a vented or vent-free decorative gas appliance incorporat- gas appliance must comply with the Standard for Decorative Gas ing an automatic shutoff device and complying with the Standard Appliance for Installation in Solid Fuel Burning Fireplaces, ANSI for Decorative Gas Appliances for Installation in Vented Fireplaces,... -
Page 14: Operation And Maintenance
OPERATION AND MAINTENANCE GLASS DOORS Cleaning Glass Glass doors are optional with this fireplace. When fireplace is in Clean glass with any commercial glass cleaner or soap and water. operation, doors must be fully opened or fully closed position only Do not use any abrasive material to clean the glass. -
Page 15: Replacement Parts
REPLACEMENT PARTS IMPORTANT NOTICES - CANADA See Pages 16 to 18 for a complete replacement parts list. Use only IMPORTANT NOTICE parts supplied from the manufacturer. A manufactured shroud which has been approved by a Normally, all parts should be ordered through your IHP distributor national testing agency for use with this fireplace may or dealer. -
Page 16: Parts
PARTS WOOD BURNING FIREPLACE MODELS: MODEL NO. CATALOG NO. WRT3042WS F0665 WRT3042WSI F0666 WRT3042WH F0667 WCT3042WS F0668 WCT3042WSI F0669 WCT3042WH F0670 SuperiorFireplaces.us.com 126622-01_L... - Page 17 PARTS WOOD BURNING FIREPLACE MODELS This list contains replaceable parts used in your fireplace. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP. Use of non-approved parts can result in poor performance and safety hazards. WRT3042WS WCT3042WS WRT3042WSI...
-
Page 18: Accessories
PARTS Continued This list contains replaceable parts used in your fireplace. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP. Use of non-approved parts can result in poor performance and safety hazards. WRT3042WS (F0665) WRT3042WSI... - Page 19 ACCESSORIES Continued CAT NO. MODEL DESCRIPTION BI-FOLD GLASS DOORS F0984 BD42 42" Standard Bi-Fold Glass Door - Black finish DOUBLE WALL PIPE F0895 12-8DM 12" Section Double Wall Pipe Snap Lock F0896 18-8DM 18" Section Double Wall Pipe Snap Lock F0897 24-8DM 24"...
- Page 20 ACCESSORIES Continued ANTI-DRAFT SHIELD (Round Top Termination Only) F0927 ADS-8DM Anti-Draft Shield for Round Top Only MESH ROUND TOP TERMINATIONS F0916 RT-8DM Round Top with Mesh Screen F0888 RT-8HT Hi-Temp Round Top with Mesh Screen MESH ROUND TOP TERMINATIONS WITH SLIP SECTION F0917 RTT-8DM Round Top with Slip Section &...
-
Page 21: Draft Smoke Guidelines
APPENDIX A Draft Requirements take into account all variables within the installation and install the appliance in such a manner that satisfies the draft requirements of Your wood-burning appliance is dependent upon a properly func- the appliance. See Chimney Guidelines to assist you in selecting the tioning chimney for optimum performance. - Page 22 APPENDIX A Continued Smoking – Causes And Troubleshooting Location Recommended To reduce the likelihood of smoking when opening the door, open Marginal Location the combustion air control or damper before opening the door. Wind Direction Your appliance has been designed and tested to provide smoke free Tree operation.
-
Page 23: Warranty
Innovative Hearth Products Superior Brand Wood-Burning Fireplace ® 20 Year Limited Warranty THE WARRANTY Innovative Hearth Products ("IHP") 20 Year Limited Warranty warrants your Superior Brand wood burning fireplace ("Product") to be free from defects in materials and ® workmanship at the time of manufacture. The Product body, firebox and ceramic glass carry the 20 Year Limited Warranty. Ceramic glass carries the 20 Year Limited Warranty against thermal breakage only. - Page 24 SuperiorFireplaces.us.com Record the following important information about your fireplace: Fireplace model number Fireplace serial number Date fireplace was Installed Dealer name P126622 01 Innovative Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information.
