P/N 126628-01 Rev. J 01/2019
Ce manuel est disponible en francais, simplement
en faire la demande. Numéro de la pièce 126628-02.
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also con-
tains information that will enable you to obtain replacement parts or accessory items when needed. Keep it
with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY BUILT
FIREPLACE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard .
An IHP hood must be installed when using a vent-free log heater (see Accessories, page 20).
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration of
the fireplace system, including but not limited to the fireplace, chimney components and accessories, may void the
warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.
PFS
C
REPORT NO. 09-171
SAVE THIS BOOK
NOTE: DIAGRAMS AND ILLUSTRATIONS THROUGHOUT THE MANUAL ARE NOT TO SCALE.
INSTALLATION AND OPERATION
INSTRUCTIONS

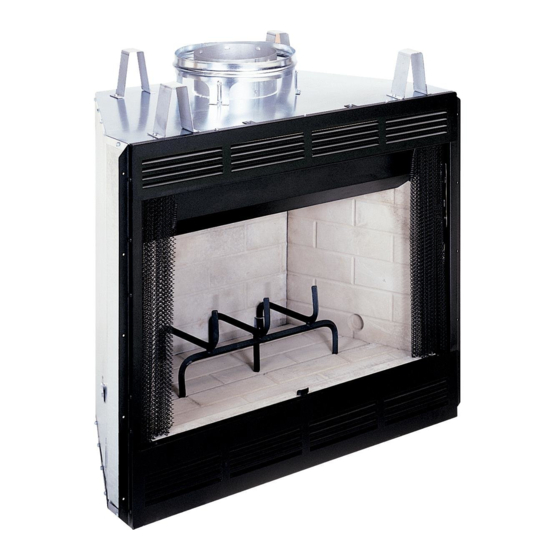

Wood-Burning Fireplace
®
US
WRT2036WS
WRT2036WSI
Installateur : Laissez cette notice avec l'appareil.
Consommateur : Conservez cette notice pour
consultation ultérieure.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
POUR LE CANADA: L'autorité compétente (comme
le service municipal du bâtiment, les pompiers,
etc.) doit être contacté avant l'installation afin de
déterminer la nécessité d'obtenir un permis.
MODELS
WCT2036WS
WCT2036WSI
P126628 01
installation.
Advertisement
Table of Contents
Related Manuals for Superior Fireplaces WRT2036WS
Summary of Contents for Superior Fireplaces WRT2036WS
- Page 1 MODELS P/N 126628-01 Rev. J 01/2019 ® Ce manuel est disponible en francais, simplement en faire la demande. Numéro de la pièce 126628-02. REPORT NO. 09-171 WRT2036WS WCT2036WS WRT2036WSI WCT2036WSI P126628 01 SAVE THIS BOOK This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also con- tains information that will enable you to obtain replacement parts or accessory items when needed.
-
Page 2: Table Of Contents
Thank you for your purchase. We appreciate your TABLE OF CONTENTS business! Safety .....................2 Specifications .................4 Please carefully read and follow all instructions in this manual. Pay Fireplace Installation ..............5 special attention to all warnings and safety information. Venting Installation ................7 Following these safety, care, and operation instructions will help Optional Gas Line Installation ............13 ensure many years of dependable and enjoyable service from your... - Page 3 SAFETY Continued WARNING: CONTINUED OVERFIRING CAN PER- WARNING: BURNING IMPROPER FUEL (I.E. MANENTLY DAMAGE YOUR FIREPLACE SYSTEM. CHARCOAL) CAN RESULT IN CARBON MONOXIDE SOME EXAMPLES OF CONDITIONS THAT COULD POISONING, WHICH MAY LEAD TO DEATH! CAUSE OVERFIRING ARE: Carbon Monoxide Poisoning – Early signs of carbon •...
-
Page 4: Specifications
SPECIFICATIONS 1" (26 mm) AIRSPACE TO COMBUSTIBLE 0" (0 mm) NO COMBUSTIBLE MATERIAL TO TOP MATERIAL ON FACE SPACERS AIR KIT GAS LINE KNOCK OUT KNOCK OUT COMBUSTIBLE WALL BOARD " (19 mm) AIR SPACE " BACK AND (353 mm) "... -
Page 5: Fireplace Installation
FIREPLACE INSTALLATION SELECTING LOCATION To determine safest and most efficient location for fireplace, you must take into consideration the following guidelines: 1. Location must allow for proper clearances (see Figures 1 and 2). 2. Consider a location where fireplace will not be affected by drafts, air conditioning ducts, windows or doors. - Page 6 FIREPLACE INSTALLATION Continued MANTELS WARNING: Hearth extension is to be installed A mantel may be installed if desired (see Figure 4). Woodwork such only as shown in Figure 3. as wood trims, mantels or any other combustible material projecting from front face must not be placed within 9" of fireplace opening (and within 6"...
-
Page 7: Venting Installation
FIREPLACE INSTALLATION Continued VENTING INSTALLATION FAN/BLOWER KIT ASSEMBLY OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F) Fan or blower kit is optional with this fireplace (for circulating models Installation of outside air kit should be performed during rough fram- only). Use of blowers or fans other than those manufactured by IHP ing of fireplace due to the nature of it's location. - Page 8 VENTING INSTALLATION Continued ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY WARNING: The opening in collar around chimney SYSTEM at top of fireplace must not be obstructed. Never use Each double wall chimney section consists of a galvanized outer blown insulation to fill chimney enclosure pipe, a stainless steel inner flue pipe and a wire spacer.
- Page 9 VENTING INSTALLATION Continued Return Return Elbow Elbow Return Elbow Offset Offset Elbow Elbow 6' Max.(1.83 m) 6' Max.(1.83 m) Ceiling Return Support Pipe 12S-8DM Elbow 6' Max.(1.83 m) 6' Max.(1.83 m) Return Offset Offset Elbow Offset Elbow Elbow 6' Max.(1.83 m) 6' Max.(1.83 m) Elbow Figure 9 - Typical Offset Installation...
- Page 10 VENTING INSTALLATION Continued If area above is a living space, install OFFSET RISE CHIMNEY LENGTH firestop below framed hole. 48" 36" 24" 18" 12" " " ELBOW SET ONLY 9" " " 31" 15" " " " 20" " " "...
- Page 11 VENTING INSTALLATION Continued Storm Collar Installation (SC1) Minimum Measurements Place storm collar over pipe and slide down until it is snug against " open edge of flashing (see Figure 16). Use SC1 for all round termina- (36.5 cm) 30" 1" tions.
- Page 12 VENTING INSTALLATION Continued CHASE INSTALLATIONS (3.05 m) Level of Flue Gas Outlet Instructions for chase installations are included with chase style ter- mination chosen. In a multiple chase installation, be sure to provide (3.05 m) adequate distance between terminations to prevent smoke spillage from one termination to another.
-
Page 13: Optional Gas Line Installation
OPTIONAL GAS LINE INSTALLATION A gas line or gas log lighter may be installed for the purpose of If you install a decorative gas appliance (vented gas log), decorative installing a vented or vent-free decorative gas appliance incorporat- gas appliance must comply with the Standard for Decorative Gas ing an automatic shutoff device and complying with the Standard Appliance for Installation in Solid Fuel Burning Fireplaces, ANSI for Decorative Gas Appliances for Installation in Vented Fireplaces,... -
Page 14: Operation And Maintenance
OPERATION AND MAINTENANCE GLASS DOORS Cleaning Glass Glass doors are optional with this fireplace. When fireplace is in Clean glass with any commercial glass cleaner or soap and water. Do operation, doors must be fully opened or fully closed position only not use any abrasive material to clean the glass. -
Page 15: Replacement Parts
OPERATION AND MAINTENANCE Continued IMPORTANT NOTICES - CANADA LOCATING ACCESS COVER PLATE IMPORTANT NOTICE Sheet metal cover plates located underneath front hearth refractory may A manufactured shroud which has been approved by a have shifted or moved out of place while fireplace was in transit. These national testing agency for use with this fireplace may cover plates must be kept in the proper location prior to using the fireplace be used if installed in accordance with the instructions... -
Page 16: Parts
PARTS WOOD BURNING FIREPLACE MODELS WRT2036WS, WRT2036WSI, WCT2036WS, WCT2036WSI MODEL CAT NO. WRT2036WS F0683 WRT2036WSI F0684 WCT2036WS F0685 WCT2036WSI F0686 SuperiorFireplaces.us.com 126628-01_J... - Page 17 PARTS WOOD BURNING FIREPLACE MODELS WRT2036WS, WRT2036WSI, WCT2036WS, WCT2036WSI This list contains replaceable parts used in your fireplace. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP. Use of non-approved parts can result in poor performance and safety hazards.
-
Page 18: Accessories
This list contains replaceable parts used in your fireplace. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not ap- proved by IHP. Use of non-approved parts can result in poor performance and safety hazards. WRT2036WS WRT2036WSI WCT2036WS CAT. WCT2036WSI NO. - Page 19 ACCESSORIES Continued CAT NO. MODEL DESCRIPTION BI-FOLD GLASS DOORS F0972 BDB36 36" - Standard Black Finish (Bungalow Only) F0973 BDB36B 36" - Standard Brushed Brass Finish (Bungalow Only) F0974 BDB36P 36" - Standard Platinum Finish (Bungalow Only) DOUBLE WALL PIPE F0895 12-8DM 12"...
- Page 20 ACCESSORIES Continued ANTI-DRAFT SHIELD (Round Top Termination Only) F0927 ADS-8DM Anti-Draft Shield for Round Top Only MESH ROUND TOP TERMINATIONS F0916 RT-8DM Round Top with Mesh Screen F0888 RT-8HT Hi-Temp Round Top with Mesh Screen MESH ROUND TOP TERMINATIONS WITH SLIP SECTION F0917 RTT-8DM Round Top with Slip Section &...
-
Page 21: Draft Smoke Guidelines
APPENDIX A Draft Requirements take into account all variables within the installation and install the appliance in such a manner that satisfies the draft requirements of Your wood-burning appliance is dependent upon a properly func- the appliance. See Chimney Guidelines to assist you in selecting the tioning chimney for optimum performance. - Page 22 APPENDIX A Continued Smoking – Causes And Troubleshooting Location Recommended To reduce the likelihood of smoking when opening the door, open Marginal Location the combustion air control or damper before opening the door. Wind Direction Your appliance has been designed and tested to provide smoke free Tree operation.
-
Page 23: Warranty
Innovative Hearth Products Superior Brand Wood-Burning Fireplace ® 20 Year Limited Warranty THE WARRANTY Innovative Hearth Products ("IHP") 20 Year Limited Warranty warrants your Superior Brand wood burning fireplace ("Product") to be free from defects in materials and ® workmanship at the time of manufacture. The Product body, firebox and ceramic glass carry the 20 Year Limited Warranty. Ceramic glass carries the 20 Year Limited Warranty against thermal breakage only. - Page 24 SuperiorFireplaces.us.com Record the following important information about your fireplace: Fireplace model number Fireplace serial number Date fireplace was Installed Dealer name P126628 01 Innovative Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information.
