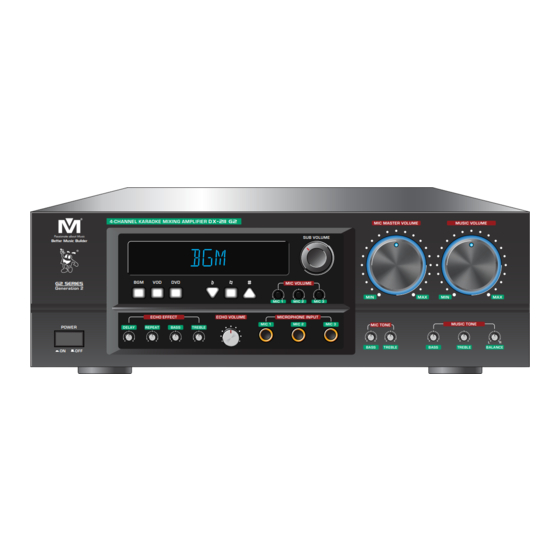

4-CHANNEL KARAOKE MIXING AMPLIFIER DX-211 G2
Passionate about Music
Better Music Builder
BGM
G2 SERIES
Generation 2
POWER
DELAY
ON
OFF
VOD
DVD
ECHO EFFECT
ECHO VOLUME
REPEAT
BASS
TREBLE
®
OWNER'S MANUAL
PROFESSIONAL MIXING AMPLIFIER
DX-211 G2
G2 SERIES
Generation 2
SUB VOLUME
MIC VOLUME
MIN
MIC 1
MIC 2
MIC 3
MICROPHONE INPUT
MIC 1
MIC 2
MIC 3
MIC TONE
BASS
Passionate about Music
It's what we do!
110421
MIC MASTER VOLUME
MUSIC VOLUME
MAX
MIN
MUSIC TONE
TREBLE
BASS
TREBLE
Thank you for purchasing this unit. To
make full and effective use of this unit,
please read this Owner's Manual
carefully before operating it. Please
retain this manual for future reference.
w w w. B e t t e rM usi c B ui l d e r.c o m
MAX
L
R
BALANCE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Better Music Builder G2 Series
Summary of Contents for Better Music Builder G2 Series
- Page 1 Better Music Builder .com ® Passionate about Music It’s what we do! OWNER'S MANUAL ® Better Music Builder is a leader in the Audio and Karaoke equipment industry. We are committed to offering you high quality audio products. Unlike any others PROFESSIONAL MIXING AMPLIFIER brand, we deliver the best cost and value to you directly.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................Intro SYSTEM FEATURES ............................Features SAFETY INSTRUCTIONS ..........................Safety PACKAGE ACCESSORIES ..........................Package SPEAKER CONNECTION METHODS AND INFORMATION ..............Connection SYSTEM APPLICATIONS ........................... Applications • Line Pre-out Extension for Large Format Sound System ................• 4-Channel Mixing Amplifier for Commercial Use .................. -
Page 3: Introduction
4-CHANNEL KARAOKE MIXING AMPLIFIER DX-211 G2 MIC MASTER VOLUME MUSIC VOLUME DX-211 G2 PACKAGE CONTENTS: Passionate about Music SUB VOLUME Better Music Builder • Amplifier: 1 pc G2 SERIES MIC VOLUME Generation 2 • Remote Control: 1 pc MIC 1... -
Page 4: Safety Instructions
4-CHANNEL KARAOKE MIXING AMPLIFIER DX-211 G2 MIC MASTER VOLUME MUSIC VOLUME Passionate about Music SUB VOLUME Better Music Builder product. G2 SERIES MIC VOLUME Generation 2 MIC 1... - Page 5 Do not place the electronic equipment onto the unstable 4-CHANNEL KARAOKE MIXING AMPLIFIER DX-211 G2 MIC MASTER VOLUME MUSIC VOLUME Passionate about Music Better Music Builder SUB VOLUME table or stand. It is because it would fall easily from the G2 SERIES MIC VOLUME...
-
Page 6: Package Accessories
4-CHANNEL KARAOKE MIXING AMPLIFIER DX-211 G2 MIC MASTER VOLUME MUSIC VOLUME Passionate about Music SUB VOLUME Better Music Builder included. They are sold separately. G2 SERIES MIC VOLUME Generation 2 MIC 1... -
Page 7: Speaker Connection Methods And Information
SPEAKER CONNECTION METHODS AND INFORMATION Connection CONNECTOR INFORMATION METHODS OF SPEAKER CONNECTION 1. Wire Insert Type (Poor Connection) Balanced XLR Connectors √ E R S S P E A K Hot (+) Pin 2 Cold (-) Pin 3 Ring Shield (Ground) Pin 1 Shield SHIELD... -
Page 8: System Applications
SYSTEM APPLICATIONS Applications LINE PRE-OUT EXTENSION FOR LARGE FORMAT SOUND SYSTEM DX-211 G2 is an excellent professional amplifier with power DX-211 G2 REAR VIEW output of 260 watts. It’s perfect for karaoke and DJ. Using MODEL NO.: DX-211 G2 RISK OF ELECTRIC SHOCK CALIFORNIA, UNITED STATES OF AMERICA DO NOT OPEN E-mail: sales@bettermusicbuilder.com... -
Page 9: 4-Channel Mixing Amplifier For Commercial Use
4-CHANNEL MIXING AMPLIFIER FOR COMMERCIAL USE CS-612 G3 DFS-206 ® CS-612 G3 DFS-206 MIXING AMPLIFIER DX-211 G2 N CE IF IE E IN 4 -C us ic ld er B ui te r B et HARD DISK DRIVE R IE ti o R EP D EL... -
Page 10: Connecting The Main Speakers
CONNECTING THE MAIN SPEAKERS DX-211 G2 is capable of driving four main speakers, which of music and vocal is important to produce quality sound for are grouped in Group A and Group B. We recommend singing. Therefore, the audience can feel different effects from using different size speakers for Group A (10-inch woofer or Group A and Group B speakers. -
Page 11: Connecting The Audio Input Source
CONNECTING THE AUDIO INPUT SOURCE Before connecting the source (i.e. BGM [1], VOD [2], DVD management tools controlled by a computer. VOD is [3]), turn off power for all devices to prevent damage to the capable of handling all the accounting management includes equipment. -
Page 14: Rear Panel
REAR PANEL: AUDIO INPUT LEVEL: Controls the audio signal MAIN RIGHT SPEAKER OUTPUT TERMINAL: Dedicated sensitivity. It acts as a volume limiter. Group-A & Group-B main right channel powered output. MIC INPUT LEVEL: Controls microphone signal sensitivity. MAIN LEFT SPEAKER OUTPUT TERMINAL: Dedicated It acts as a volume limiter. -
Page 15: Remote Control
REMOTE CONTROL: 2 inches/50 mm MUTE 5.75 inches/150 mm MUSIC VOLUME INSERTING BATTERIES Open the battery compartment cover on the back of the remote control unit. The cover should open easily if you DX-211 G2 press and slide it in the direction of the arrow. Insert two Remote Control Unit AAA batteries as shown and slide the cover back on. -
Page 16: Operation
OPERATION Operating FRONT PANEL OPERATION ADJUSTING THE MUSIC TONE MICROPHONE INPUT There are three knobs under MUSIC TONE the MUSIC TONE: BASS, There are three microphone TREBLE and BALANCE. MICROPHONE INPUT inputs (1/4” slot) on the BASS TREBLE BALANCE MIC 1 MIC 2 MIC 3 front panel. -
Page 17: Physical Dimensions
CNANNEL-A DISPLAY CNANNEL-B DISPLAY VOLUME ANTENA-B 4-CHANNEL KARAOKE MIXING AMPLIFIER DX-211 G2 MIC MASTER VOLUME MUSIC VOLUME Passionate about Music SUB VOLUME Better Music Builder G2 SERIES MIC VOLUME Generation 2 MIC 1 MIC 2 MIC 3 ECHO EFFECT ECHO VOLUME... -
Page 18: Troubleshooting
TROUBLESHOOTING Troubleshooting 1. MUSIC VOLUME IS TOO LOW 8. VIDEO IS FLICKERING CAUSE: the music volume limiter is set too low. REMEDY: REMEDY: adjust to a higher “Max Music Volume.” Check to see if the AV cable is damaged or not. ... - Page 19 13. REMOTE CONTROL IS NOT WORKING 16. NOISE AND DISTORTION When humming noise or displeasing sound appears, you 3.DVD 2.VOD 1.BGM SUBWOOFER PREAMP can replace the supplied power cord with an AC power cord with a magnetic device as shown in the figure below. 3 prong to 2 prong adaptor AUDIO INPUT TERMINAL LINE OUT...
-
Page 20: Warranty
WARRANTY Warranty ONE-YEAR LIMITED WARRANTY FOR HOME USE ADDITIONAL NOTES: EQUIPMENT 1. Limited warranty for home use equipment is only valid in Our one-year warranty covers both parts and labors. The North America. warranty becomes effective from the date of your purchase 2. -
Page 21: Agency Regulatory Notices
AGENCY REGULATORY NOTICES Notices FEDERAL COMMUNICATIONS COMMISSION NOTICE your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a These limits are designed to provide reasonable protection manner that protects human health and the environment. For against harmful interference in a residential installation. -
Page 22: Final Words To User
Final Words Contact Us MAILING ADDRESS The engineering team of Better Music Builder has many years of experience in audio equipment design. The team BE T TER M USI C BU I LD ER constantly develops new audio technologies, designs... - Page 23 MAINTENANCE NOTE...
- Page 24 Owner's Manual carefully before operating it. Please retain this manual for future reference. 367161209500 Printed on 100% Recycled Paper Code: 20161206 Comments E-mail to sales@bettermusicbuilder.com Copyright © 2017 Better Music Builder. All rights reserved. Legal trademark.
