OWNER'S MANUAL
DYNAMIC FUSION AMPLIFIER

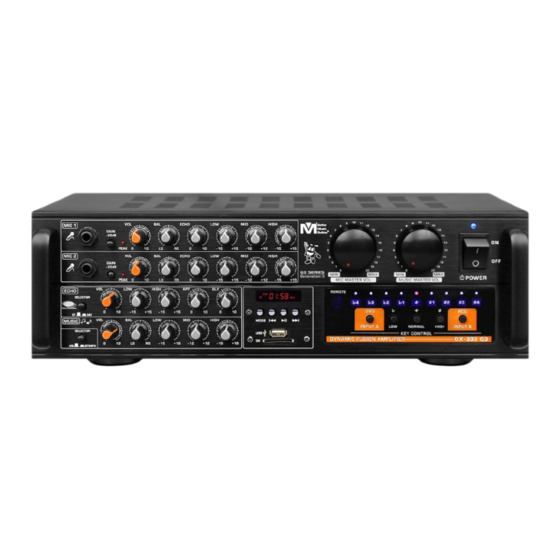

DX-333 G3
G3 SERIES
Generation 3
10
HIGH
9
11
12
8
7
6
5
+12
–15
+15
4
HIGH
3
2
1
0
20
MIN
MAX
+12
–15
+15
MIC MASTER VOL
REMOTE
0 1:58
USB
MP3
4
DVD
INPUT A
USB
DYNAMIC FUSION AMPLIFIER
Passionate about Music
It's what we do!
110421
10
9
11
12
8
13
13
7
14
14
6
15
5
15
16
4
16
17
3
17
18
2
18
19
1
19
0
20
MIN
MAX
P O W ER
MUSIC MASTER VOL
3
2
1
1
2
3
4
KOD
LOW
NORMAL
HIGH
INPUT B
KEY CONTROL
DX-333 G3
Thank you for purchasing this unit. To
make full and effective use of this unit,
please read this Owner's Manual
carefully before operating it. Please
retain this manual for future reference.
w w w. B e t t e rM usi c B ui l d e r.c o m
ON
O F F
Advertisement
Table of Contents
Related Manuals for Better Music Builder G3 Series
Summary of Contents for Better Music Builder G3 Series
- Page 1 Better Music Builder .com ® Passionate about Music It’s what we do! OWNER'S MANUAL ® Better Music Builder is a leader in the Audio and Karaoke equipment industry. We are committed to offering you high quality audio products. Unlike any others DYNAMIC FUSION AMPLIFIER brand, we deliver the best cost and value to you directly.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................Intro SYSTEM FEATURES ............................Features SAFETY INSTRUCTIONS ..........................Safety PACKAGE ACCESSORIES ..........................Package SPEAKER CONNECTION METHODS AND INFORMATION ..............Connection SYSTEM APPLICATIONS ........................... Applications • Line Pre-out Extension for Large Format Sound System ................• Connecting the Whole System for Large Format .................. -
Page 3: Introduction
A voltage selector is also added so users can bring the amplifier across continents - talk about portability. Better Music Builder is simply the best solution for home and professional karaoke performance! DX-333 G3 Front View DX-333 G3 PACKAGE CONTENTS: •... -
Page 4: Safety Instructions
A. The power-supply cord or the plug has been SAFETY INSTRUCTIONS damaged; or Safety B. Objects have fallen, or liquid has spilled into this Please visit our website at BetterMusicBuilder.com for the most product; or updated information, corrections on errors and changes in this manual. -
Page 6: Package Accessories
Do not place the electronic equipment near heat sources PACKAGE ACCESSORIES such as stoves, radiators and heaters, etc. Placing the Package electronic equipment too near to these heat sources would The package comes with (1) amplifier, (1) owner’s manual, result in damaging the equipment and causing fire. (1) warranty &... -
Page 7: Speaker Connection Methods And Information
SPEAKER CONNECTION METHODS AND INFORMATION Connection CONNECTOR INFORMATION METHODS OF SPEAKER CONNECTION 1. Wire Insert Type (Poor Connection) Balanced XLR Connectors √ √ E R S S P E A K Hot (+) Pin 2 Cold (-) Pin 3 Ring Shield (Ground) Pin 1 Shield... -
Page 8: System Applications
SYSTEM APPLICATIONS Applications LINE OUTPUT EXTENSION FOR LARGE FORMAT SOUND SYSTEM DX-333 G3 is an excellent professional amplifier with power output of 700 watts. REAR MICROPHONE INPUT BLUETOOTH ANTENNA Don’t take off the “jumpers” when VOLTAGE SELECTOR MAIN SPEAKERS not using the jacks. Audio will be VOLUME RESET disabled when “jumpers”... -
Page 9: Connecting The Whole System For Large Format
CONNECTING THE WHOLE SYSTEM FOR LARGE FORMAT AMPLIFIER DX-333 G3 SOURCE KOD (KARAOKE ON DEMAND) DVD PLAYER VIDEO SD CARD READER 9 :4 io rit & T in m te rta t up le ss ct io C on oj ec M ai le ss o So... -
Page 10: Multimedia Expansion Bay - Mp3 Source Input
MULTIMEDIA EXPANSION BAY – MP3 SOURCE INPUT Multimedia Expansion Bay provides 0 1:58 easy access to MP3 files in USB and SD connection. You can find the ports on the front panel. Note that only one port can be used at once. USB FLASH DRIVE MODE SD CARD READER... -
Page 11: Connecting Bluetooth
CONNECTING BLUETOOTH 1. Ensure Bluetooth is turned “ON” in your mobile device. 2. With the DX-333 G3 powered “ON”, search for available AT&T bluetooth networks from your mobile device. The amplifier will Calendar Contact Movies YouTube iTunes appear in the Bluetooth network list as “BT SPEAKER”. Calculator Camera Recorder... -
Page 12: Connecting The Audio Output
CONNECTING THE AUDIO OUTPUT AUDIO AUDIO OUTPUT AUDIO INPUT AUDIO INPUT EFFECT EFFECT RECORDER AUDIO RECORD LINE INPUT INPUT OUTPUT OUTPUT POWER ® -3dB CHANNEL 2 -3dB CHANNEL 1 -12dB -12dB ® 3-CHANNEL -32dB -32dB POWER AMPLIFIER Power Power 2-CHANNEL POWER AMPLIFIER CONNECTING THE EQUALIZER EQUALIZER EFFECT... - Page 14 UHF WIRELESS SYSTEM VM-52U G2 UHF WIRELESS SYSTEM VM-52U G2...
-
Page 15: Controls And Functions
CONTROLS AND FUNCTIONS Amplifier REMOTE CONTROL: 2 inches/50 mm 5.75 inches/150 mm MIC MASTER VOLUME NATURAL HIGH INPUT MUSIC VOLUME CHANGING BATTERIES Open the battery compartment cover on the back of the remote control unit. The cover should open easily if you press and slide it in the direction of the arrow. -
Page 16: Front Panel
CONTROLS AND FUNCTIONS Amplifier FRONT PANEL (TOP): MIC. 2 INPUT (¼ inch PORT) MIC. LOW CONTROL This port is for microphone input 2. Adjusts the microphone low frequency. MIC. MIDDLE CONTROL MIC. 1 INPUT (¼ inch PORT) Adjusts the microphone middle frequency. This port is for microphone input 1. - Page 17 FRONT PANEL (BOTTOM): DVD/KOD OR BLUETOOTH/MP3 SELECTOR ECHO REPEAT CONTROL Adjusts the echo repeat of the echo effect. STEREO OR MONO SELECTOR MUSIC HIGH CONTROL Adjusts echo to stereo or mono. Adjusts the high frequency. MUSIC VOLUME CONTROL ECHO DELAY CONTROL Adjusts the music volume level.
-
Page 18: Rear Panel
REAR PANEL: VOLTAGE SELECTOR MAIN SPEAKER OUTPUT TERMINAL Select 110V for USA & Canada and 220V for Asia and Dedicated main speaker output. Europe. LOW NOISE SMART COOLING FAN BLUETOOTH ANTENNA AUDIO RECORDER OUTPUT TERMINAL VOLUME RESET LINE AUDIO OUTPUT Automatic zero volume reset. -
Page 19: Operation
OPERATION Operating FRONT PANEL OPERATION ADJUSTING THE MUSIC VOLUME This knob controls the volume MUSIC MASTER VOL BALANCING THE MICROPHONE LEVELS for MUSIC. Slowly turn the knob clockwise to increase and counter-clockwise to decrease ECHO HIGH MIC 1 the music volume. GAIN –20dB PEAK... -
Page 20: Physical Dimensions
PHYSICAL DIMENSIONS SPECIFICATIONS Dimensions Spec POWER PEAK: 700W @8ohm; 960W @4ohm NET WEIGHT 25.6 Lbs / 11.6 Kg OUTPUT RMS: 300W @8ohm; 400W @4ohm SHIPPING WEIGHT 27.6 Lbs / 12.5 Kg T.H.D. 0.5% DIMENSIONS (WxHxD) 17x5x12.6 in / 43×13×32 cm FREQUENCY 20Hz~20KHz +/-1dB RESPONSE... -
Page 21: Troubleshooting
TROUBLESHOOTING Troubleshooting 7. HUMMING NOISE 1. NO SOUND FROM SELECTED AUDIO SOURCE CAUSE: REAR MICROPHONE INPUT Input selector is set incorrectly. BLUETOOTH ANTENNA Don’t take off the “jumpers” when VOLTAGE SELECTOR MAIN SPEAKERS not using the jacks. Audio will be VOLUME RESET disabled when “jumpers”... - Page 22 10. NOISE AND DISTORTION When humming noise or displeasing sound occurs, replace the supplied power cord with an AC power cord with a magnetic device as shown in the figure below. 3 prong to 2 prong adaptor 110V~120V FIGURE 1 Q u a li t y Po w e r C o rd: 105°...
-
Page 23: Warranty
WARRANTY Warranty ONE-YEAR LIMITED WARRANTY FOR HOME USE ADDITIONAL NOTES: EQUIPMENT 1. Limited warranty for home use equipment is only valid in Our one-year warranty covers both parts and labors. The North America. warranty becomes effective from the date of your purchase 2. -
Page 24: Agency Regulatory Notices
AGENCY REGULATORY NOTICES Notices FEDERAL COMMUNICATIONS COMMISSION NOTICE your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a These limits are designed to provide reasonable protection manner that protects human health and the environment. For against harmful interference in a residential installation. -
Page 25: Final Words To User
Final Words Contact Us MAILING ADDRESS The engineering team of Better Music Builder has many years of experience in audio equipment design. The team B E T TER M USI C BU I L D ER constantly develops new audio technologies, designs... - Page 26 MAINTENANCE NOTE...
- Page 27 MAINTENANCE NOTE...
- Page 28 Owner's Manual carefully before operating it. Please retain this manual for future reference. 395171108000 Printed on 100% Recycled Paper Code: 20171220 Comments E-mail to sales@bettermusicbuilder.com Copyright © 2018 Better Music Builder. All rights reserved. Legal trademark.
