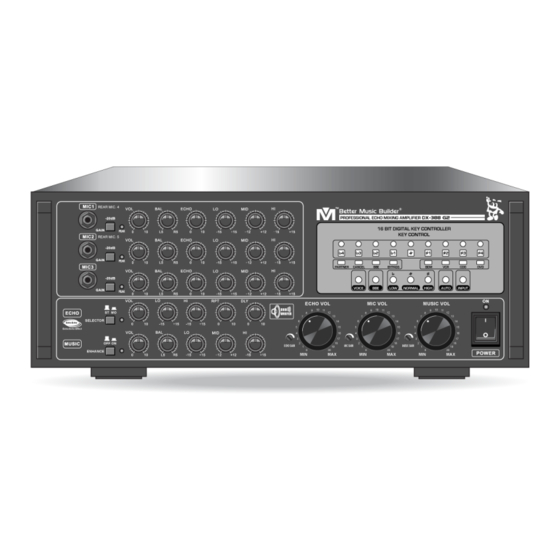

Better Music Builder DX-388 G2 Quick Start Manual

Passionate about Music
www.BetterMusicBuilder.com

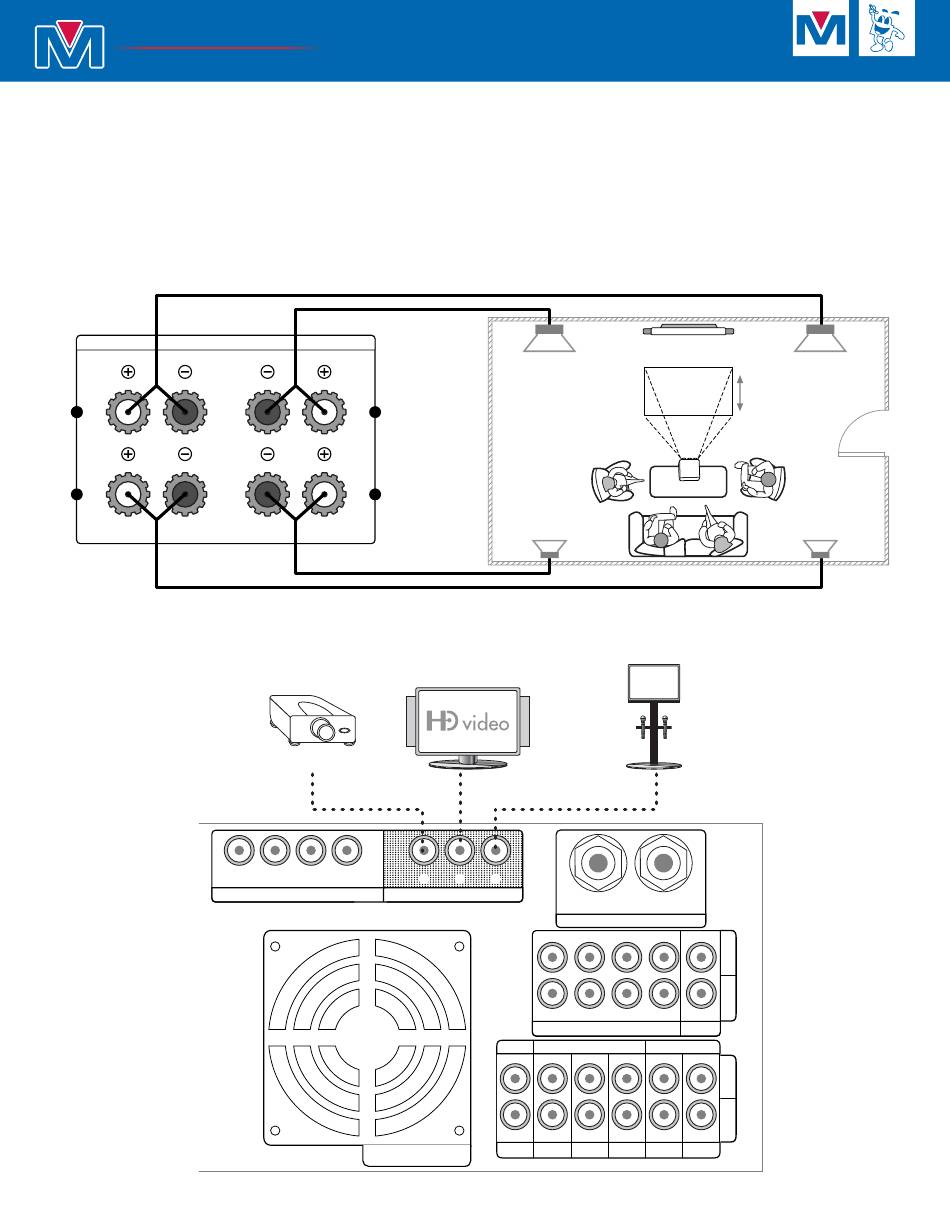

HOW TO CONNECT SPEAKER

DX-388 G2 is capable of driving four main speakers, which are grouped in Group A and Group B. We recommend
you using different size of speakers for Group A (10-inch woofer or bigger) and Group B (6-inch woofer). Under this
arrangement, Group A speaker can produce greater bass music output while Group B speaker can produce clear
vocal. The mixing of music and vocal is important to produce quality sound for singing. Therefore, the audience can
feel different effects from Group A and Group B speakers. You can also adjust the vocal on both speakers, or you
can adjust the vocal in either speaker by adjusting the balance.
GROUP-A
MAIN SPEAKERS
RIGHT
GROUP
A A
A
GROUP
B
B
GROUP-B

HOW TO CONNECT VIDEO MONITOR

Video Out: 1Vp-p/75 ohms
DVD
ww w.BetterMusicBuil der.com
DX-388 G2
LEFT
A
B
VIDEO PROJECTOR
RCA VIDEO OUT
VCR CDG BGM 1
VIDEO INPUT VIDEO OUTPUT
Fan turns on automatically when
the temperature reaches 50°F
© 2008 BMB :: Better Music Builder. All rights reserved. Legal trademark.
MIXING AMPLIFIER
MAIN LEFT SPEAKER
GROUP A
REAR LEFT SPEAKER
GROUP B
RCA VIDEO OUT
2 3
MIC 4
Front MIC 1
REAR MIC. INPUT
DVD VCR CDG
AUDIO INPUT
SCORING OUTPUT
HIGH MUSIC
LOW MIXING
MIC/VOCAL SUB LINE REC
1
We build value!
PLASMA TV
or
MAIN RIGHT SPEAKER
GROUP A
ELECTRONIC
SCREEN
REAR RIGHT SPEAKER
GROUP B
13" KARAOKE
VIDEO MONITOR
MIC 5
Front MIC 2
L
R
BGM BYPASS
AUDIO OUT
PRE
L
R
INPUT OUTPUT
