  • Page 1 Better Music Builder .com ® Passionate about Music It’s what we do! OWNER'S MANUAL ® Better Music Builder is a leader in the Audio and Karaoke equipment industry. We are committed to offering you high quality audio products. Unlike any others DYNAMIC FUSION AMPLIFIER brand, we deliver the best cost and value to you directly.

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ..............................Intro SYSTEM FEATURES ............................Features SAFETY INSTRUCTIONS ..........................Safety PACKAGE ACCESSORIES ..........................Package SPEAKER CONNECTION METHODS AND INFORMATION ..............Connection SYSTEM APPLICATIONS ........................... Applications • Line Pre-out Extension for Large Format Sound System ................• Connecting the Whole System for Large Format ..................

  • Page 3: Introduction

    • Music Volume/Balance/Low/Mid/High Control convenient Volume Reset function allows user to choose a • (4) ¼” Microphone Inputs preset music volume. The DX-333 G2 is equipped with a • (2) RCA Audio Inputs standard built-in Smart Fan that automatically activates when •...

  • Page 4: Safety Instructions

    12. Damage Requiring Service: This product should be Extra Echo Extra Echo Effect –15 –15 MUSIC HIGH MODE NORMAL HIGH INPUT A INPUT B SELECTOR KEY CONTROL DX-333 G2 DYNAMIC FUSION AMPLIFIER –15 –12 –15 BT/MP3 serviced only by qualified service personnel when:...
  • Page 5 Extra Echo Effect –15 –15 MUSIC HIGH MODE INPUT A NORMAL HIGH INPUT B SELECTOR KEY CONTROL DX-333 G2 –15 –12 –15 DYNAMIC FUSION AMPLIFIER BT/MP3 unstable table or stand, so it may cause accident including personal injuries and CHANNEL-A CHANNEL-B 000.000...

  • Page 6: Package Accessories

    HIGH MUSIC MODE INPUT A NORMAL HIGH INPUT B SELECTOR KEY CONTROL DYNAMIC FUSION AMPLIFIER DX-333 G2 –15 –12 –15 BT/MP3 AC power cable (6 feet) United States (2M) to IEC (F) MIC MASTER VOLUME Using the Remote Control Unit...

  • Page 7: Speaker Connection Methods And Information

    SPEAKER CONNECTION METHODS AND INFORMATION Connection CONNECTOR INFORMATION METHODS OF SPEAKER CONNECTION 1. Wire Insert Type (Poor Connection) Balanced XLR Connectors √ E R S S P E A K Hot (+) Pin 2 Cold (-) Pin 3 Ring Shield (Ground) Pin 1 Shield SHIELD...

  • Page 8: System Applications

    AUDIO INPUT EFFECT 110V-120V 220V-240V 395161107200 AC POWER SERIAL NO. ~230/110V 50/60Hz line audio output offered by the DX-333 G2, RISK OF ELECTRIC SHOCK DO NOT OPEN WITHOUT AUTHORIZATION RECORD LINE INPUT OUTPUT TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.

  • Page 9: Connecting The Whole System For Large Format

    Our engineering team specially designed it for Asian American community business investments. Dynamic Fusion Amplifier DX-333 G2 is perfect for connecting 2 units of MAIN LEFT speakers and 2 additional units of high-end speakers via a NON-POWERED UNIT DFS-915 power amplifier.

  • Page 10: Multimedia Expansion Bay - Mp3 Source Input

    MAIN LEFT SPEAKER MAIN RIGHT SPEAKER ELECTRONIC SCREEN CONNECTING THE MAIN SPEAKERS for 4-CHANNEL The DX-333 G2 is also capable of driving four speakers (two main and two rear speakers) to achieve a surround sound effect. Please refer MAIN SPEAKERS...

  • Page 11: Connecting Bluetooth

    CONNECTING BLUETOOTH 1. Ensure Bluetooth is turned “ON” in your mobile device. 2. With the DX-333 G2 powered “ON”, search for available AT&T 9:42AM bluetooth networks from your mobile device. The amplifier will Calendar Contact Note Movies YouTube iTunes App Store appear in the Bluetooth network list as “BT SPEAKER”.

  • Page 12: Connecting The Audio Output

    INPUT: Receives the audio from the equalizer INPUT The “EFFECT” allows for further control of the audio using an external equalizer. “JUMPERS” CONNECTION DX-333 G2 REAR VIEW Wrong Position EFFECT Right Position Don’t take off the “jumpers” when not NOTE using the jacks.
  • Page 14 UHF WIRELESS SYSTEM VM-52U G2 UHF WIRELESS SYSTEM VM-52U G2...

  • Page 15: Controls And Functions

    CONTROLS AND FUNCTIONS Amplifier REMOTE CONTROL: 2 inches/50 mm 5.75 inches/150 mm MIC MASTER VOLUME NATURAL HIGH INPUT MUSIC VOLUME CHANGING BATTERIES Open the battery compartment cover on the back of the remote control unit. The cover should open easily if you press and slide it in the direction of the arrow.

  • Page 16: Front Panel

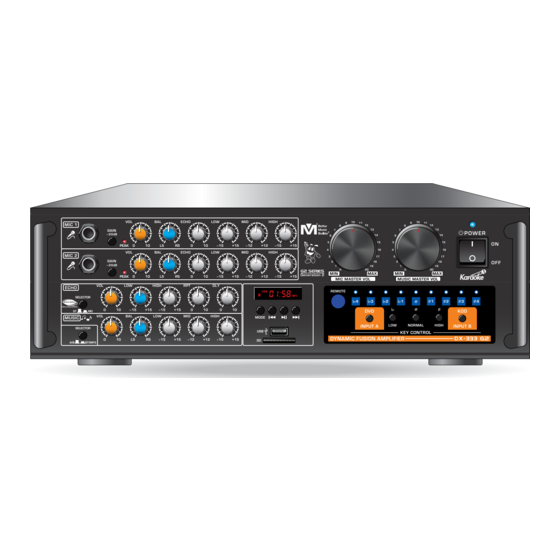

    –15 MIC MASTER VOL MUSIC MASTER VOL PEAK HIGH ECHO REMOTE SELECTOR Extra Echo Extra Echo Effect –15 –15 HIGH MUSIC MODE NORMAL HIGH INPUT A INPUT B SELECTOR KEY CONTROL DYNAMIC FUSION AMPLIFIER DX-333 G2 –15 –12 –15 BT/MP3...

  • Page 17: Front Panel

    MIC MASTER VOL MUSIC MASTER VOL PEAK HIGH ECHO REMOTE 0 1:58 SELECTOR Extra Echo Extra Echo Effect –15 –15 HIGH MUSIC MODE NORMAL HIGH INPUT A INPUT B SELECTOR KEY CONTROL DYNAMIC FUSION AMPLIFIER DX-333 G2 –15 –12 –15 BT/MP3...

  • Page 18: Rear Panel

    Housing for the power supply fuse REAR MICROPHONE INPUT BLUETOOTH ANTENNA VOLTAGE SELECTOR Don’t take off the “jumpers” when MODEL NO.: DX-333 G2 MAIN SPEAKERS not using the jacks. Audio will be CALIFORNIA, UNITED STATES OF AMERICA VOLUME RESET disabled when “jumpers” are E-mail: sales@bettermusicbuilder.com...

  • Page 19: Operation

    HIGH INPUT A INPUT B VOLUME RESET KEY CONTROL DX-333 G2 DYNAMIC FUSION AMPLIFIER Adjust the music key to compliment your singing voice; Increase the music keys from #1 to #4 and decrease the music keys from b1 to b4.

  • Page 20: Physical Dimensions

    – 1 – 1 INPUT A NORMAL HIGH INPUT B SELECTOR KEY CONTROL DYNAMIC FUSION AMPLIFIER DX-333 G2 –15 –12 –15 BT/MP3 – 1 – 1 – 1 S EL MI C R O P H O N E T O N E...

  • Page 21: Troubleshooting

    TROUBLESHOOTING Troubleshooting 7. HUMMING NOISE 1. NO SOUND FROM SELECTED AUDIO SOURCE CAUSE:  Input selector is set incorrectly.  “Music Master Volume” control is set to minimum.  Speakers and speaker cables may be disconnected, loose or malfunctioned.  Source player is functioning incorrectly. EFFECT Right Position REMEDY:...
  • Page 22 10. NOISE AND DISTORTION When humming noise or displeasing sound occurs, replace the supplied power cord with an AC power cord with a magnetic device as shown in the figure below. 3 prong to 2 prong adaptor 110V~120V FIGURE 1 Q u a lit y Po w e r C o rd: 105°...

  • Page 23: Warranty

    WARRANTY Warranty ONE-YEAR LIMITED WARRANTY FOR HOME USE ADDITIONAL NOTES: EQUIPMENT 1. Limited warranty for home use equipment is only valid in Our one-year warranty covers both parts and labors. The North America. warranty becomes effective from the date of your purchase 2.

  • Page 24: Agency Regulatory Notices

    AGENCY REGULATORY NOTICES Notices FEDERAL COMMUNICATIONS COMMISSION NOTICE your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a These limits are designed to provide reasonable protection manner that protects human health and the environment. For against harmful interference in a residential installation.

  • Page 25: Final Words To User

    Final Words Contact Us MAILING ADDRESS The engineering team of Better Music Builder has many years of experience in audio equipment design. The team BE T TER M USI C BU I LD ER constantly develops new audio technologies, designs...
  • Page 26 MAINTENANCE NOTE...
  • Page 27 MAINTENANCE NOTE...
  • Page 28 Owner's Manual carefully before operating it. Please retain this manual for future reference. 395161107200 Printed on 100% Recycled Paper Code: 20161101 Comments E-mail to sales@bettermusicbuilder.com Copyright © 2017 Better Music Builder. All rights reserved. Legal trademark.
