OWNER'S MANUAL
PROFESSIONAL MIXING AMPLIFIER
DX-388 D
Thank you for purchasing this unit. To
make full and effective use of this unit,
please read this Owner's Manual
carefully before operating it. Please
retain this manual for future reference.
w w w. B e t t e rM usi c B ui l d e r.c o m
110421
Advertisement
Table of Contents
Related Manuals for Better Music Builder DX-388 D
Summary of Contents for Better Music Builder DX-388 D
- Page 1 Better Music Builder .com ® Passionate about Music OWNER'S MANUAL ® Better Music Builder is a leader in the Audio and Karaoke equipment industry. We are committed to offering you high quality audio products. Unlike any others PROFESSIONAL MIXING AMPLIFIER brand, we deliver the best cost and value to you directly.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................Intro SYSTEM FEATURES ............................Features SAFETY INSTRUCTIONS ..........................Safety SPEAKER CONNECTION METHODS AND INFORMATION ..............Connection SYSTEM APPLICATIONS ........................... Applications • Line Pre-out Extension for Large Format Sound System ................• Connecting the Speaker With 5-D PRO Audio ................... -
Page 3: Introduction
• 7-Steps key control Different from its former models is the greater number of • Individualized volume control for center speaker and audio outputs the new DX-388 D has. The DX-388 D Mixing subwoofer Amplifier features 5-D technology like our DX-388 Beta. The •... -
Page 4: Safety Instructions

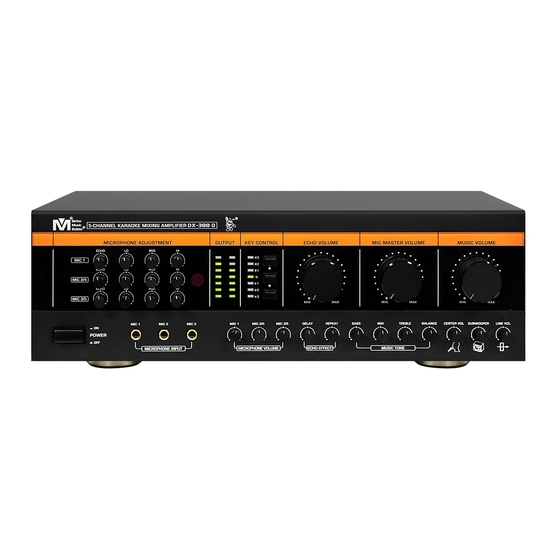

120V AC-POWER AC-POWER CORD INCLUDED 11. Object and Liquid Entry: Care should be taken so that objects do not fall on, or liquids are not spilled into this 5-CHANNEL KARAOKE MIXING AMPLIFIER DX-388 D MICROPHONE ADJUSTMENT OUTPUT KEY CONTROL ECHO VOLUME... - Page 5 Do not defeat the safety purpose of the grounding plug. An appliance and cart combination should be moved with care. Quick 5-CHANNEL KARAOKE MIXING AMPLIFIER DX-388 D MICROPHONE ADJUSTMENT OUTPUT KEY CONTROL ECHO VOLUME...
-
Page 6: Speaker Connection Methods And Information
SPEAKER CONNECTION METHODS AND INFORMATION Connection CONNECTOR INFORMATION METHODS OF SPEAKER CONNECTION 1. Insert Type (Poor Connection) Balanced XLR Connectors E R S S P E A K Hot (+) Pin 2 Cold (-) Pin 3 Ring Shield (Ground) Pin 1 Shield SHIELD GOOD... -
Page 7: System Applications
DJ. Using the line pre-out output offered by that others don’t have. The unit comes fully packed with the DX-388 D, you can extend its functions by connecting to features such as crossover, microphone exciter, key control, other devices to get the full live sound effect. -
Page 8: Connecting The Speaker With 5-D Pro Audio
OUT and the CENTER LINE OUT with RCA connection. The connects to active subwoofer to bring out the bass. Live sound is limited in the 5-D (5 powered out) DX-388 D that’s concert sound is what we’re trying to achieve. -
Page 9: 5-Channel Mixing Amplifier For Commercial Use
5-CHANNEL MIXING AMPLIFIER FOR COMMERCIAL USE CS-812 G3 DFS-306 DFS-206 ® CS-812 G3 DFS-206 MIXING AMPLIFIER DX-388 D HARD DISK DRIVE VIDEO PLAYER VOD-900 V I D W ER ld er ® B ui M us te r B et ®... -
Page 10: Connecting The Audio Input Source
TV. DVD PLAYER HITBOX [PC/VOD] BGM PLAYER AUDIO INPUT TERMINAL CONNECTING THE AUDIO LINE PRE-OUT POWER AMP REAR VIEW DX-388 D REAR VIEW The Audio 1/4” unbalanced cable is a CH-1 BRIDGE IN SPEAKERS GROUP-A GROUP-B CENTER... -
Page 11: Connecting The Subwoofer & Center Speaker
PROFESSIONAL KARAOKE REMOTE REMOTE CONTROL PROFESSIONAL KARAOKE 降調 原調 升調 SYSTEM REMOTE CONTROL KR-02 音量 静音 原唱 低音 The DX-388 D was designed with MUSIC MUTE MUTL 音樂 效果 話筒 回聲 混響 混合 MUSIC ECHO professional and/or commercial KTV usage. Hence, the rear panel has a specially designed S-terminal connector for remote control use. -
Page 12: Connecting The Microphone Effects Processor
It allows you to mix in different sound effects when the processor is connected to the amplifier. This is one of many features that are exclusive to the DX-388 D Mixing Amplifier. CONNECTING THE SOUND EFFECTS PROCESSOR SOUND EFFECTS PROCESSOR... - Page 14 UHF WIRELESS SYSTEM VM-52U G2 UHF WIRELESS SYSTEM VM-52U G2...
-
Page 15: Controls And Functions
Controls music volume. Control volume of LINE PRE-OUT audio output. Good for large format sound system. POWER BUTTON ON/OFF MICROPHONE INPUTS (¼ inch SLOT) 5-CHANNEL KARAOKE MIXING AMPLIFIER DX-388 D MICROPHONE ADJUSTMENT OUTPUT KEY CONTROL ECHO VOLUME MIC MASTER VOLUME... -
Page 16: Rear Panel
VOCAL WOOFER MONITOR MODEL NO.: DX-388 D CALIFORNIA, UNITED STATES OF AMERICA E-mail: sales@bettermusicbuilder.com w w w . B e t t e r M u s i c B u i l d e r . c o m... -
Page 17: Remote Control
REMOTE CONTROL: CHANNEL SELECTION EXCITE DOWN KEY CHANGE ECHO MUSIC INSERTING BATTERIES Open the battery compartment cover on the back of the remote control unit. The cover should open easily if you press on in with your thumb while sliding it in the direction of the arrow. -
Page 18: Operation
OPERATION Operating FRONT PANEL OPERATION ADJUSTING THE CENTER, SUB, LINE VOLUME CENTER VOL SUBWOOFER LINE VOL MICROPHONE INPUT There are three microphone MIC 1 MIC 2 MIC 3 inputs (1/4” slot) on the CENTER: Turn the knob clockwise to increase and front panel. -
Page 19: Physical Dimensions
MUTE MUTE DUAL CHANNEL VHF WIRELESS SYSTEM POWER ANTENA-A VOLUME CNANNEL-A DISPLAY CNANNEL-B DISPLAY VOLUME ANTENA-B 5-CHANNEL KARAOKE MIXING AMPLIFIER DX-388 D MICROPHONE ADJUSTMENT OUTPUT KEY CONTROL ECHO VOLUME MIC MASTER VOLUME MUSIC VOLUME ECHO MIC 1 ECHO MIC 2/4... -
Page 20: Troubleshooting
TROUBLESHOOTING Troubleshooting 1. NO ECHO FROM THE CENTER SPEAKER 5. MICROPHONE VOLUME IS TOO LOW CAUSE: CENTER ECHO is turned off. CAUSE: The mic master volume limiter is set too low. REMEDY: Turn on CENTER ECHO. REMEDY: Adjust to a higher “Max Mic Master Volume.” We design this system in such a way that the echo from the 6. - Page 21 VOCAL WOOFER MONITOR MODEL NO.: DX-388 D CALIFORNIA, UNITED STATES OF AMERICA E-mail: sales@bettermusicbuilder.com w w w . B e t t e r M u s i c B u i l d e r . c o m...
-
Page 22: Warranty
WARRANTY Warranty ONE-YEAR LIMITED WARRANTY FOR HOME USE ADDITIONAL NOTES: EQUIPMENT 1. Limited warranty for home use equipment is only valid in Our one-year warranty covers both parts and labors. The North America. warranty becomes effective from the date of your purchase 2. -
Page 23: Agency Regulatory Notices
AGENCY REGULATORY NOTICES Notices FEDERAL COMMUNICATIONS COMMISSION NOTICE your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a These limits are designed to provide reasonable protection manner that protects human health and the environment. For against harmful interference in a residential installation. -
Page 24: Final Words To User
Final Words Contact Us MAILING ADDRESS The engineering team of Better Music Builder has many years of experience in audio equipment design. The team BE T TER M USI C BU I LD ER constantly develops new audio technologies, designs... - Page 25 Owner's Manual carefully before operating it. Please retain this manual for future reference. 360140921200 Printed on 100% Recycled Paper Code: 20140901 Comments E-mail to sales@bettermusicbuilder.com Copyright © 2014 Better Music Builder. All rights reserved. Legal trademark.
