Better Music Builder DX-222 G2 Owner's Manual

G2 series cpu integrated mixing amplifier
Hide thumbs Also See for DX-222 G2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Enlarged version
Unlike any others ... that's cost & value for you
Passionate about Music
w w w . Bet t e rM usi cBuilder. com
Thank you for purchasing this unit. To make full and effective use
of this unit, please read this Owner's Manual carefully before
operating it. Please retain this manual for future reference.
85909 15390
Printed on 100% Recycled Paper
Code: 20091001
Comments E-mail to info@bettermusicbuilder.com
®
®
Copyright © 2010 BMB :: Better Music Builder. All rights reserved. Legal trademark.
®
®
Passionate about Music
Better Music Builder is a leader in the Audio and
Karaoke equipment industry. We are committed
to offering you the high quality audio product.
Unlike any others brand, we deliver the best cost
and value to you directly. We may update our
manual on short notice, so we highly recommend
downloading the latest update information includ-
ing operation manuals, installation instruction,
and other new technologies updates, etc. from
our website www.BetterMusicBuilder.com.

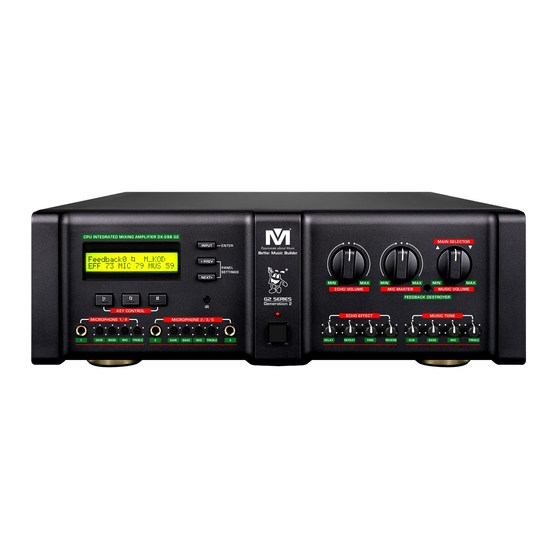

CPU INTEGRATED MIXING AMPLIFIER DX-288 G2
INPUT
ENTER
LOADING...
< PREV
PANEL
SETTINGS
NEXT>
#
IR
KEY CONTROL
MICROPHONE 1/4
MICROPHONE 2/3/5
1
GAIN
BASS
MID
TREBLE
2
GAIN
BASS
MID
TREBLE
3

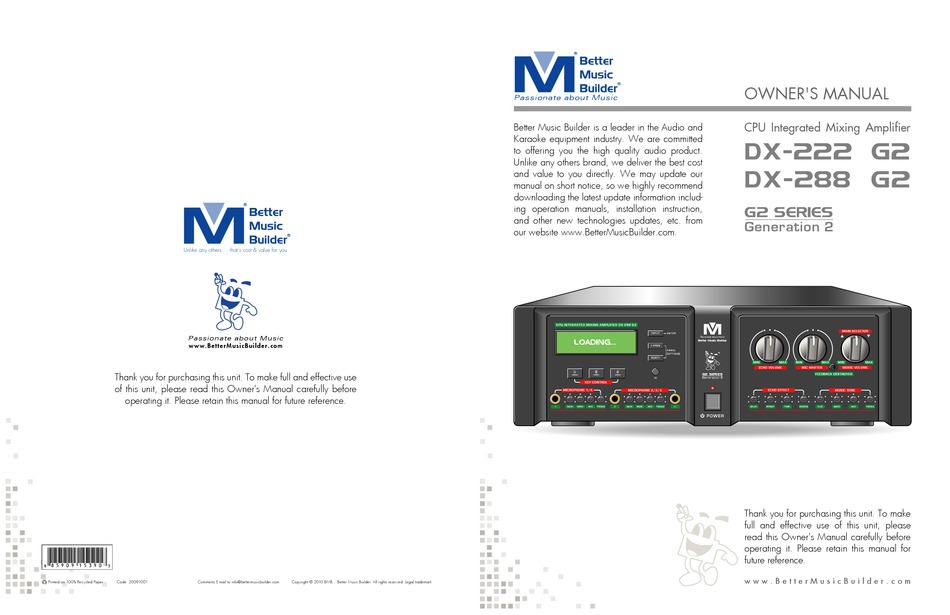

OWNER'S MANUAL
CPU Integrated Mixing Amplifier
DX-222 G2
DX-288 G2
G2 SERIES
Generation 2
MAIN SELECTOR
Passionate about Music
Better Music Builder
MIN
MAX
MIN
MAX
MIN
MAX
ECHO VOLUME
MIC MASTER
MUSIC VOLUME
G2 SERIES
FEEDBACK DESTROYER
Generation 2
ECHO EFFECT
MUSIC TONE
DELAY
REPEAT
TIME
REVERB
SUB
BASS
MID
TREBLE
P OW ER
Thank you for purchasing this unit. To make
full and effective use of this unit, please
read this Owner's Manual carefully before
operating it. Please retain this manual for
future reference.
w w w . B e t t e r M u s i c B u i l d e r . c o m
