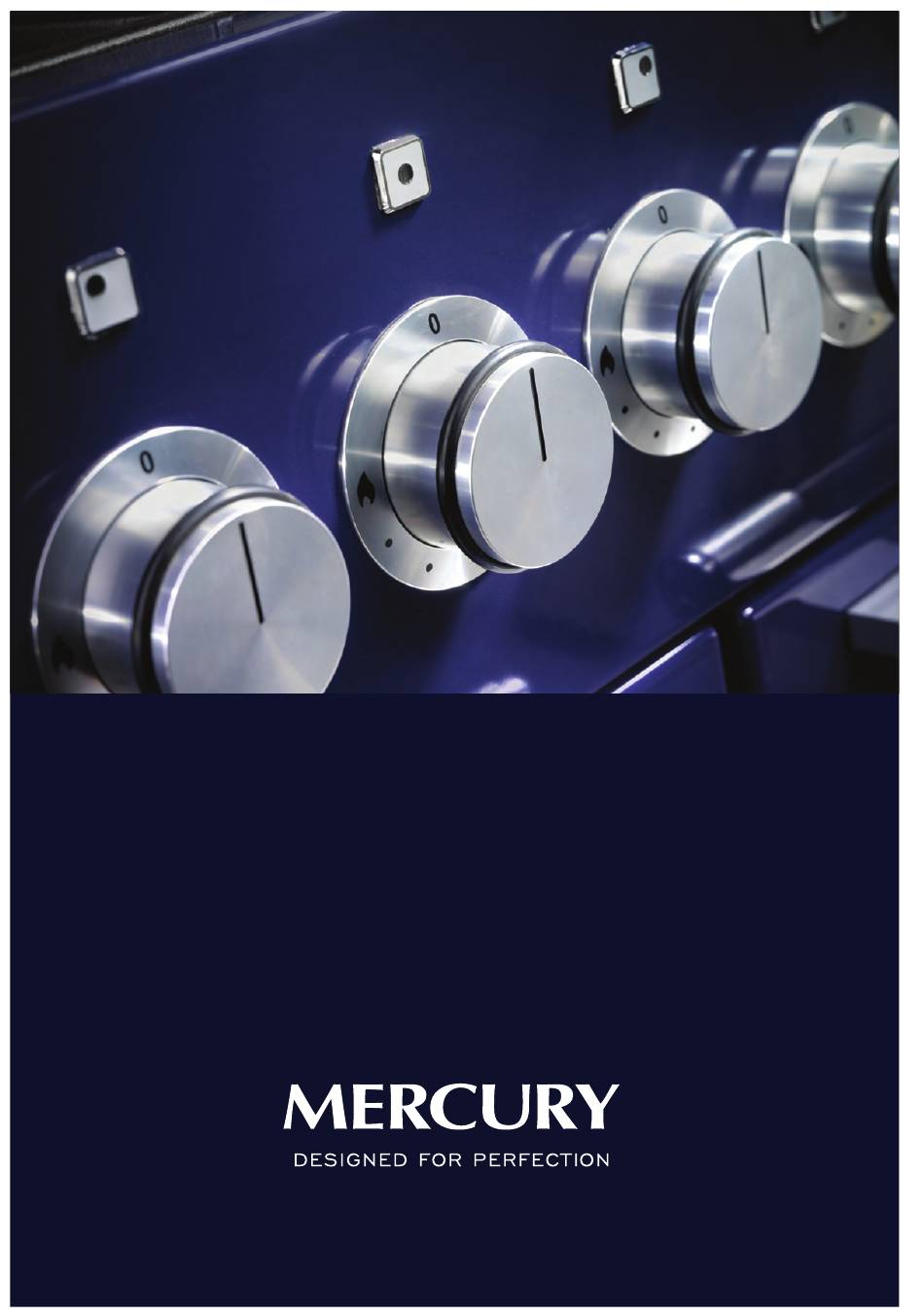

- Page 1 USER GUIDE & INSTALLATION INSTRUCTIONS 1000 Mercury Dual Fuel U110086-08...
- Page 2 RED ONION, GOATS CHEESE AND WALNUT FILO TARTLETS • 1 pack of filo pastry • 25 g butter • 1 tablespoon olive oil • 150 g soft goat’s cheese, chopped • Half 85 g bag of watercress roughly torn/chopped METHOD Put the red onions in a saucepan with the sugar, water, butter and seasoning and simmer with a lid on the pan for approximately 9 minutes.
-
Page 3: Table Of Contents
Contents Before You Start... Installation Important! Dear Installer Installation and Maintenance Safety Requirements and Regulations Peculiar Smells Provision of Ventilation If You Smell Gas Location of Cooker Ventilation Conversion Personal Safety Positioning the Cooker Cooker Care Moving the Cooker Cleaning Fitting the Flue, Flue Vent Cooker Overview and Side Panels... -
Page 5: Before You Start
Before You Start... If You Smell Gas Your cooker should give you many years of trouble-free cooking if installed and operated correctly. It is important • DO NOT turn electric switches on or off that you read this section before you start, particularly if you have not used a dual fuel cooker before. -
Page 6: Cooker Care
never wear loose-fitting or hanging clothes when Foods for frying should be as dry as possible. Frost on frozen using the appliance. foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan. Carefully watch for spills or DO NOT use a steam cleaner on your cooker. -
Page 7: Cooker Overview
Cooker Overview DocAUS.020-0004 - Overview - 110DF - Elan Fig. 2.1 The 1000 dual fuel cooker (Fig. 2.1) has the following Fig. 2.2 features: 5 hotplate burners including 1 wok burner A control panel A glide-out grill Main multifunction oven... -
Page 8: Wok Burner
Adjust the flame height to suit by turning the knob counter- Fig. 2.3 clockwise (Fig. 2.3). On this cooker the low position is beyond high, not between high and off. If a burner flame goes out, turn off the control knob and leave it for one minute before relighting it. -
Page 9: Glide-Out Grill
DO NOT put it crossways – it will not fit properly and Fig. 2.11 will be unstable (Fig. 2.12). DO NOT put it on any other burners – it is not designed to fit in any of the other pan supports. Position the griddle over the hotplate burners resting on the pan support. -
Page 10: Ovens
Ovens Fan oven cooking is particularly suitable for baking on several shelves at one time and is a good ‘all-round’ function. It may References to ‘left-hand’ and ‘right-hand’ ovens apply as be necessary to reduce the temperature by approximately viewed from the front of the appliance. 10 °C for recipes previously cooked in a conventional oven. - Page 11 Browning Element Function This function uses the element in the top of the oven Defrost To thaw small items in the oven without heat only. It is a useful function for the browning or finishing of pasta dishes, vegetables in sauce, A full cooking function, even heat throughout, Fan oven shepherds pie and lasagne, the item to be browned being...
-
Page 12: Accessories
Accessories Fig. 2.20 Fig. 2.21 Oven Shelves The cooker is supplied with the following: Left-hand Oven • 1 standard shelf (Fig. 2.20) • 1 drop shelf (Fig. 2.21) Fig. 2.22 Fig. 2.23 • 1 telescopic shelf with runners (Fig. 2.22) •... - Page 13 The shelf has a small kink on either side (Fig. 2.30). To remove Fig. 2.27 the shelf, line these up with the stops in the shelf support (Fig. 2.31). Lift the rear of the shelf upward so that it will pass over the shelf stop and then pull it forward (Fig.
-
Page 14: Cooking Tips
Cooking Tips Cooking with a Multifunction Oven General Oven Tips Remember: not all modes are suitable for all food types. The The wire shelves should always be pushed firmly to the back oven cooking times given are intended for a guide only. of the oven. -
Page 15: Cooking Table
Cooking Table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result. -
Page 16: Cleaning Your Cooker
Cleaning Your Cooker Essential Information Fig. 5.1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. ArtNo.311-0028 - Burner head off NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. -
Page 17: Griddle (Optional Extra)
Wipe loose debris from main top. Avoid using any abrasive Fig. 5.4 cleaners including cream cleaners. For best results use a liquid detergent cleaner. Rinse with cold water and thoroughly dry with a clean, soft cloth. Ensure all parts are dry before repositioning. Griddle (Optional Extra) Always clean the griddle after use. -
Page 18: Control Panel And Oven Doors
Control Panel and Oven Doors Fig. 5.8 Avoid using any abrasive cleaners including cream cleaners. For best results, use a liquid detergent. The control panel and control knobs should only be cleaned with a soft cloth wrung out in clean hot soapy water – but take care that no surplus water seeps into the appliance. -
Page 19: Cleaning Table
Cleaning Table Cleaners listed (Table 5.1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish... -
Page 20: Troubleshooting
Troubleshooting Hotplate/Cooktop ignition or hotplate burners faulty Food is cooking too slowly, too quickly, or burning Is the power on? If not, there maybe something wrong with Cooking times may differ from your previous oven. the power supply. Check that you are using the recommended temperatures Are the sparker (ignition electrode) or burner slots blocked by and shelf positions –... - Page 21 The left-hand oven door is misaligned Fig. 6.1 The bottom hinge of the left-hand oven door can be adjusted to alter its angle (Fig. 6.1). Loosen the bottom hinge fixing screws and use the notch and a flat bladed screwdriver to move the position of the hinge to set the hinge position (Fig.
-
Page 22: Installation
INSTALLATION Check the appliance is electrically safe when you have finished. Installation Dear Installer In the UK the cooker must be installed in accordance with: Before you start your installation, please complete the details • All relevant British Standards / Codes of Practice, in below, so that, if your customer has a problem relating to particular BS 5440 Part 2. -
Page 23: Location Of Cooker
INSTALLATION Check the appliance is electrically safe when you have finished. Location of Cooker Checking the Parts: The cooker may be installed in a kitchen/kitchen diner but 5 pan supports Wok cradle NOT in a room containing a bath or shower. This appliance is designed for domestic cooking only. -
Page 24: Positioning The Cooker
90 mm min A clearance of 90 mm is required if the cooker is near a corner ArtNo.110-0045 - 120DF - Mercury door clearances of the kitchen to allow the oven doors to open (Fig. 7.3). The actual opening of the doors is slightly less but this allows for Fig. -
Page 25: Fitting The Flue, Flue Vent And Side Panels
INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Flue, Flue Vent and Side Panels Fitting the Flue Checking the Parts: Remove the four screws from the grill flue opening (Fig. Flue Flue Vent 8.1). Present the removable flue up to grill flue opening. Make sure that the bottom flange of the removable flue fits inside the fixed flue, secure in place with the four screws (Fig. -
Page 26: Fitting The Side Panel Rear Retaining Brackets
INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Side Panel Rear Checking the Parts: Retaining Brackets Side panel rear retaining brackets Side panels Located at the bottom left and right rear corner of the A052064 - Right-hand A051761 - Right-hand A052067 - Left-hand A051759 - Left-hand... -
Page 27: Remove The Transit Brackets
INSTALLATION Check the appliance is electrically safe when you have finished. Remove the Transit Brackets Fig. 8.6 Loosen the two screws in the underside of the transit bracket (Fig. 8.6). Slide the bracket forwards and remove. Discard the Transit Bracket. Fitting the Obscuring Trims Located near the front on each side of the cooker there are three screws. -
Page 28: Fitting The Side Panels
INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Side Panels Fig. 8.8 Loosen the screw in the flue vent (Fig. 8.8). Inside the top of the side panel top are two tabs. Connect these tabs into the cut-outs in the top edge of the cooker (Fig. -
Page 29: Fitting The Front Mounting Brackets
INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Front Mounting Fig. 8.13 Brackets Left Mounting Open the left and right-hand oven door Plate On the front of the cooker base there are two mounting plates. Remove the three fixing screws from each plate (Fig. -
Page 30: Completing The Move
INSTALLATION Check the appliance is electrically safe when you have finished. Completing the Move Fig. 8.15 Open the grill door and right-hand oven door so that you can get a good grip on the bottom of the fascia panel as you move the oven (Fig. -
Page 31: Removing The Side Panels
INSTALLATION Check the appliance is electrically safe when you have finished. Removing the Side Panels You will need the following equipment to remove the side Fig. 9.1 panels: Side panel Cross-head screwdriver Flat head screwdriver Allen keys (provided in pack). Removing the Bottom Panel (Plinth) Open the left and right-hand oven door... - Page 32 INSTALLATION Check the appliance is electrically safe when you have finished. Removing the Side Panels Fig. 9.3 Loosen one screw in the vent (Fig. 9.3). Push forward the side panel so that it moves away from the flue vent and the retaining washer (Fig. 9.4). Inside the top of the side panel top are two tabs.
-
Page 33: 10. Conversion To Lp Gas
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 10. Conversion to LP Gas Check the ‘Technical Data’ section at the back of the book Fig. -
Page 34: Tap Adjustment
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Note: When refitting the hotplate, take care not to damage or Fig. 10.5 displace the flame safety probes (Fig. -
Page 35: 11. Gas Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 11. Gas Connection Conversion to Another Gas Fig. 11.1 Gas inlet block If the appliance is to be converted to another gas do the conversion at this point. See ‘Conversion to LP Gas’ . Gas Connection This must be in accordance with the relevant standards. -
Page 36: 12. Electrical Connection
INSTALLATION Check the appliance is electrically safe when you have finished. 12. Electrical Connection The cooker must be installed by a qualified electrician, in Current Operated Earth Leakage Breakers accordance with all relevant British Standards/Codes of The combined use of your cooker and other domestic Practice (in particular BS 7671), or with the relevant national appliances may cause nuisance tripping, so we recommend and local regulations. -
Page 37: 13. Circuit Diagram
13. Circuit Diagram P095199 P095199 P028728 br b The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour Right-hand fan oven control Blue Left-hand multi-function oven control Left-hand multi-function oven control switch Right-hand fan oven thermostat Brown... -
Page 38: 14. Technical Data
29 mbar 230/400 V 50 Hz Propane 37 mbar See the appliance badge for test pressures. Dimensions Model Mercury 1000 Dual Fuel Overall height minimum 920 mm maximum 945 mm Overall width 990 mm Overall depth 638 mm excluding handles, 700 mm including handles... - Page 39 Hotplate Efficiency Data Brand Mercury Model Identification 1000 DF Size 1000 Type Dual Fuel Type of Hob Number of gas burners Auxiliary / Small Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) 60.8% Semi Rapide / Medium Burner (EE gas burner) Rapide / Large Burner (EE gas burner) 58.5%...
- Page 40 Oven Data Brand Mercury Model identification 1000 DF Type of oven Electric Mass Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Multifunction Power - conventional Power - forced air convection Volume Litres Energy consumption (electricity) - conventional kWh / cycle...
- Page 41 Notes...
- Page 42 Notes...
- Page 43 Notes...
- Page 44 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. Tel: +44 (0) 1926 457628 E-mail: consumer@mercuryappliances.co.uk...
