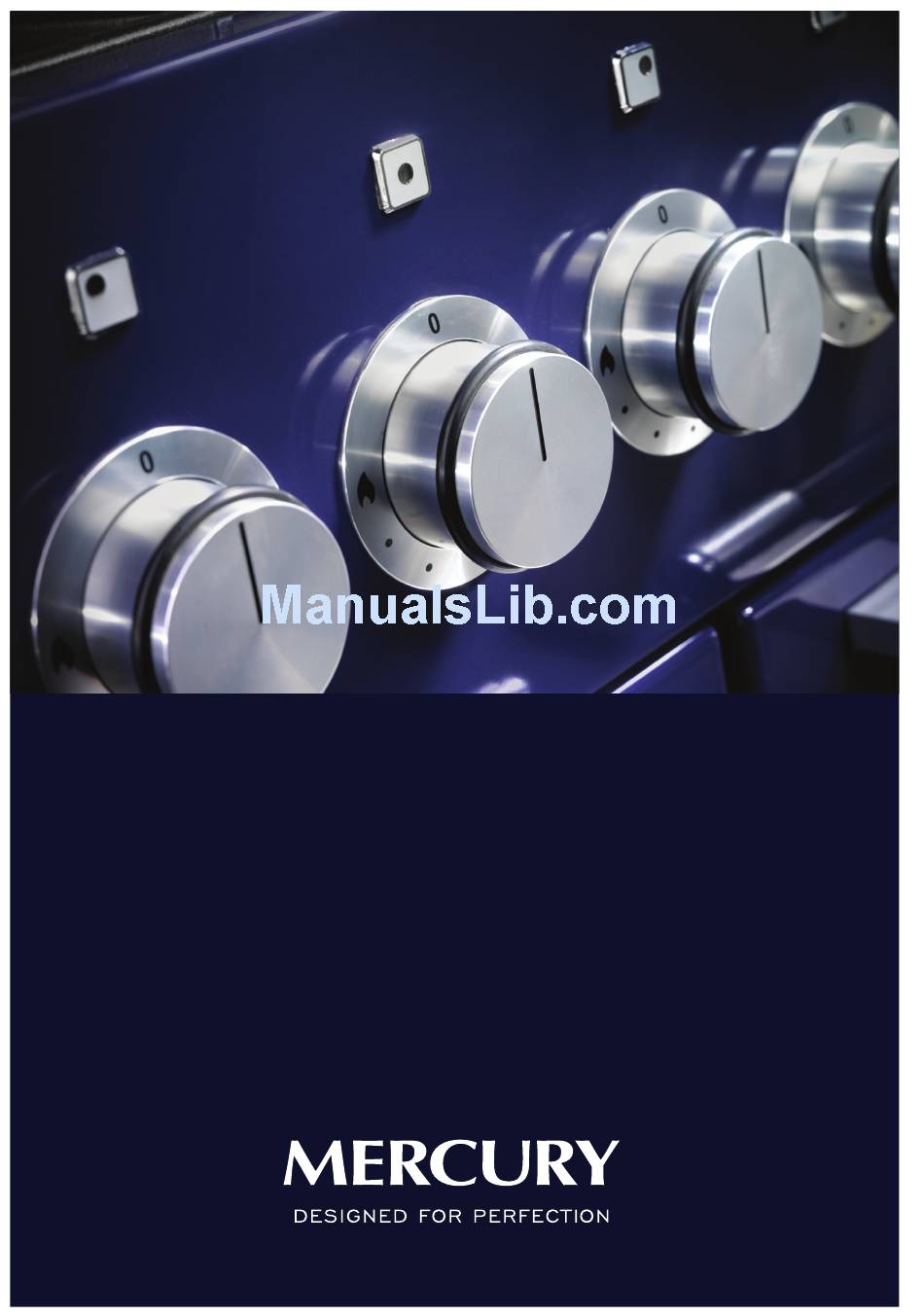

- Page 1 USER GUIDE & INSTALLATION INSTRUCTIONS 1082 Dual Fuel...
- Page 2 RED ONION, GOATS CHEESE AND WALNUT FILO TARTLETS • A good handful of chopped walnuts • 1 pack of filo pastry • 25 g butter • 1 tablespoon olive oil • 150 g soft goat’s cheese, chopped • Half 85 g bag of watercress roughly torn/chopped METHOD 1.
-
Page 3: Table Of Contents
Cleaning Your Cooker Circuit Diagram Essential Information 10. Technical Data Daily Care Cleaning for Spills Hotplate Burners Stainless Steel Main Top Griddle (Optional Extra) Glide-out Grill Control Panel and Oven Doors Ovens Tall Oven Cleaning Table Mercury 1082 Dual Fuel U110240-05a... -
Page 5: Before You Start
1. Before You Start... Electrical Connection Safety Your cooker should give you many years of trouble-free cooking if installed and operated correctly. It is important A Gas Safe registered engineer should service the that you read this section before you start. cooker and only approved spare parts should be used. -
Page 6: Gas Connection Safety
Gas Connection Safety Ventilation • This cooker is a Class 2 Subclass 1 appliance. The use of a cooking appliance results in the production of heat and moisture in the room in which it is installed. • This appliance can be converted for use on another gas. Therefore, make sure that the kitchen is well ventilated: •... -
Page 7: Oven Care
a flaming pan. Turn the controls off and then smother Fig. 1.1 a flaming pan on a surface unit by covering the pan completely with a well fitting lid or baking tray. If available, use a multi-purpose dry chemical or foam- type fire extinguisher. -
Page 8: Hob Care
Hob Care Cleaning • NEVER allow anyone to climb or stand on the hob. • Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. • DO NOT use the hob surface as a cutting board. •... -
Page 9: Cooker Overview
2. Cooker Overview DocAUS.020-0004 - Overview - 110DF - Elan Fig. 2.1 The 1082 dual fuel cooker (Fig. 2.1) has the following features: Fig. 2.2 5 hotplate burners including 1 wok burner A control panel A glide-out grill Main multi-function oven... -
Page 10: Wok Burner
If, when you let go of the control knob the burner goes out, Fig. 2.3 then the FSD has not been bypassed. Turn the control knob to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer. -
Page 11: Griddle (Optional Extra)
Griddle (Optional Extra) Fig. 2.11 The griddle fits over the left-hand pan supports, front to back (Fig. 2.11). It is designed for cooking food on directly. DO NOT use pans of any kind on it. The griddle surface is non- stick and metal cooking utensils (e.g. -
Page 12: Ovens
Ovens shelves at one time and is a good ‘all-round’ function. It may be necessary to reduce the temperature by approximately References to ‘left-hand’ and ‘right-hand’ ovens apply as viewed 10 °C for recipes previously cooked in a conventional oven. from the front of the appliance. - Page 13 Browning Element Function This function uses the element in the top of the oven To thaw small items in the oven without only. It is a useful function for the browning or Defrost heat finishing of pasta dishes, vegetables in sauce, A full cooking function, even heat shepherds pie and lasagne, the item to be browned being Fan oven...
-
Page 14: Accessories
Accessories Fig. 2.20 Fig. 2.21 Oven Shelves The cooker is supplied with the following: Left-hand Oven 1 standard shelf (Fig. 2.20) 1 drop shelf (Fig. 2.21) 1 telescopic shelf with runners (Fig. 2.22) 1 set of side supports (Fig. 2.23) Right-hand Oven Fig. - Page 15 To Fit the Telescopic Shelf Runners Fig. 2.27 With the runner arm in the closed position locate the opening of the upper rear slot onto the side support (Fig. 2.27). Do not locate any further than the opening at this point. Lift the front of the runner arm to locate the front slot against the side support (Fig.
-
Page 16: Cooking Tips
3. Cooking Tips Cooking with a Multifunction Oven General Oven Tips Remember: not all modes are suitable for all food types. The The wire shelves should always be pushed firmly to the back oven cooking times given are intended for a guide only. of the oven. -
Page 17: Cooking Table
4. Cooking Table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a ArtNo.050-0007 preferred result. -
Page 18: Cleaning Your Cooker
5. Cleaning Your Cooker Essential Information Fig. 5.1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic ArtNo.311-0028 - Burner head off cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. -
Page 19: Griddle (Optional Extra)
Wipe loose debris from main top. Avoid using any abrasive Fig. 5.4 cleaners including cream cleaners. For best results use a liquid detergent cleaner. Rinse with cold water and thoroughly dry with a clean, soft cloth. Ensure all parts are dry before repositioning. Griddle (Optional Extra) Always clean the griddle after use. -
Page 20: Control Panel And Oven Doors
Control Panel and Oven Doors Fig. 5.8 Avoid using any abrasive cleaners including cream cleaners. For best results, use a liquid detergent. The control panel and control knobs should only be cleaned with a soft cloth wrung out in clean hot soapy water – but take care that no surplus water seeps into the appliance. -
Page 21: Cleaning Table
Cleaning Table Cleaners listed (Table 5-1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish... -
Page 22: Troubleshooting
6. Troubleshooting Hotplate/Cooktop ignition or hotplate burners faulty Food is cooking too slowly, too quickly, or burning Is the power on? If not, there maybe something wrong Cooking times may differ from your previous oven. with the power supply. Check that you are using the recommended Are the sparker (ignition electrode) or burner slots temperatures and shelf positions –... - Page 23 The left-hand oven door is misaligned Fig. 6.1 The bottom hinge of the left-hand oven door can be adjusted to alter its angle (Fig. 6.1). Loosen the bottom hinge fixing screws and use the notch and a flat bladed screwdriver to move the position of the hinge to set the hinge position (Fig.
-
Page 24: Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 7. Installation Dear Installer In the UK the cooker must be installed in accordance with: Before you start your installation, please complete the details below, so that, if your customer has a problem relating to •... -
Page 25: Location Of Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Location of Cooker Checking the Parts: The cooker may be installed in a kitchen/kitchen diner but 5 pan supports Wok cradle NOT in a room containing a bath or shower. This appliance is designed for domestic cooking only. -
Page 26: Positioning The Cooker
The actual opening of the doors is slightly less but this allows 90 mm min for some protection of your hand as you open the door. ArtNo.295-0026 - Mercury 1000DF - door clearances Moving the Cooker Fig. 7.4 On no account try and move the cooker while it is plugged into the electricity supply. -
Page 27: Fitting The Flue And Vent
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Lowering the Two Rear Rollers Fig. 7.5 To adjust the height of the rear of the cooker, first fit a 13 mm spanner or socket wrench onto the hexagonal adjusting nut (Fig. -
Page 28: Fitting The Side Panels
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Fitting the Side Panels Fig. 7.9 Fit the two rear side panel brackets onto the rear of the Rear left Rear right cooker (Fig. 7.9) and secure. Make sure the brackets are correctly orientated. - Page 29 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Fig. 7.13 Locating slot Bracket Fig. 7.12 Fig. 7.14 Fig. 7.15 Fig. 7.17 Gasket* Fig. 7.16 Fig. 7.18...
-
Page 30: Fitting The Stability Bracket Or Chain
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Fitting the Stability Bracket or Chain Fig. 7.19 Unless otherwise stated, a cooker using a flexible gas connector must be secured with a suitable stability device. Stability chain Suitable stability devices are shown in Fig. -
Page 31: Gas Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Gas Connection Fig. 7.23 This must be in accordance with the relevant standards. Gas inlet block The flexible hose (not supplied with the cooker) must be in accordance with the relevant standards. -
Page 32: Electrical Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Electrical Connection Current Operated Earth Leakage Breakers The cooker must be installed by a qualified electrician, in The combined use of your cooker and other domestic accordance with all relevant British Standards/Codes of appliances may cause nuisance tripping, so we recommend Practice (in particular BS 7671), or with the relevant national... -
Page 33: Conversion To Lp Gas
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 8. Conversion to LP Gas Check the ‘Technical Data’ section at the back of the book Fig. -
Page 34: Tap Adjustment
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Refit each of the burner bases; make sure to reconnect the Fig. 8.5 ignition leads and slide the insulating sleeves in place. -
Page 35: Circuit Diagram
9. Circuit Diagram P095199 P095199 P028728 br b The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour Left-hand multi-function oven control Right-hand fan oven control Blue Left-hand multi-function oven control switch Right-hand fan oven thermostat... -
Page 36: Technical Data
29 mbar 230/400 V 50 Hz Propane 37 mbar See the appliance badge for test pressures. Dimensions Model Mercury 1082 Dual Fuel Overall height minimum 920 mm maximum 945 mm Overall width 1082 mm Overall depth 638 mm excluding handles, 700 mm including handles... - Page 37 Hotplate Efficiency Data Brand Falcon Model Identification Mercury Size 1082 Type Dual Fuel Type of Hob Number of gas burners Auxiliary / Small Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) 60.8% Semi Rapide / Medium Burner (EE gas burner) Rapide / Large Burner (EE gas burner) 58.5%...
-
Page 38: Oven Data
Oven Data Brand Mercury Model identification Mercury Type of oven Electric Mass Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Multifunction Power - conventional Power - forced air convection Volume Litres Energy consumption (electricity) - conventional kWh / cycle... - Page 39 * This information is on the appliance data badge – look in the appliance instructions to find out where the data badge is For a competitive quote and to arrange for a Mercury approved located. engineer to attend, call Consumer Services on: 0870 789 5107.
- Page 40 Registered Office: Juno Drive, Leamington Spa, Warwickshire, CV31 3RG Mercury continuously seeks improvements in specification, design and production of products and thus, alterations take place periodically. Whilst every effort is made to produce up-to-date literature, this booklet should not be regarded as an...
