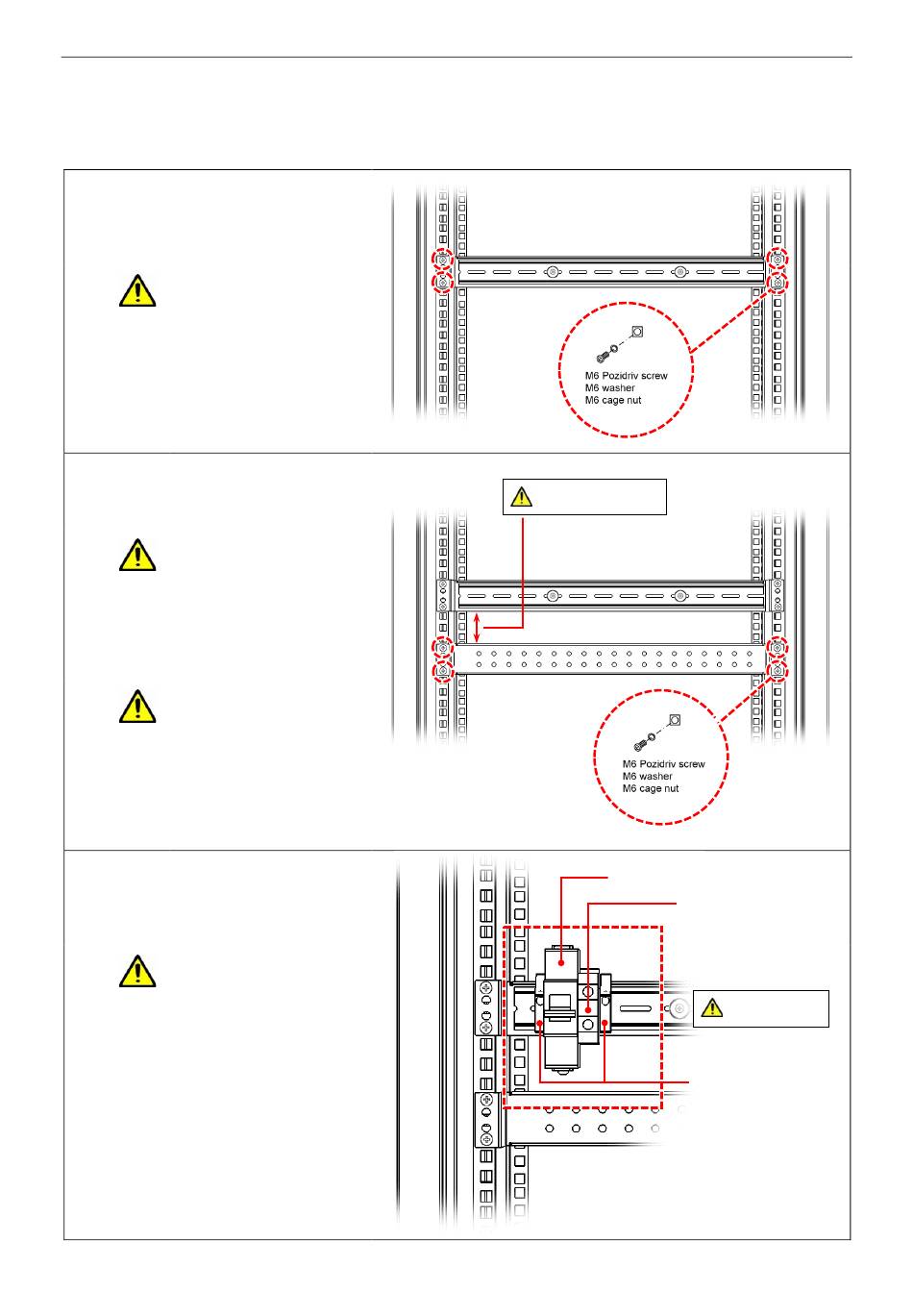

BDIST-V2000 Installation
1.
Mount the DIN rail recess bracket
into the equipment rack using the
M6 cage nuts and screws
provided.
One (minimum) earthing
cage nut and washer
must be used to ensure
that the tray support is
bonded to the rack. Use
the supplied stainless
steel M6 screw for
earthing.
2.
Mount the cable strain relief
bracket to the rack using the M6
cage nuts and screws provided.
The strain relief bracket
should be mounted 1U
below the DIN rail
bracket in order to
provide adequate strain
relief to the terminal
leads.
One (minimum) earthing
cage nut and washer
must be used to ensure
that the tray support is
bonded to the rack. Use
the supplied stainless
steel M6 screw for
earthing.
3.
Mount the BDIST-V2000 onto the
DIN rail bracket and secure the
BDIST-V2000 using 2 x standard
end-stop terminal blocks.
Ensure that the circuit
breaker is in the OFF
position.
V2000 Battery Backup System – Installation Guide
U-0456-0199.docx – Issue: 03 complete, approved
Page 10 of 20
BDIST-V2000 DIN rail bracket
Strain relief bracket 1U
below the DIN rail bracket.
BDIST-V2000 DIN rail bracket
Cable strain relief bracket
DC rated circuit breaker (80 A)
Feed-through terminal block
Circuit breaker: OFF
End-stop terminal blocks
