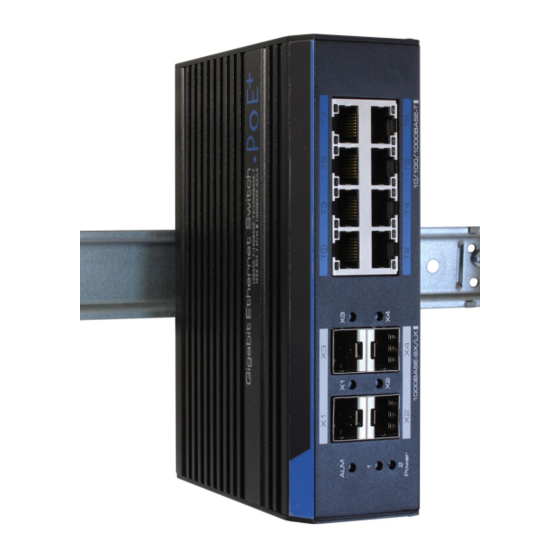

Allnet ALL-SGI8210PM User Manual

Industrial smart managed switch with 8 port gigabit hpoe + 4x sfp

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Industrial smart managed Switch

with 8 Port Gigabit HPoE + 4x SFP

ALL-SGI8210PM

USER MANUAL

Table of Contents

Need help?

Do you have a question about the ALL-SGI8210PM and is the answer not in the manual?

Questions and answers

Summary of Contents for Allnet ALL-SGI8210PM

Page 1 Industrial smart managed Switch with 8 Port Gigabit HPoE + 4x SFP ALL-SGI8210PM USER MANUAL...
Page 2: Product Introduction
60W and total output power is up to 150W. It features rapid ring, industrious class 4 protection (ESD, CS, RS, EFT), 6KV surge protection and L2 characteristics, such as VLAN, QoS, STP, etc. It fully satisfies the needs of ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 3: Product Feature
• Redundant power source. • Relay alarm: Support power no-input, Ethernet link off, PoE link off alarm by relay turn over. • Support -40℃~+75℃ wide range temperature. 1.3 Diagram ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 4 2) Relay alarm function is closed by default. If it normally works you must enter the Web management: 192.168.1.200 -> system management -> alarm management ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 6: Shipping List
• The switch will work normally under the correct voltage. Please ensure the voltage indicated on the switch corresponds to the power voltage. • To avoid the danger of electric shock, please do not open the switch case. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 7: Installation Way
Please pull out the power plug before installing or moving the switch. Grounding and anti-lightening can greatly increase the protection level of the switch. Please connect the grounding terminal to the earth area by using at least wire 20. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 8 1. Install the Din-rail hanger to the switch. 2. Install the switch to the Din-rail. 2.3.2 Wall hung Installation You can install the switch to the clean and stable wall. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 9: Cable Connection
2. Turn on the power, check if the power LED of the switch is on, that means power connected correctly. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 10: Function Configuration Guide
1. Click <start> to enter the [start] menu, select “control panel”. Double click “network connection” icon, double click the “local connection” icon, pop out “local connection status” window. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 11 3. Select "Internet protocol (TCP/IP)”, click <property> button, enter ”Internet protocol (TCP/IP) property” window. Select “use the IP address below” button, input IP address (use arbitrary value ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 12: Confirm The Network Connection By Ping Command
2. Input "ping 192.168.1.200", click <confirm> button. If there is equipment response show in the pop out dialog, that means network connection succeed, otherwise please check if the network ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 13: Cancel The Proxy Server
1. In browser, select [tool/Internet option] enter [Internet option] window. 2. Select “connection” tabs in [Internet option] window, and click [LAN Setting] button. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 14: Web Page Configuration Guide
Subnet mask: 255.255.255.0 Username: admin Password: admin After installing the equipment correctly and setting up the computer, open the browser, input the switch default address in the browser address ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 15 By default, the management VLAN is VLAN 1, same as each port of the switch. After inputting the correct password, click <Login in>, the browser will display the product Web management page as the picture below: ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 16 3.3.2 Change Language As shown below, in the upper right corner of the Web page, click on the drop-down menu bar, select [Chinese] or [English], to complete Web language Switching. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 17 The default configuration is for most cases. Please reconfigure if the default configuration does not match the actual requirements. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 19 3.3.8 Quit Click the [Exit] menu item to return to the system status page, the login box will pop out automatically till the next click on the page. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 20: Web Management
4 Web Management 4.1 System Status The meaning of specification in the page shown as below. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 21: Port Configuration
On the [Port security / Port Settings] page, you can observe all the current switch port status information and can set [Port Enabled], [port rate], [Flow Control], [Port range],shown as figure 4-1. The specification meaning in this page shown as below ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 22 1-8 port port rate of 10/100 / 1000Mbps adaptive for 11-12 ports for uplink optical port, at fixed rate of 1000Mbps. 9-12 port is fixed uplink Ethernet ports at a rate of 10/100/1000Mbps adaptive. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 23 • Such as control the rate of 1-5 ports to 50Mbps，limited type is Broadcast Turn on ports rate Input 1-5 in port range, input rate is 50, limited type is Broadcast packet Click save ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 24: Vlan Setting
Enter 1-10 within the port range(or click on the box in front of the ports) Choose Trunk on the menu (Switch connection is generally used with Trunk mode) Enter 20 to default VLAN ID Enter 1-10 to VLAN forwarding ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 25 The default port VLAN and allowed VLAN must be existed VLAN. 4.3.2 VLAN Forwarding On [VLAN / VLAN forwarding] page, you can observe the current port VLAN forwarding information, shown in figure 4-4. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 26: Trunk Management
On [LACP / TRUNK] page, you can observe the current port link convergence information, shown in the following figure. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 27 VLAN consistent configuration, including permitted VLAN, the default port of VLAN ID. Link type on the ports is consistent. 4.4.2 RSTP 4.4.2.1 RSTP Uses STP (Spanning Tree Protocol) is established in accordance with IEEE 802.1D ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 28 Blocking: Only BPDU is received and processed, no user traffic forwarded. Disabled: consider blocking or link disconnection. 5. The designated bridges and designated ports The meaning of designated bridges and designated ports is shown below. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 29 On [LACP / RSTP ] page can observe the current port RSTP information on the switch. The meaning of main parameters of the pages as below. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 30 Path cost, enter "0" is automatically detected Port priority, choose “128” Point to point, choose “Yes” Edge port, choose “No” Click save ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 31: Port Security
1 belongs to VLAN20 Enable static address latch function of switch B Enter the MAC address of switch B • Enter VLAN ID with 20 • Enter port with 20 ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 32 In [port security / 802.1X authentication] page, you can modify / 802.1X authentication function set, as shown below: ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 34 NMS. On the [Network management / SNMP Settings] page, you can enable / disable the SNMP service ad set the community name, etc. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 35 Supervision also periodically send all log messages to predefined recipients. On the [Network management / Email alarm] page, you can turn on / off Email alarm service. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 36 Receipt email address should input email address of the email receiver ***@163.com Enter recipient or webmaster email in email address, the address is ***@163.com Mail intervals is 12 hours Click Save to finish the procedure. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 37 Mirror] function setting, as below: The page parameter as the sheet show: Configuration Guide: • Such as port 3 monitor port 2 Import data traffic Open Port Mirror ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 38 Correspondence. IGMP membership [Network Management/ IGMP Snooping] Page, Modify and setting [IGMP Snooping] function as shown: Multicast Snooping Parameter meaning as shown in the Table: ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 39: Network Statistics
On the [Network statistics / Flow statistics] page, you can view the number of data packets and bytes transferred for each port, shown in figure 4-13. The main parameters of the above illustration are described in the table below. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 40 MAC address is the basic and premise for data frame fast forwarding. On [Network statistics /MAC table] page, you could check MAC address of each port, as the figure shows: ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 41: System Management
IP address is a 32 bit length address connected on Internet equipment. IP address consists of two parts: Network-Id and Host-Id. On this page, you can check the IP address, etc. for this device: ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 42 4.8.2 User Management 4.8.3 On this page, you could modify or add one user with password, as figure shows: The description of main parameter as the table shown. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 43 On [System management/ Log information] page, you could check the time and type of event as shown here: Figure 4-17 Log information The received frame statistics and transmit frame statistics are shown in this table. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 44 On [System management/ File management] page. You could check configure document, software upgrade, restore factory setting and reboot system as shown in the figure: The main parameter descriptions are shown as the following table. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 45: Poe Management
2. Each port of the product is to provide maximum output power of 30W, if user setting exceeds 30W, 30W is still the maximum power output only. The information of main parameter description as the table shown. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 47: Qos Management
Priority 2 and 3 mapped to the second priority queue. 4 and 5 priority mapping to the third queue. 6 and 7 mapped to the highest ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 48 In DSCP ID scope Input 1-10，DSCP Priority Choose the seventh queue priority Click Setting and save Instruction: When start using 802.1P &DSCP/TOS QoS at the same time, DSCP/TOS QoS Priority First. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 49: Environment Protection
/ regulatory requirements. ALLNET GmbH Computersysteme declares that the device ALL-SGI8210PM is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC or 2014/30/EU. The Declaration of conformity can be found under this link: www.allnet.de/downloads.html...
Page 50 Maistrasse 2 82110 Germering Your request should include: (i) the name of the covered binary, (ii) the version number of the ALLNET product containing the covered binary, (iii) your name, (iv) your company name (if applicable) and (v) your return mailing and email address (if available).
Page 51 "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 52 Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 53 (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 54 WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 55 `show c'; they could even be mouse-clicks or menu items--whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 57 The former contains code derived from the library, whereas the latter must be combined with the library in order to run. GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 58 Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 59 Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 60 Library and of the other library facilities is otherwise permitted, and provided that you do these two things: ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 62 <one line to give the library's name and a brief idea of what it does.> Copyright (C) <year> <name of author> This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
Page 63 Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob' (a library for tweaking knobs) written by James Random Hacker. <signature of Ty Coon>, 1 April 1990 Ty Coon, President of Vice That's all there is to it! ALLNET GmbH Computersysteme 2017 – All rights reserved Errors and changes reserved...
