Summary of Contents for SMART FSE-420

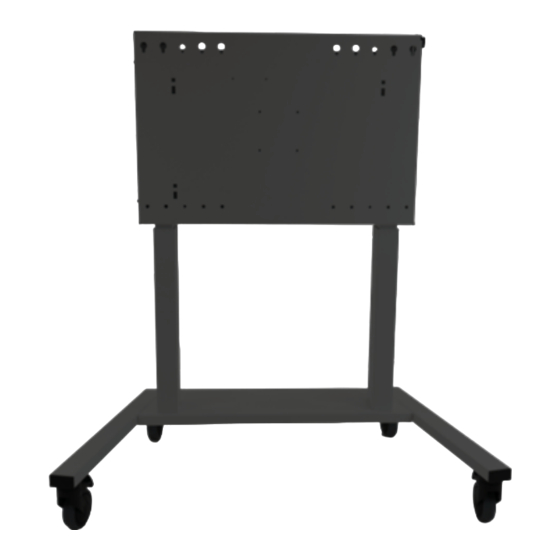

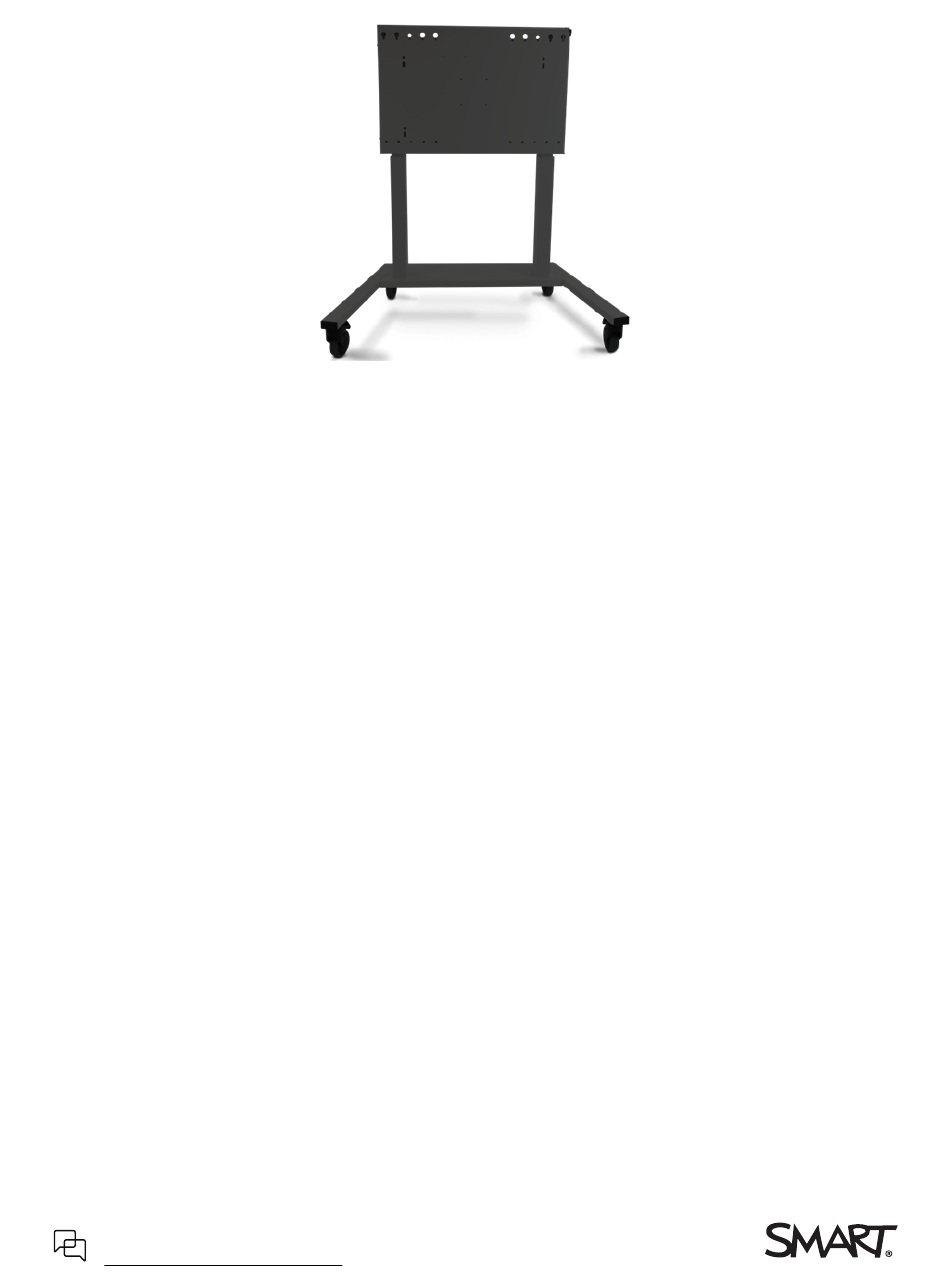

- Page 1 SMART electric height-adjustable mobile stand User guide FSE-420 (S420-1) Was this document helpful? smarttech.com/docfeedback/171845...
- Page 2 © 2019–2023 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.
-
Page 3: Important Information
Use the stand only for it’s intended use as described in these instructions. Do not use attachments not recommended by SMART Technologies. Do not operate the stand if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if it has been dropped into water. - Page 4 CAUTION—Use the FSE-420 stand only with displays that measure between 55" (139 cm) and 86" (219 cm) diagonally and that weigh between 77 lb. (35 kg) and 200 lb. (91 kg). Using the stand with other displays might be unstable and could result in injury.
- Page 5 Do not use the stand if the power cord is damaged. Replace a damaged power cord only with a new cord and power bar provided by SMART Technologies or a qualified service technician. Do not modify or make changes to the control unit or hand switches.
- Page 6 Important information Caution Operate the stand only indoors. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the stand. Use only a power extension cord that is rated for the stand’s electrical load. ...
-
Page 7: Table Of Contents
Contents Important information Chapter 1 About the stand Features Components Accessories More information Chapter 2 Assembling the stand Environmental requirements Considerations when assembling the stand Chapter 3 Using the stand Moving the stand Raising, lowering, calibrating, and resetting the stand Chapter 4 Troubleshooting the stand Resolving general issues Product labels... -
Page 8: Chapter 1 About The Stand
Features Components Control panel Accessories More information Features The SMART electric height-adjustable mobile stand has the following features: Feature Description Powered height With its 26" (66 cm) of electric-powered height adjustment, you can easily adjustment adjust the height of a mounted display with the press of a button. -
Page 9: Components
Chapter 1 About the stand Components The stand consists of the following components: Description Mounting holes Control panel Locking casters [Not shown] Storage cabinet (rear surface) [Not shown] Surge-protected power bar (mounted inside the cabinet) smarttech.com/kb/171845... -
Page 10: Accessories
Chapter 1 About the stand Control panel You can raise and lower the stand with the control panel. It’s located on the right side of the stand, but you can remove and attached it to a mounted display. See the illustrated installation instructions for information on how to move the control panel. -
Page 11: More Information
Chapter 1 About the stand More information See the following resources for more information: FSE-420 specifications: smarttech.com/kb/171846 FSE-420 illustrated installation instructions: smarttech.com/kb/171843 These documents are available in the Support section of the SMART website: smarttech.com/support. smarttech.com/kb/171845... -
Page 12: Chapter 2 Assembling The Stand
Chapter 2 Assembling the stand Environmental requirements Considerations when assembling the stand The stand requires assembly. Consult the SMART electric height-adjustable mobile stand illustrated installation instructions (smarttech.com/kb/171843) included with the stand for assembly instructions. Warning Failure to follow the installation instructions included with the stand could result in personal injury or product damage. - Page 13 SMART Board 6000S Series The wall mount is required. SMART Board 7000R Series SMART Board MX (V4) 86" models SMART Board GX (V2) 86" models Note Please contact SMART Support (smarttech.com/contactsupport) if you need a WM-SBID-200 wall mount. smarttech.com/kb/171845...
-
Page 14: Chapter 3 Using The Stand
Chapter 3 Using the stand Moving the stand Raising, lowering, calibrating, and resetting the stand Calibrating the stand Raising and lowering the stand Resetting the stand Moving the stand Warning Do not use the handles to lift the stand. ... -
Page 15: Raising, Lowering, Calibrating, And Resetting The Stand
Chapter 3 Using the stand 8. After the stand is moved, flip the caster brakes down to lock them and secure the stand in place. 9. Connect the power cable to the outlet and secure any cables that run along the floor. Raising, lowering, calibrating, and resetting the stand Warnings... - Page 16 Chapter 3 Using the stand To lower the stand 1. Press and hold the Down button on the control panel. 2. Release the Down button to stop lowering the display. Resetting the stand If the stand lowers but does not move when you try raising it or if you replace the controller, perform a factory reset by following the steps below.
-
Page 17: Chapter 4 Troubleshooting The Stand
Unplug the power cable for the stand. Wait 15 minutes and then reset the stand. The display doesn’t fit Ensure you’re using the mounting plate supplied with the SMART on the stand. display. If you’re using the stand with a third-party display, ensure the stand supports the display’s dimensions and mounting patterns see (see... -
Page 18: Product Labels
Product labels FSE-420 Subassemblies Laptop shelf – FSE-420-LS 6 outlet power bar (Model TPL615B) smarttech.com/kb/171845... - Page 19 Product labels Wall mount bracket – WM-SBID-200 (Model W200-1) smarttech.com/kb/171845...
- Page 20 SMART Technologies smarttech.com/support smarttech.com/contactsupport smarttech.com/kb/171845...
