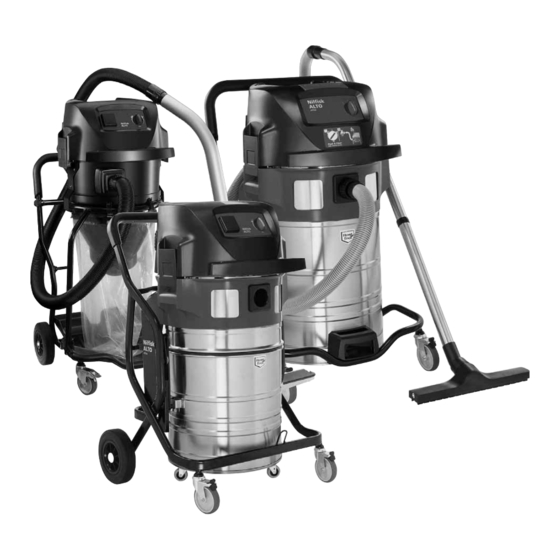

- Page 1 ATTIX 961-01 ATTIX 963-21 ED XC ATTIX 965-21 SD XC Operating instructions 107401235 F (01. 2022)
-
Page 2: Table Of Contents
3.1.1 Taking accessories out of the packaging ......8 3.1.2 Attaching the suction pipe holder to the suction pipe ..8 3.1.3 Inserting the filter bag (ATTIX 961-01) .........9 3.1.4 Inserting the disposal bag (ATTIX 965-21 SD XC) .....10 3.1.5 Inserting the disposal bag (ATTIX 963-21 ED XC) .....11 Control / Operation Connections ...............12... -
Page 3: Important Safety Instructions
ATTIX 9 STD 1 Important safety instructions Symbols used to mark Prior to using the appliance for the first time, be sure to read instructions this document through and keep it ready to hand. DANGER Danger that leads directly to serious or irreversible injuries, or even death. - Page 4 ATTIX 9 STD Any other use is considered as improper use. The manufacturer ac- cepts no liability for any damage resulting from such use. The risk for such use is borne solely by the user. Proper use also includes proper operation, servicing and repairs as specified by the manufacturer.
- Page 5 ATTIX 9 STD Risks Electrical components DANGER Electric shock due to faulty mains connecting lead. Touching a faulty mains connecting lead can result in seri- ous or even fatal injuries. 1. Do not damage the mains power lead (e.g. by driving over it, pulling or crushing it).
- Page 6 ATTIX 9 STD Picking up liquids CAUTION Picking up liquids. ATTIX 965-21 SD XC: Due to their construction vacuum clean- ers with a removable tank (SD) do not have an automatic level indicator. There is a risk of damage to the vacuum cleaner due to overfilling or of damage due to leakage of the picked up liq- uid.
-
Page 7: Description
ATTIX 9 STD 2 Description Operating elements Optional accessories / Option depending on model Original Instructions... -
Page 8: Operating Panel
17 Operating knob for filter cleaning 18 Inlet for fresh air 19 Outlet for waste air 20 Disposal bag Operating panel ATTIX 961-01 ATTIX 963-21 ED XC, ATTIX 965-21 SD XC Optional accessories / Option depending on model Original Instructions... -
Page 9: Before Starting The Cleaner
ATTIX 9 STD 3 Before starting the cleaner Assembling the 1. Take vacuum cleaner and vacuum cleaner accessories out of the pack- 3.1.1 Taking accessories out aging. of the packaging 2. The mains plug should not yet be inserted into a socket. 3. -
Page 10: Inserting The Filter Bag (Attix 961-01)
ATTIX 9 STD 3.1.3 Inserting the filter bag 1. The mains plug should not (ATTIX 961-01) yet be inserted into a socket. 2. Apply parking brakes (A) on both castors. 3. Open the retaining clamps (B) and remove the upper section of the vacuum clean- 4. -
Page 11: Inserting The Disposal Bag (Attix 965-21 Sd Xc)
ATTIX 9 STD 3.1.4 Inserting the 1. The mains plug should not disposal bag yet be inserted into a socket. (ATTIX 965-21 SD XC) 2. Apply parking brakes (A) on both castors. 3. Swing the bar (B) upwards. 4. Use the handle (C) to pull the dirt tank out of the vacuum cleaner. -
Page 12: Inserting The Disposal Bag (Attix 963-21 Ed Xc)
ATTIX 9 STD 3.1.5 Inserting the 1. The mains plug should not disposal bag yet be inserted into a socket. (ATTIX 963-21 ED XC) 2. Apply parking brakes (A) on both castors. 3. Open clamping ring (B). 4. Insert disposal bag (C) into clamping ring. -
Page 13: Control / Operation
ATTIX 9 STD 4 Control / Operation Connections 1. Connect the suction hose. 4.1.1 Connecting the suction hose 4.1.2 Electrical connection 1. Ensure that the cleaner is switched off. 2. Insert the power cord into a The operating voltage shown on properly installed and fused the rating plate must corres pond socket with earthing contact. -
Page 14: Suction Power Control
ATTIX 9 STD 4.2.3 Suction power control Switch Function position The suction power control switch allows precise adaptation of the suction power for different cleaning tasks. 4.2.4 Auto-On/Off-Operation 1. Switch off the vacuum clean- - "auto" switch position 2. Switch off the power tool. 3. -
Page 15: Cleaning The Filter Element
ATTIX 9 STD Cleaning the filter element 4.3.1 Cleaning the filter element (Push&Clean System) Only for vacuum cleaning without a filter bag and without a cloth insert filter. If suction performance drops: 1. Turn switch to position "II" (maximum suction power). 2. -
Page 16: Applications And
ATTIX 9 STD 5 Applications and techniques Techniques If used correctly, additional accessories, suction nozzles and suc- tion hoses can enhance the cleaning action and reduce the cleaning effort. Effective cleaning is achieved if you follow just a few guidelines in combination with your own practical experience in special fields. -
Page 17: Switching The Vacuum Cleaner Off And Storage
ATTIX 9 STD 6 After finishing work Switching the vacuum 1. Switch off the cleaner and cleaner off and storage pull the mains plug out of the socket. 2. Wind up the power cord and hang it on the handle (A). Begin winding up the cord at the cleaner end and not the plug end to prevent the pow-... -
Page 18: Maintenance Plan
ATTIX 9 STD 7 Maintenance Maintenance plan ATTIX 961-01: After finishing work When required 7.2.1 Emptying dirt tank 7.2.3 Replacing the filter bag 7.2.6 Replacing filter element ATTIX 965-21 SD XC: After finishing work When required ... -
Page 19: Maintenance Work
ATTIX 9 STD Maintenance work 1. Switch off the vacuum clean- 7.2.1 Emptying the dirt tank er and pull the mains plug (ATTIX 961-01) out of the socket. 2. Apply parking brakes both castors. After emptying the tank: clean the... -
Page 20: Emptying The Dirt Tank (Attix 965-21 Sd Xc)
ATTIX 9 STD 7.2.2 Emptying the dirt tank 1. Switch off the vacuum clean- (ATTIX 965-21 SD XC) er and pull the mains plug out of the socket. 2. Apply parking brakes (A) on both castors. Removing the dirt tank: 3. -
Page 21: Replacing The Filter Bag(Attix 961-01)
ATTIX 9 STD 7.2.3 Replacing the filter bag 1. Switch off the vacuum clean- (ATTIX 961-01) er and pull the mains plug out of the socket. 2. Apply parking brakes (A) on both castors. If the filter bag has heavy dirt, re- move the bag by tilting the tank. -
Page 22: Replacing The Disposal Bag (Attix 965-21 Sd Xc)
ATTIX 9 STD 7.2.4 Replacing the disposal 1. Switch off the vacuum clean- er and pull the mains plug (ATTIX 965-21 SD XC) out of the socket. 2. Apply parking brakes (A) on both castors. Removing the disposal bag: 3. Swing the bar (B) upwards. 4. -
Page 23: Replacing The Disposal Bag (Attix 963-21 Ed Xc)
ATTIX 9 STD 7.2.5 Replacing the disposal 1. Switch off the vacuum clean- er and pull the mains plug (ATTIX 963-21 ED XC) out of the socket. 2. Apply parking brakes (A) on both castors. Remove the disposal bag: 3. Open clamping ring (B). 4. -
Page 24: Replacing Filter Element
ATTIX 9 STD 7.2.6 Replacing filter element 1. Switch off the vacuum clean- er and pull the mains plug Never use the vacuum clean er out of the socket. without a filter. 2. Apply parking brakes (A) on both castors. 3. -
Page 25: Troubleshooting
‡ No suction power during > Tank is full. • Switch off the cleaner. Empty wet cleaning the tank. (ATTIX 961-01) ‡ Voltage fluctuations > Impedance of power supply is • Connect the cleaner to another too high. socket closer to the fuse box. -
Page 26: Further Information
ATTIX 9 STD 9 Further information 1. Make the old cleaner unusable immediately. Recycling the vacuum 2. Unplug the cleaner and cut the power cord. cleaner 3. Do not discard of electrical appliances with household waste. Equipment marked with the crossed-out wheeled bin sym- bol indicates that used electrical and electronic equipment should not be discarded together with unseparated house- hold waste. -
Page 27: Technical Data
Disposal bag (24 pcs.) ATTIX 963-21 ED XC 302003723 Filter element 107400562 Cloth insert filter ATTIX 961-01, ATTIX 965-21 SD XC 302002894 Nilfisk-Foam-Stop (6 x 1 l) ATTIX 961-01, ATTIX 965-21 SD XC 8469 Optional accessories / Option depending on model Original Instructions... -
Page 28: Declaration Of Conformity
Üretici firma: Product / Produkt / Producto, Toode, Produit, Tuote/ Πродукт / Προϊόν / Termék / Proizvod / Prodotto / ATTIX 961-01, ATTIX 965-21 SD XC Produktas / Produkts / Artikel / Produtos / Produs / Izdelek / Ürün Description / Popis / Beschreibung / Beskrivelse / Descripción / Kirjeldus / La description / Kuvaus /... - Page 29 Nilfisk déclare sous notre seule responsabilité Noi, Nilfisk Prin prezenta declarăm pe propria que le produit mentionné ci-dessus est răspundere, că produsul mai sus menționat conforme aux directives et normes suivantes. este în conformitate cu următoarele standarde și directive Me, Nilfisk täten vakuutamme omalla Мы, Nilfisk настоящим...
- Page 30 CA11 9BQ UK Hereby declare under our sole responsibility that the Products: VAC - Commercial - Wet/Dry Description: 220-240V, 110-120V 50-60Hz, IPX4 Type: ATTIX 961-01, ATTIX 965-21 SD XC Are in compliance with the following standards: EN 60335-1:2012+A11:2014+A13:2017 EN 60335-2-69:2012...
- Page 31 HEAD QUARTER FRANCE MEXICO SPAIN Nilfi sk SAS Nilfi sk de Mexico, S. de R.L. de C.V. Nilfi sk S.A. DENMARK 26 Avenue de la Baltique Pirineos #515 Int. Torre d’Ara, Nilfi sk A/S Villebon sur Yvette 60-70 Microparque Passeig del Rengle, 5 Plta. 10 Kornmarksvej 1 91978 Courtabouef Cedex Industrial WSantiago...
