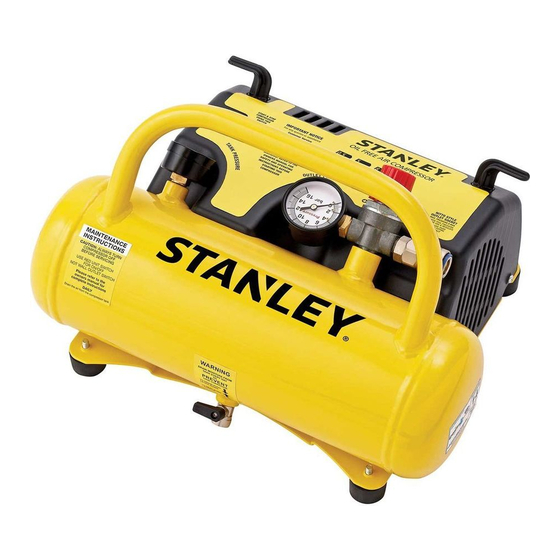

- Page 1 0.5HP 5L OIL FREE AIR COMPRESSOR For service, spare parts or product information, MODEL NO. please contact Smart Marketing Group Pty. Ltd. AC6511 AUST. 1300 660 457 N.Z. 0800 474 876 03500 08/16...
-
Page 2: Table Of Contents
SUGGESTED APPLICATIONS CONTENTS You may use most light duty air tools with this compressor. Some Section Page examples of light duty tools are: • Ball Inflator Contents • Toy Inflator Suggested Applications • Tyre Inflator Introduction • Mini Airbrush • Stapler Guarantee 3 –... -
Page 3: Introduction
What is not covered. INTRODUCTION • Commercial use of compressor. Dear Customer, • Use of compressor in a commercial premises. Thank you for purchasing this compressor which has passed through • Damage caused by incorrect fuel or incorrectly mixed 2 stroke fuel. our extensive quality assurance processes. - Page 4 COMPLETE WARRANTY STATEMENT – COMPRESSOR GROUP As soon as you have purchased the air compressor, we recommend Damage caused to attached equipment or third party accessories that you check to make sure it is intact and that you read the operating will not be covered under this warranty.
-
Page 5: General Safety Instructions
LUBRICATION OF COMPRESSOR WORK AREA This air compressor is OIL FREE. Therefore there is NO oil used for Work areas and benches should be kept tidy. Cluttered benches and lubrication. work areas can cause accidents. Floors should be kept clean and free from rubbish. - Page 6 DO NOT ABUSE THE POWER CORD DISCONNECT AIR COMPRESSOR Never yank or pull on the power cord to disconnect it from the mains Ensure that the air compressor is disconnected from the mains supply supply socket. Never carry or pull your air compressor by its power when not in use, before servicing, making adjustments or when cord.
- Page 7 CHECK DAMAGED PARTS PERSONAL SAFETY Before using the air compressor it should be carefully checked to Clothing determine that it will operate properly and perform its intended Do not wear loose clothing, jewellery or anything that could get caught function. in moving machinery.
-
Page 8: Electrical Information
ELECTRICAL DATA IMPORTANT This air compressor is fitted with a sealed electrical connection plug that is compatible with the mains power supply for Australia / New Zealand and meets the requirements of Australian Standards. This air compressor must be connected to a supply voltage that is equal to that stated on the rating label. -
Page 9: Components And Controls
PIC. 1 COMPONENTS AND CONTROLS Pic. 1 1. Regulator 2. Outlet pressure gauge - large 3. On / Off switch 4. Tank pressure gauge - small 5. Handle 6. Tank 7. Rubber feet 8. Tank drain valve 9. ‘Nitto style’ outlet socket 10. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS PIC. 2 Unpacking Carefully unpack your air compressor. Dispose of all packing material in an environmentally responsible manner. Assembly Your air compressor requires minor assembly before initial operation. Check that you have all required components required for assembly and initial use. - Page 11 ATTACHING COMPRESSOR TO WALL PIC. 4 1. Select a suitable location, not in a walkway. 2. Using the large wall bracket as a template mark and drill two mounting holes. Wall Bracket 3. Using two suitable screws (not supplied) attach the wall bracket (Large) to the wall, Pic.
- Page 12 STARTING AND STOPPING YOUR AIR PIC. 6 COMPRESSOR Pic. 6 NOTE: Always ensure that you plug your air compressor into a standard 240V AC power point. Never use an extension cord as this ON/OFF can lead to a voltage drop which may cause power loss and over Switch heating.
- Page 13 RUNNING IN YOUR NEW AIR COMPRESSOR USING THE AIR COMPRESSOR Your new air compressor does not require running Before starting run through this simple list: 1. Drain tap – open and drain tank This compressor is ready to use immediately as a portable compressor. 2.
- Page 14 PIC. 7 The configuration of tools and accessories can be varied to suit your particular requirements. A basic recommended set up is shown in Pic. 7 (accessories not included). When you have finished using your air compressor follow these simple steps: 1.
- Page 15 ADJUSTING THE PRESSURE PIC. 8 To adjust the outlet air pressure, use the red coloured regulator knob and check the pressure on the outlet pressure gauge, Pic. 8. If the pressure needs to be lower, turn anti clockwise. If the pressure needs to be higher, turn clockwise. Use the gauge to ensure you set the correct working pressure.
- Page 16 AIR TAP PIC. 10 Pic. 10 This air compressor is fitted with a ‘Nitto style’ socket. To use: 1. Slide the outer collar down. 2. Push in the male plug (not included). 3. Release the collar. 4. Fully and completely push the male plug (not included) into the female socket until it clicks.
-
Page 17: Maintenance
MAINTENANCE Daily: Before Use 1. Seal the tank drain tap, see page 16, Pic. 11 & 12. 2. Check safety valve operation, see page 15, Pic. 9. After Use 1. Open the tank drain tap, see page 16, Pic. 11 & 12. 2. -
Page 18: Parts Diagram
PARTS DIAGRAM Part Description SMG Part No. Output Regulator 95 AC6511REG Outlet Pressure Gauge 95 AC6511OPG Tank Pressure Gauge 95 AC6511TPG Rubber Stopper with Bolt & Nut 95 AC6511RS Drain Tap 95 AC6395DT Nitto Style Socket Fitting 95 AC6395NSF Motor Cover 95 AC6511MC Storage Clip 95 AC6511WC... -
Page 19: Technical Information
TECHNICAL INFORMATION SUGGESTED APPLICATIONS You may use most light duty air tools with this compressor. Specifications Some examples of light duty tools are; Air Compressor AC6511 • Ball Inflator Voltage 240V AC ~ 50Hz • Toy Inflator Motor Electric 0.5Hp •... -
Page 20: Contact Information
For any queries or assistance call Customer Service AUST. 1300 660 457 NZ 0800 474 876 Hours of operation: Monday to Friday 8.00am - 5.00pm AEST Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 24 month warranty.
