Summary of Contents for Kobold HND-PS19 PS33 Series

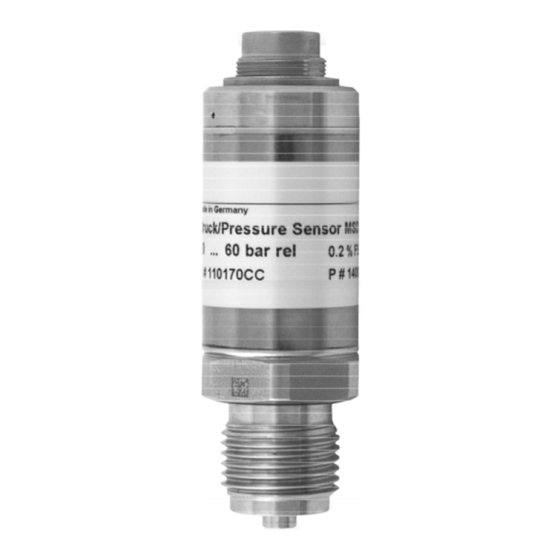

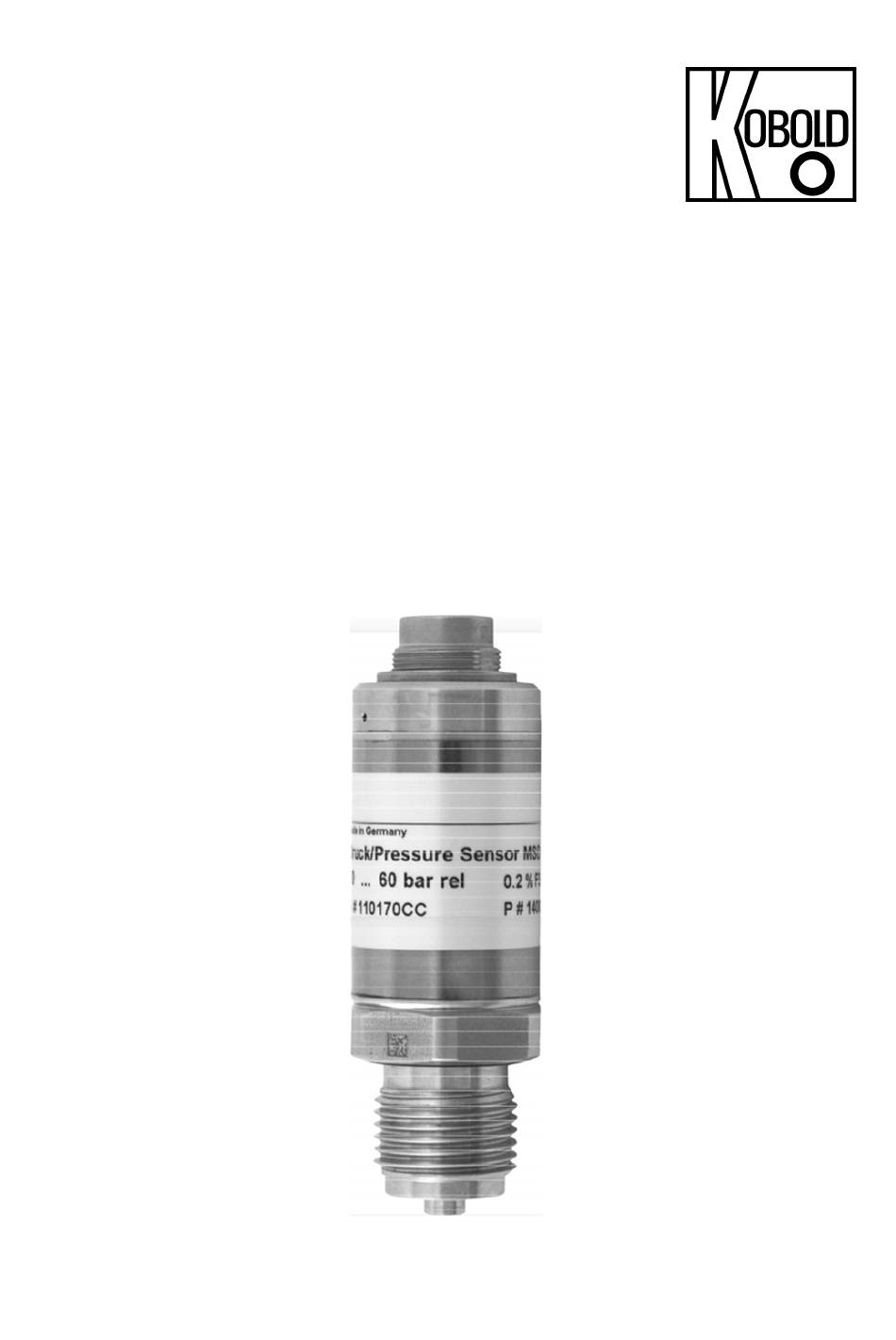

- Page 1 Digital Pressure Sensors Model HND-PS19…PS33, HND-PA20…PA23 HND-P105, HND-P210, HND-P215...
-
Page 2: Table Of Contents
Dimensions ....................7 Disposal ......................8 EU Declaration of Conformance ..............9 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 HND-PS-PA K04/0323... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Regulation Use
HND-PS-PA 4. Regulation Use Any use of the device, which exceeds the manufacturer’s specification, may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage. The pressure sensors are designed for the connection to a hand-held instrument of the following types: HND-P105, HND-P210, HND-P215 The sensors have following application areas: ... - Page 5 HND-PS-PA e) Instructions for mounting: When mounting the instrument, ensure that the sealing faces of the instrument and the measuring point are clean and undamaged. Screw in or unscrew the instrument only via the flats using a suitable tool (fixed spanner, wrench size 27 mm) and the prescribed torque.
-
Page 6: General Safety Requirements
HND-PS-PA 6. General Safety requirements This device has been designed and tested in accordance with the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaranteed unless the standard safety measures and special safety advices given in this manual will be adhered to when using the device. 1. -
Page 7: Technical Information
HND-PS-PA 7. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 8. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 9. -
Page 8: 10. Disposal
HND-PS-PA 10. Disposal Note! Avoid environmental damage caused by media-contaminated parts Dispose of the device and packaging in an environmentally friendly manner Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. -
Page 9: 11. Eu Declaration Of Conformance
HND-PS-PA 11. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Pressure Sensors model: HND-PS19…PS23 and PA20…PA23 to which this declaration relates is in conformity with the standards noted below:...
