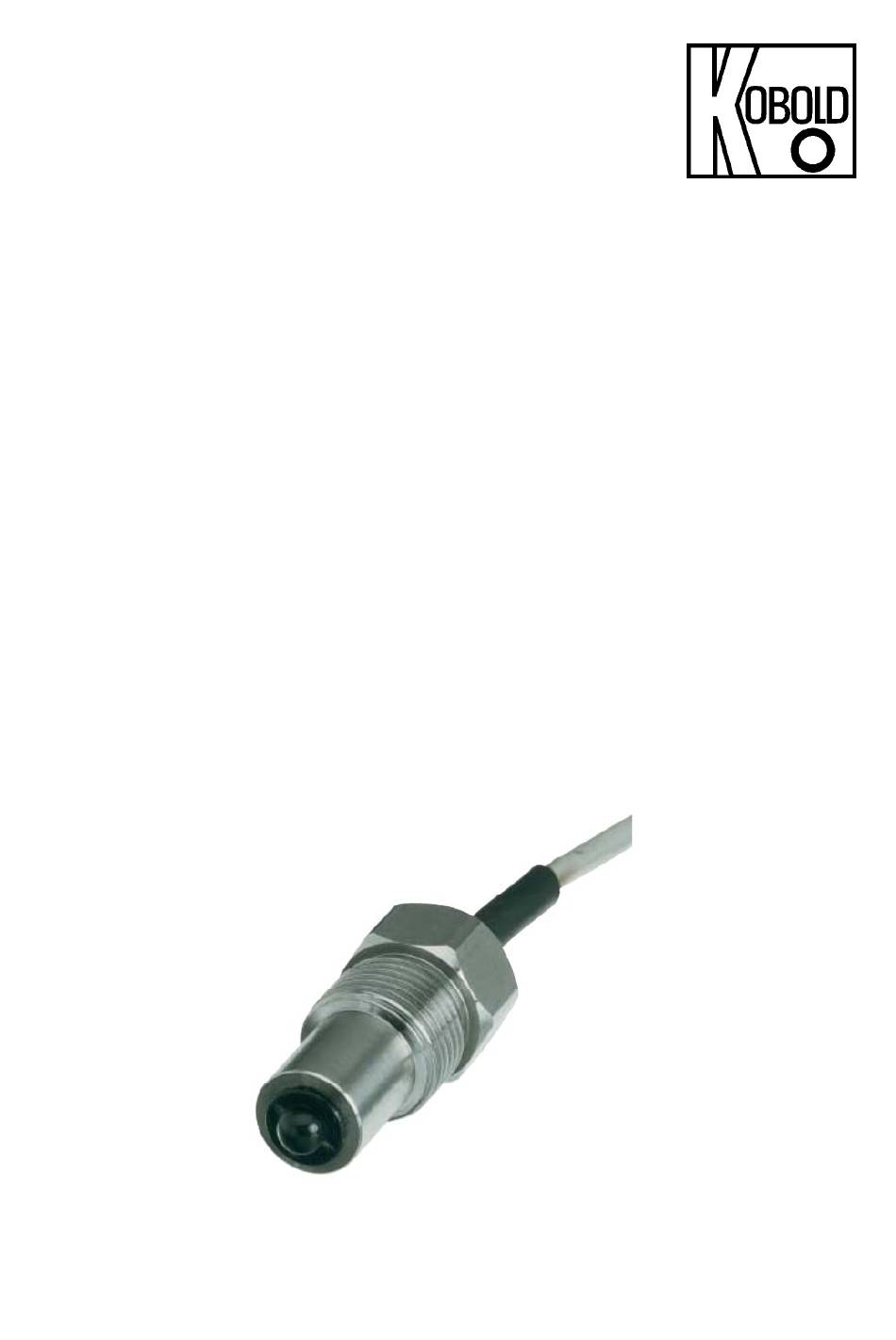

  • Page 1 Operating Instructions Optical Level Sensor Model: OPT...

  • Page 2: Table Of Contents

    7.2. Terminal Connection Diagrams ............5 8. Technical Information ..................6 9. Order Codes ....................7 10. Dimensions ....................7 11. Declaration of Conformance ................. 8 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim, Germany Tel.: +49 (0)6192-2990 Fax: +49(0)6192-23398 E-mail: info.de@kobold.com Internet: www.kobold.com...

  • Page 3: Instrument Inspection

    3. Instrument Inspection All Instruments are inspected before shipping and sent out in perfect condition. Should damage to a device be visible, we recommend a thorough inspection of the delivery packaging. In case of damage, please inform your parcel service / forwarding agent immediately, since they are responsible for damages during transit.

  • Page 4: Mechanical Connection

    6. Mechanical Connection Before installation: Make sure that the maximum operating pressures and temperatures allowed for this device are not exceeded (see 8. Technical Information). Avoid mounting the Optical Level Sensor vertically downward from the top of the container cover. In this position, drops accumulating on the optical sensor can cause the sensor to report an apparent, false, simulated level (switching point reached).

  • Page 5: Electrical Connection

    7. Electrical Connection 7.1. General Information Attention! Make sure that the voltage values of your system correspond with the voltage values of the measuring unit. Make sure that the supply wires are de-energised. 7.2. Terminal Connection Diagrams OPT K02/0410 Page 5...

  • Page 6: Technical Information

    8. Technical Information Operating temperature: -20 to +80 °C Operating pressure: max. 10 bar Protection: IP 68 Material: Housing: OPT-_1_ _: Polypropylene OPT-_2_ _: St. steel (1.4301) Sensor: Polysulfone Polyurethane 1.5 m, ∅ 4.5 mm Cable: O-ring: OPT-_2_ _: FPM Hexagon nut: OPT-_ _10: Polyamide Flat gasket:...

  • Page 7: Order Codes

    9. Order Codes Example: OPT-0 1 10 Model Version Housing material Connection female thread 0 = 5-12 V , NPN, OEM (without CE) 10 = M14 with nut 4 = 24 V ± 15 %, PNP 1 = Polypropylene OPT- 22 = G ½...

  • Page 8: 11. Declaration Of Conformance

    11. Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Optical Level Sensor model: OPT –4..., OPT –5... and OPT-6 to which this declaration relates is in conformity with the standards noted below:...
