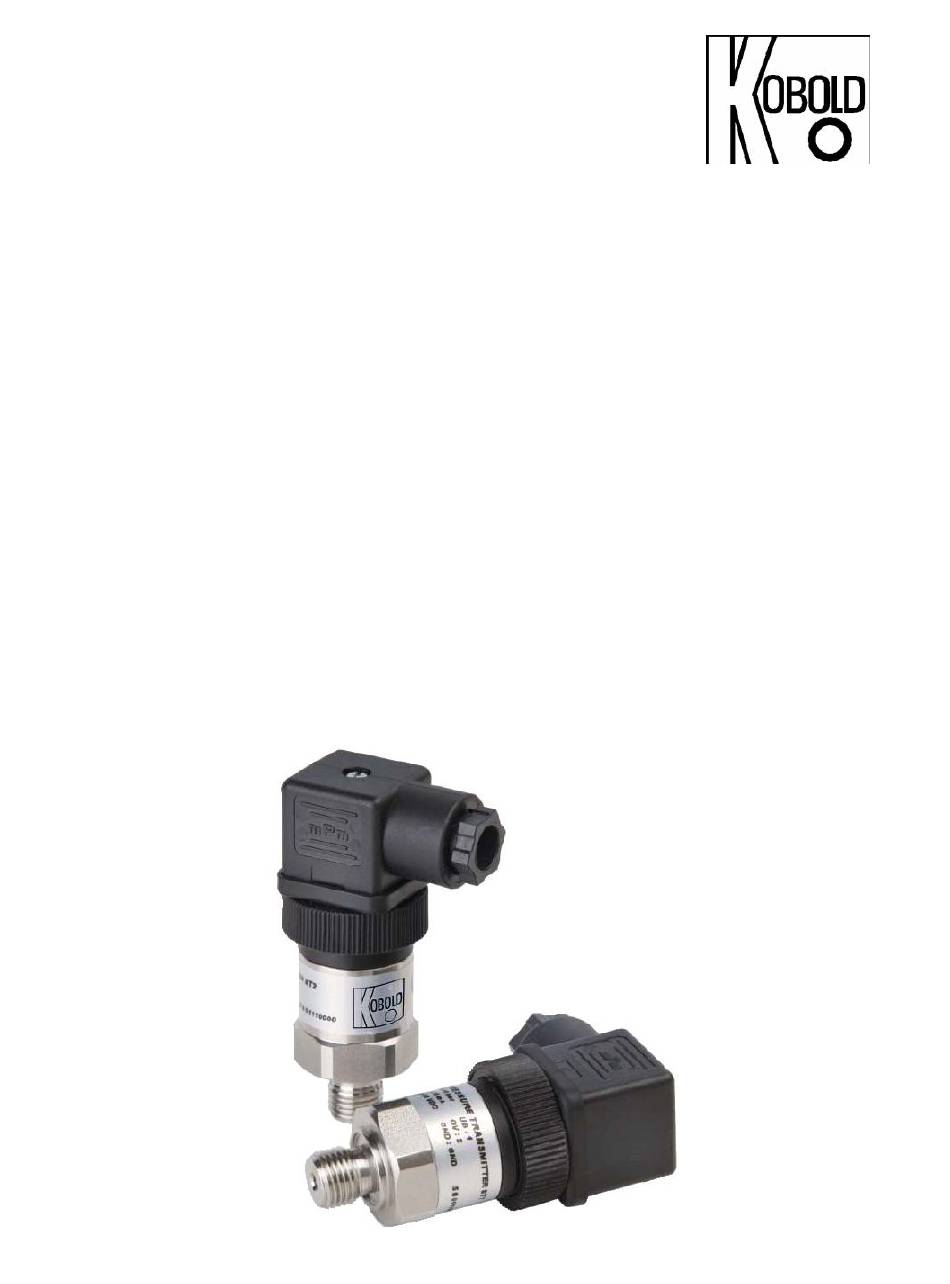

- Page 1 Operating Instructions Pressure Sensor with Ceramic Sensor Element Model: SEN-9601...
-
Page 2: Table Of Contents
Electrical Connection....................5 Maintenance ......................6 Product Label ......................6 Technical Information....................6 11. Dimensions....................... 8 12. Declaration of Conformance ..................9 Manufactured and sold by: Kobold Instruments Inc. 1801 Parkway View Drive Pittsburgh, PA 15205 Tel: 412-788-2830 Fax: 412-788-4890 E-Mail: info@koboldusa.com Internet:www.koboldusa.com... -
Page 3: Note
Scope of delivery: The standard delivery includes: • Pressure Sensor model: SEN-9601 • Operating Instructions 4. Regulation Use Any use of the “Description Instrument”, which exceeds the manufacturers specification may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. -
Page 4: General
The electrical signal changes in proportion to the input pressure level. 5. General The KOBOLD SEN-96 Standard model is an electronic transmitter with ceramic sensor for air, industrial, technical gases, water, and oils. They are designed to be installed in gaseous distribution plants, storage tanks, refrigeration, compressors, vacuum pumps, and general hydraulic/pneumatic pressure systems. -
Page 5: Electrical Connection
If it is not possible to do so, connect the transmitter to ground through the connector and the cable gland. SEN-9601 K01/0613 page 5... -
Page 6: Maintenance
The SEN-9601 transmitter is “maintenance free”. If a fault occurs, contact Kobold. Using transmitters that have been subjected to repair not authorized by Kobold relieves the Company of any and all responsibility and causes the contractual guarantee to become null and void. 9. Product Label 10. - Page 7 14...30 5 ± 10 % 8...30 Absorbed current < 25 < 10 < 10 < 10 < 10 (mA) All output signals are provided of protection against short circuit and polarity inversion. Insulation tension 500 V SEN-9601 K01/0613 page 7...
-
Page 8: 11. Dimensions
SEN-9601 11. Dimensions page 8 SEN-9601 K01/0613... -
Page 9: 12. Declaration Of Conformance
SEN-9601 12. Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Pressure Sensor with Ceramic Sensor Elements Model: SEN-9601 to which this declaration relates is in conformity with the standards noted below: DIN EN 61326 Electrical equipment for measurement, control and laboratory use.
