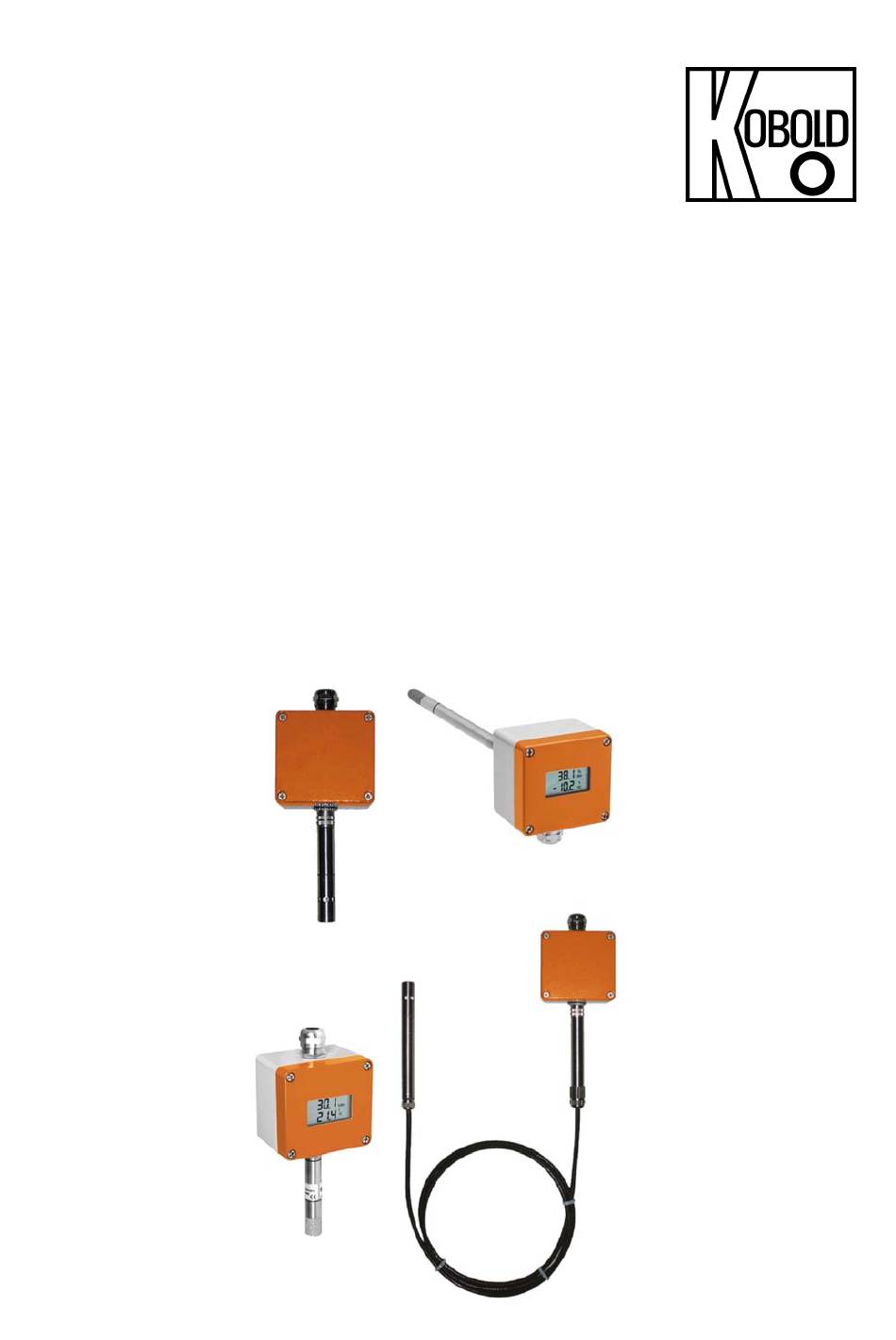

- Page 1 Operating Instructions Sensors for Humidity and Temperature Model: AFK-A/AFK-F/AFK-T/AFK-S...
-
Page 2: Table Of Contents
Order Codes ....................11 Dimensions ....................11 Disposal ...................... 12 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 AFK-A/AFK-F/AFK-T/AFK-S K01/0323... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Operating Principle
AFK-A/AFK-F/AFK-T/AFK-S 5. Operating Principle The sensors of the AFK-A and AFK-F series measure humidity by means of a humidity-dependant condenser. The capacitive humidity measuring element, produced using thinfilm technology, consists of a base plate, on which the electrodes are housed and a hygroscopic polymer layer above it. The hygroscopic polymer layer absorbs water molecules from the medium to be measured (air) or releases them, thereby altering the capacity of the condenser. -
Page 5: Mechanical Connection
In order to maintain interference immunity in accordance with EN 61326 when it is in use, we recommend to use a screened cable (e.g. type 8x AWG26 C UL) for connecting the sensors, and have this fitted into the sensor’s EMC heavy-gauge conduit thread by a qualified electrician. AFK-A/AFK-F/AFK-T/AFK-S K01/0323 page 5... -
Page 6: Electrical Connection
Pay attention to the load according to the operating voltage when using sensors with a current output. Lines to and from the sensor must not be installed parallel to strong electromagnetically fields. If there is any chance of an electrical surge, please install surge protection devices. Connection diagrams page 6 AFK-A/AFK-F/AFK-T/AFK-S K01/0323... - Page 7 AFK-A/AFK-F/AFK-T/AFK-S Electrical connection for exchangeable transmitters/sensors Socket AFK-T notch Plug connection AFK-S Due to the notch, incorrect connection between transmitter and sensor is impossible. AFK-A/AFK-F/AFK-T/AFK-S K01/0323 page 7...
-
Page 8: User Instructions For In Situ Alignment Via Internal Keypad And Led
For modifying of adjustment value press buttons UP / DOWN: + / - 0.1 %rh Confirmation: press button DOWN for at least 3 sec. The adjustment value is saved. Termination of adjustment mode at any time: press button UP for at least 3 sec. page 8 AFK-A/AFK-F/AFK-T/AFK-S K01/0323... - Page 9 The adjustment value is saved. Termination of adjustment mode at any time: press button UP for at least 3 sec. Restore factory settings press buttons UP and DOWN simultaneously for more than 10 sec. All user adjustments will be reset. AFK-A/AFK-F/AFK-T/AFK-S K01/0323 page 9...
-
Page 10: User Instructions
In order to check functioning in the place of installation, we recommend that you use humidity standard... (accessories). To ensure the given accuracy of the sensors, we recommend a calibration cycle of 6-12 months. page 10 AFK-A/AFK-F/AFK-T/AFK-S K01/0323... -
Page 11: Working Range For Humidity And Temperature
10. Working range for humidity and temperature 11. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 12. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com... -
Page 12: Disposal
(Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment page 12 AFK-A/AFK-F/AFK-T/AFK-S K01/0323...
