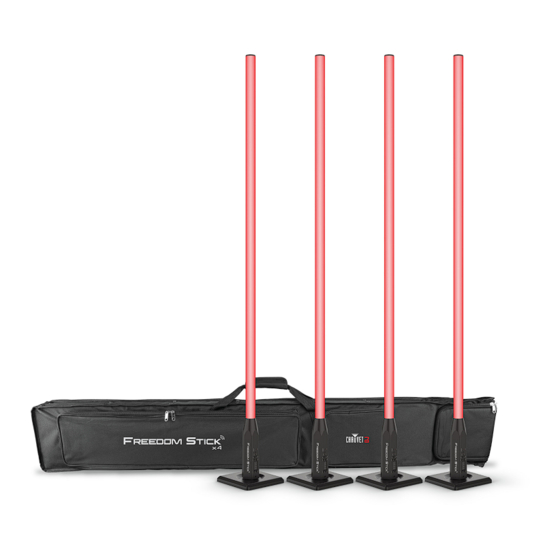

Summary of Contents for Chauvet DJ Freedom Stick x4

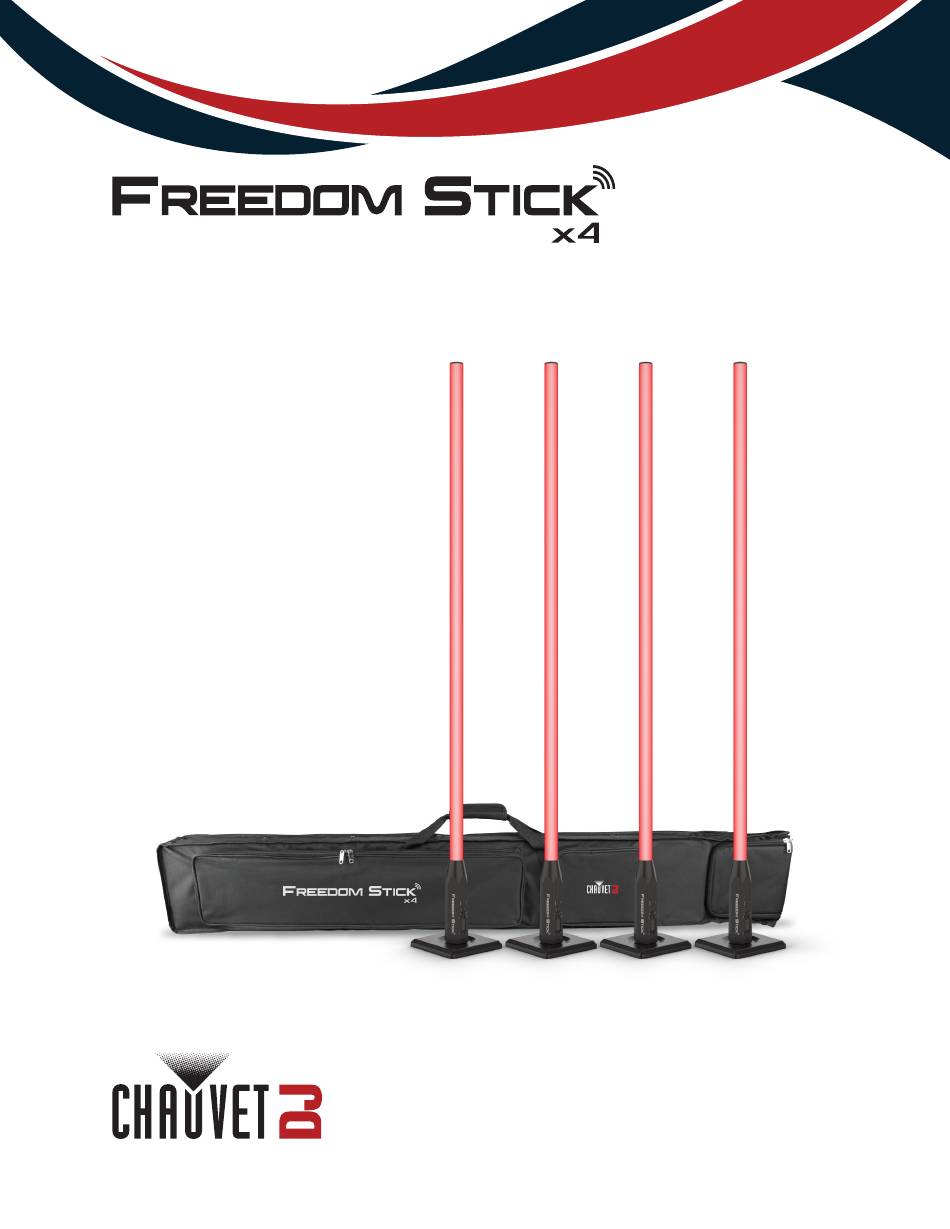

  • Page 1 User Manual...
  • Page 2: Table Of Contents

    Custom Color Mixing ..................Configuration (Settings) ................LED Mode ......................Factory Reset..................... RFC Remote Control..................RFC Remote Control Operation ................. Master/Slave Mode ..................5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................Freedom Stick X4 User Manual Rev. 1...
  • Page 3: Before You Begin

    Electronically published by Chauvet in the United States of America. Chauvet, Chauvet DJ, the Chauvet logo, and Freedom Stick are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
  • Page 4: Fcc Statement Of Compliance

    Expose to rain or moisture. ♦ Use outdoors. ♦ Submerge. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Freedom Stick X4 User Manual Rev. 1...
  • Page 5: Battery Charge Notes

    Continue charging if the battery becomes hot, smokes, swells, or gives off an odor during charging. ♦ Leave the product unattended while charging. ♦ Deplete the battery below 10%. ♦ Charge the battery in a closed container. ♦ Charge for more than 24 hours. Freedom Stick X4 User Manual Rev. 1...
  • Page 6: Introduction

    Introduction 2. Introduction Product Overview indicators USB type C charging port Power switch Menu display in/out buttons Freedom Stick X4 User Manual Rev. 1...
  • Page 7: Product Dimensions

    Introduction Product Dimensions 59 in 1500 mm 6.3 in 0.75 in 160 mm 19 mm 2.33 in 59.12 mm Freedom Stick X4 User Manual Rev. 1...
  • Page 8: Setup

    DC output x5 AC input The Freedom Stick X4 comes with a multi-charger which can work with an input voltage range of 100 to 240 VAC, 50/60 Hz and has 5 outputs of 12 V DC. To determine the multi-charger’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications...
  • Page 9: Mounting

    When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. The When mounting the product on the floor, make sure that the product is away from people and vehicles. Mounting Diagram M10 threaded insert Base plate Freedom Stick X4 User Manual Rev. 1...
  • Page 10: Diffuser Tube

    Each Freedom Stick comes with an optional diffuser tube installed. To uninstall the diffuser tube, remove the thumbscrew from the top of the product, slide the diffuser tube off, and reinstall the thumbscrew. Freedom Stick X4 User Manual Rev. 1...
  • Page 11: Operation

    Sets which group of fixture the RFC-XL rF-G Gro1–4 remote will control 360°, back and front LEDs LED mode Fron 180°, front LEDs only bACk 180°, back LEDs only Reset rESt Resets the product to factory default settings Freedom Stick X4 User Manual Rev. 1...
  • Page 12: Configuration (Dmx)

    Caution: D-Fi 2.4 GHz operation can be interrupted or inhibited by obstructions between the transmitter and receiver such as structures or people. For best results, keep the line of sight clear. Ensure that all linked Freedom Stick products are set to the same DMX personality. Freedom Stick X4 User Manual Rev. 1...
  • Page 13: Dmx Channel Assignments And Values

    236  240 Color 8 241  245 Color 9 246  250 Color 10 251  255 Color 11 000  010 No function – – – Strobe 011  255 Strobe, slow to fast Freedom Stick X4 User Manual Rev. 1...
  • Page 14 000  255 0–100% – – Red 5 000  255 0–100% – – Green 5 000  255 0–100% – – Blue 5 000  255 0–100% – – Red 6 000  255 0–100% Freedom Stick X4 User Manual Rev. 1...
  • Page 15 000  255 0–100% – – Blue 16 000  255 0–100% 000  010 No function – – – Strobe 011  255 Strobe, slow to fast – – – Dimmer 000  255 0–100% Freedom Stick X4 User Manual Rev. 1...
  • Page 16: Configuration (Standalone)

    1. Press <MENU> repeatedly until SenS shows on the display. 2. Use <UP> or <DOWN> to increase or decrease the sound sensitivity, from u. 1–100. 3. Press <ENTER>. The product will only respond to low frequencies of music (bass and drums). Freedom Stick X4 User Manual Rev. 1...
  • Page 17: Custom Color Mixing

    1. Press <MENU> repeatedly until SEt shows on the display. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to select rESt. 4. Press <ENTER>. 5. Use <UP> or <DOWN> to select from no (cancel) or YES (reset). 6. Press <ENTER>. Freedom Stick X4 User Manual Rev. 1...
  • Page 18: Rfc Remote Control

    The RFC remote will not respond to any inputs when Freeze or Black Out is activated. If the remote does not respond when a button is pressed, try pressing <FREEZE> or <BLACK OUT>. Freeze or Black Out may have been inadvertently activated. Freedom Stick X4 User Manual Rev. 1...
  • Page 19: Master/Slave Mode

    Never connect a DMX controller to a DMX string configured for Master/Slave operation because the controller may interfere with the signals from the master. • Do not connect more than 31 slaves to the master via a wired DMX connection. Freedom Stick X4 User Manual Rev. 1...
  • Page 20: Maintenance

    6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Freedom Stick X4 User Manual Rev. 1...
  • Page 21: Technical Specifications

    104 °F (40 °C) Convection I/O Connector Channel Range Operating Frequency 3-pin XLR, D-Fi 3, 8, 48, 50 2.412 to 2.484 GHz Ordering Product Name Item Code UPC Number Freedom Stick X4 10031857 781462222055 Freedom Stick X4 User Manual Rev. 1...
  • Page 22: Contact Us

    For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Freedom Stick X4 User Manual Rev. 1...
