Cooper Lighting EC Specifications page 2

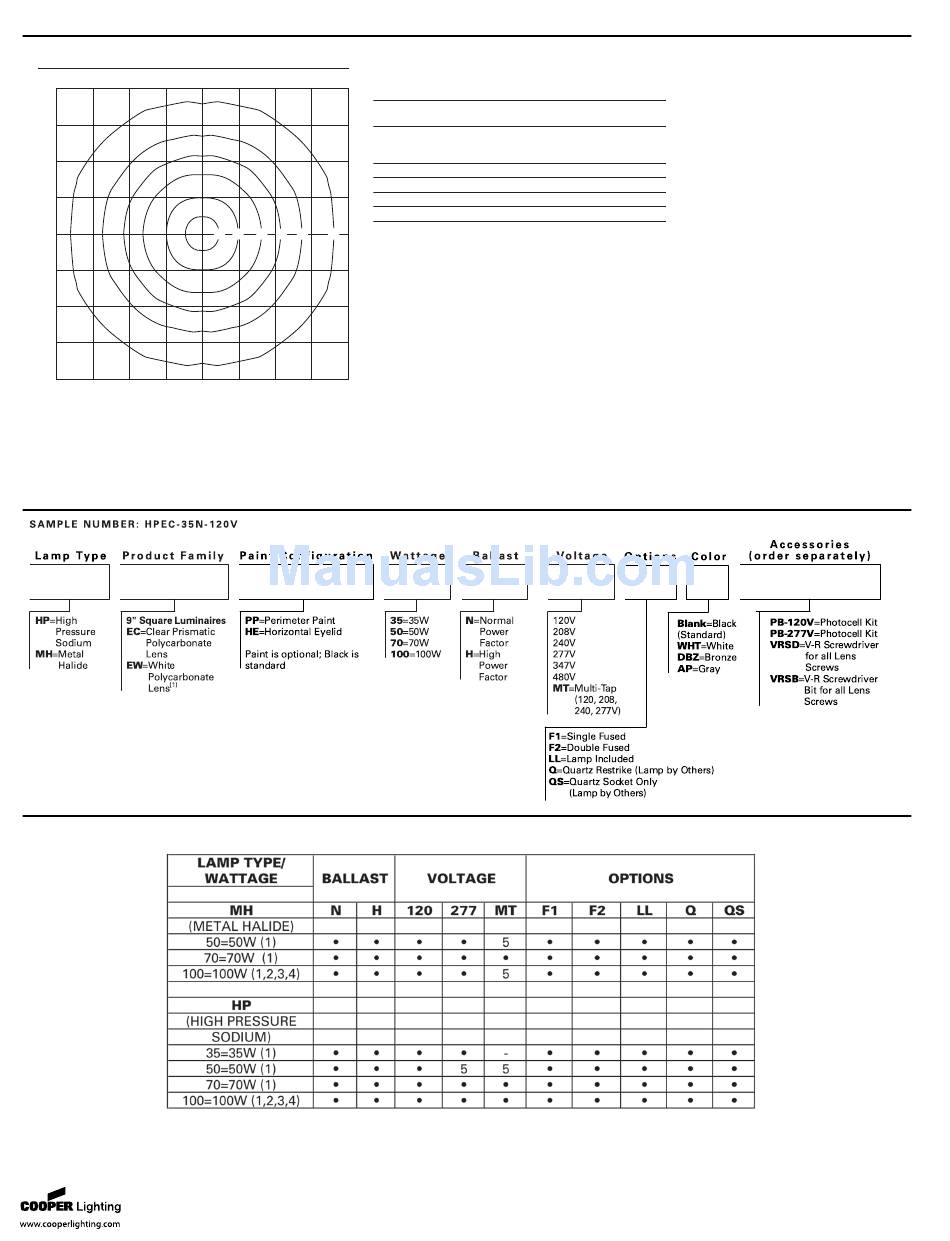

PHOTOMETRICS
C a n d l e p o w e r D i s t r i b u t i o n
4
3
2
1
0
1
2
3
4
4 3 2 1 0
Test No. 766670
HPEC-100N-120V
Lamp=100W HPS
Lumens=9500
ORDERING INFORMATION
ORDERING MATRIX
N o t e s :
For additional options, consult your Cooper Lighting Representative. Specifications and dimensions subject to change without notice.
Products also available in non-US voltages and 50Hz for international markets.
1. Supplied from factory with deep casting. 2. Not available with white lens. 3. Ceiling mount only. 4. Not available with
HE (horizontal eyelid) option. 5. Only available in HPF.
Fail-Safe • Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • TEL 770.486.4800 • FAX 770.486.4801
F o o t c a n d l e Ta b l e
Select mounting height and read across for footcandle values
of each isofootcandle line.
Mounting
Height
EC-2
6'
9'
12'
A B C D E F
1 2 3 4
Specifications and Dimensions subject to change without notice.
Footcandle Values for
Isofootcandle Lines
A B C D E
22.50 11.25 4.50 2.25 1.13
10.00 5.00 2.00 1.00 0.50
5.63 2.81 1.13 0.56 0.28
E C / E W
F
0.45
0.20
0.11
9 " S Q U A R E
ADC041364
04/17/2007 10:11:12 AM
