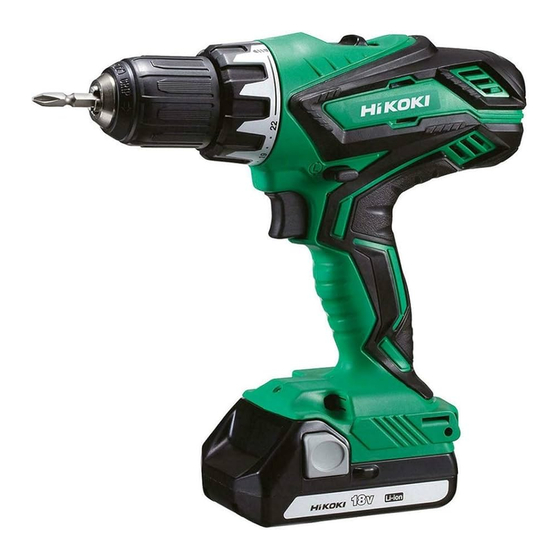

Summary of Contents for HIKOKI DV 18DGL
- Page 1 DV 18DGL Handling instructions...
- Page 3 350 min Hs 1400 min...
-
Page 5: General Power Tool Safety Warnings
c) Prevent unintentional starting. Ensure the GENERAL POWER TOOL SAFETY switch is in the off -position before connecting to WARNINGS power source and/or battery pack, picking up or carrying the tool. WARNING Carrying power tools with your fi nger on the switch or Read all safety warnings, instructions, illustrations and energising power tools that have the switch on invites specifi... -
Page 6: Additional Safety Warnings
h) Keep handles and grasping surfaces dry, clean Safety instructions when using long drill bits and free from oil and grease. a) Never operate at higher speed than the maximum Slippery handles and grasping surfaces do not allow speed rating of the drill bit. for safe handling and control of the tool in unexpected At higher speeds, the bit is likely to bend if allowed to situations. -
Page 7: Caution On Lithium-Ion Battery
17. The motor may stop in the event the tool is overloaded. In 2. Do not pierce battery with a sharp object such as a this should occur, release the tool’s switch and eliminate nail, strike with a hammer, step on, throw or subject the the cause of the overload. -
Page 8: Standard Accessories
○ If the BSL36B18 (sold separately) is installed in the Low speed power tool, the power output will exceed 100 Wh and the High speed unit will be classifi ed as Dangerous Goods for freight classifi cation. Brick Wood Power Output Metal Machine screw 2 to 3 digit number... -
Page 9: Specifications
When inserting a battery in the charger, charging will NOTE commence and the pilot lamp will light continuously in Due to HiKOKI’s continuing program of research and red. development, the specifi cations herein are subject to When the battery becomes fully recharged, the pilot lamp change without prior notice. -
Page 10: Mounting And Operation
NOTE MOUNTING AND OPERATION The recharging time may vary according to the ambient temperature and power source voltage. CAUTION Action Figure Page When the battery charger has been continuously used, Installing the battery cover the battery charger will be heated, thus constituting the cause of the failures. - Page 11 In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center. Information concerning airborne noise and vibration The measured values were determined according to EN62841 and declared in accordance with ISO 4871.
-
Page 12: Troubleshooting
TROUBLESHOOTING Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the HiKOKI Authorized Service Center. Symptom Possible cause Remedy Tool doesn’t run No remaining battery power Charge the battery. - Page 13 DV18DGL (2LEGK) (2LSGK) (2XA) 0–350 0–1400 0–4900 0–19600 1.5–13 1.7–2.3...
- Page 14 DV18DGL (2LEGK) (2LSGK) (2XA) ― UC18YKSL ― ― UC18YFSL ― ― BSL1815 ― ― BSL1830C ― ― BSL36A18...
- Page 15 BSL18.. 336642 BSL36..18 983006 UC18YFSL (14.4 V–18 V) 329897 UC18YKSL (14.4 V–18 V)
-
Page 17: Guarantee Certificate
Date of Purchase Customer Name and Address Dealer Name and Address (Please stamp dealer name and address) Hikoki Power Tools (U.K.) Ltd. Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ, United Kingdom Tel: +44 1908 660663 Fax: +44 1908 606642... - Page 20 EN60335-1:2012+A11:2014 EN60335-2-29:2004+A2:2010 EN55014-1:2006+A1:2009+A2:2011 EN55014-2:1997+A1:2001+A2:2008 Importer and authorized person to compile the technical fi le Hikoki Power Tools (U.K.) Ltd. Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ, United Kingdom 30. 6. 2021 Head offi ce in Japan Koki Holdings Co., Ltd.
