ENGLISH
Phoenix Inverter Smart
Manual
rev 00 05/2022
This manual is also available in HTML5.

Advertisement

Table of Contents
loading

Summary of Contents for Victron energy Phoenix Inverter Smart 12/1600

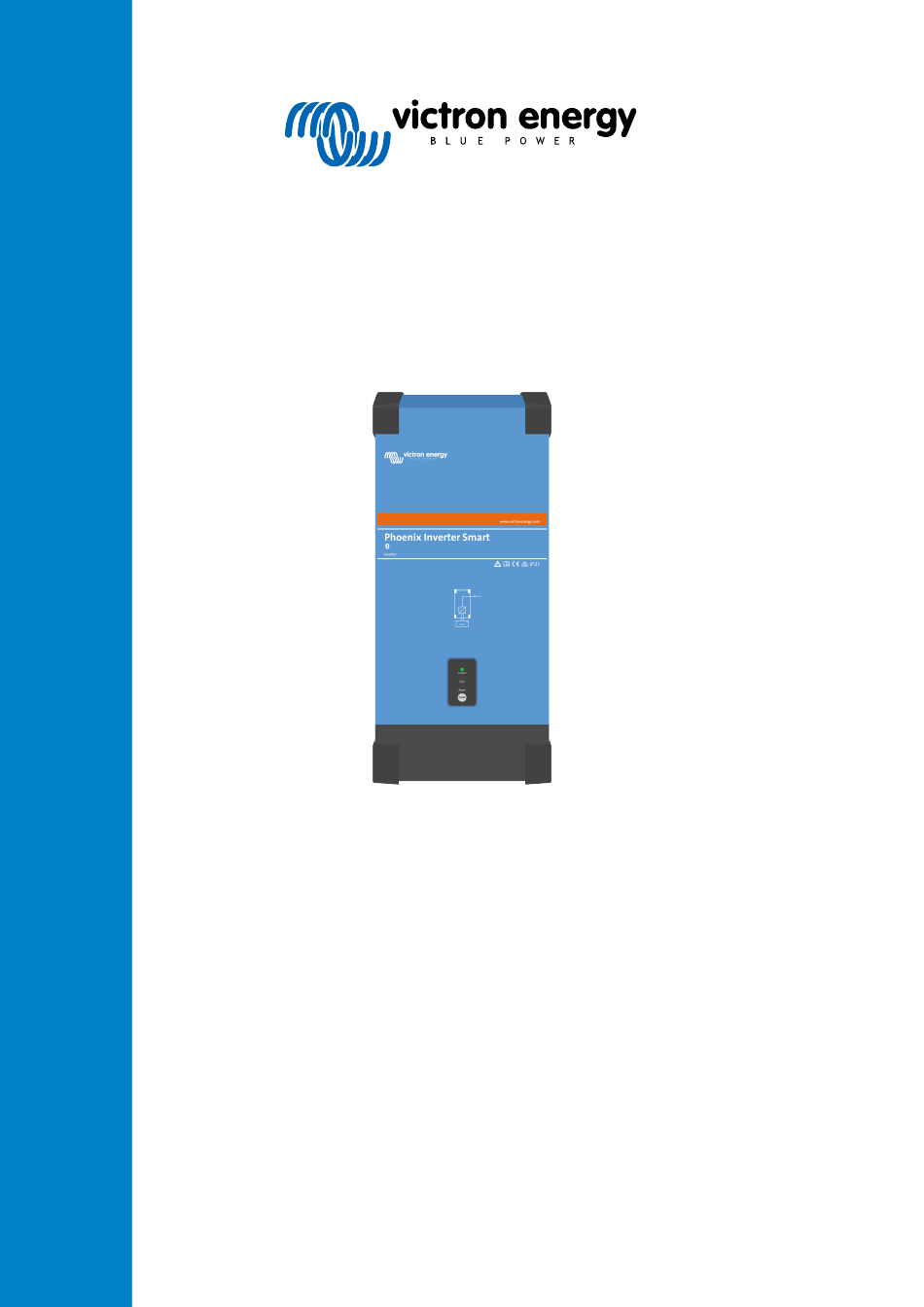

  • Page 1 ENGLISH Phoenix Inverter Smart Manual rev 00 05/2022 This manual is also available in HTML5.
  • Page 2: Table Of Contents

    Phoenix Inverter Smart Manual Table of Contents 1. Safety instructions ........................1 2. General description ........................2 2.1. Inverter ........................2 2.2. LED diagnosis and monitoring ..................... 2 2.3. The VictronConnect app ....................2 2.4. Bluetooth ........................3 2.5. VE.Direct port ........................ 3 2.6.
  • Page 3: Safety Instructions

    Phoenix Inverter Smart Manual 1. Safety instructions General Please read the documentation supplied with this product first, so that you are familiar with the safety signs and directions before using the product. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only.
  • Page 4: General Description

    Phoenix Inverter Smart Manual 2. General description 2.1. Inverter Proven reliability The inverter uses a full bridge with toroidal transformer topology that has proven its reliability over many years. It is short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High startup power To start loads such as: equipment with an electric motor, power converters for LED lamps, filament lamps or electric tools.
  • Page 5: Bluetooth

    Phoenix Inverter Smart Manual For more information about the app and to download the app see the VictronConnect product page. 2.4. Bluetooth The inverter has built-in Bluetooth. Bluetooth (but also a VE.Direct connection) can be used to communicate with the VictronConnect app. 2.5.
  • Page 6: Installation

    Phoenix Inverter Smart Manual 3. Installation • This product should be installed by a qualified electrician. • During installation ensure that the remote connector with wire bridge is removed (or switch off the remote on/off switch if installed) to be sure that the inverter cannot be switched on unexpectedly. 3.1.
  • Page 7: Battery Connection

    Phoenix Inverter Smart Manual 3.2.1. Battery connection In order to fully utilize the full capacity of the inverter, it is important to use batteries with sufficient capacity and battery cables with sufficient cross section. There is no safety fuse inside the inverter. A safety fuse should be installed externally. See below table for the recommended battery cable cross section, safety fuse rating and battery capacity for each inverter model.
  • Page 8: Remote Connector

    Phoenix Inverter Smart Manual and 2000VA models [20] or appendix Installation information floating ground 3000VA and 5000VA models [21] on how to do this. 3.2.4. Remote connector Remote on/off control of the inverter can be achieved with a simple on/off switch connected to the inverter remote connector. The inverter will switch on when it has been switched to ON or ECO mode and when: •...
  • Page 9: Configuration

    Phoenix Inverter Smart Manual 4. Configuration The inverter is ready for use with the standard factory settings (see the Technical specifications [16] chapter). The inverter can be configured using the VictronConnect app. Connect using a smartphone or tablet via Bluetooth or using a computer via USB and a VE.Direct to USB interface).
  • Page 10: Dynamic Cut Off

    Phoenix Inverter Smart Manual Battery voltage Low battery shutdown Low battery restart & alarm Charge detect Default: 18.6V Default: 21.8V Default: 28.0V Range: 0-100V Range: 0-100V Range: 0-100V Default: 37.2V Default: 36.6V Default: 56.0V Range: 0-100V Range: 0-100V Range: 0-100V 4.3.1.
  • Page 11: Programmable Relay

    Phoenix Inverter Smart Manual VictronConnect app showing the "Dynamic cut off" settings 4.4. Programmable relay The inverters are equipped with a multi-functional relay that by default is programmed in the normal operation mode. The different relay modes can be summarized as follows: Inverter (default setting) Relay closed during normal operation, and opened when the inverter has switched itself off in alarm, has been switched off by a user and also opened (of course) when there is no power available on the terminals, ie.
  • Page 12: Reset Settings To Default

    Phoenix Inverter Smart Manual 4.6. Reset settings to default The inverter settings can be set to default in the following way: • Navigate to the inverter settings by clicking on the cog symbol in the right top corner. • Click on the 3 dot symbol in the right top corner.
  • Page 13: Operation

    Phoenix Inverter Smart Manual 5. Operation 5.1. Inverter The inverter can be turned on via these methods: • Front push button. • Main power switch at bottom of unit (5kVA model only). • The VictronConnect app. • Remote terminal with wire loop. •...
  • Page 14 Phoenix Inverter Smart Manual LED panel Operational mode Troubleshooting behaviour The green The inverter has been switched on and inverter LED is operational. is on. The inverter has been switched to ECO The green If the inverter keeps switching on and mode and is in "search"...
  • Page 15 Phoenix Inverter Smart Manual LED panel Operational mode Troubleshooting behaviour The green Inverter LED High temperature warning. is on. The internal temperature is too high. If Reduce the AC load and/or move the The red Alarm the temperature increases any further, inverter to a better ventilated area.
  • Page 16: Protections And Automatic Restarts

    Phoenix Inverter Smart Manual 5.3. Protections and automatic restarts Overload Some loads like motors or pumps draw large inrush currents in a start-up situation. In such circumstances, it is possible that the start-up current exceeds the over current trip level of the inverter. In this case the AC output voltage will quickly decrease to limit the output current of the inverter.
  • Page 17: Monitoring Via A Gx Device, Globallink And The Vrm Portal

    Phoenix Inverter Smart Manual VictronConnect app. For information on how to connect see the The VictronConnect app [2] chapter and/or the VictronConnect manual which can be found on the VictronConnect app information page. The VictronConnect app will display the following information: •...
  • Page 18: Technical Specifications

    Phoenix Inverter Smart Manual 6. Technical specifications 6.1. Phoenix Inverter Smart Phoenix Inverter Smart 12/1600 12/2000 12/3000 24/1600 24/2000 24/3000 24/5000 48/1600 48/2000 48/3000 48/5000 Parallel and 3-phase operation INVERTER Input voltage range 9.3 - 17V, 8.6 - 34V or 37.2 - 68V AC Output 230Vac ±2%, 50Hz or 60Hz ±...
  • Page 19 Phoenix Inverter Smart Manual Phoenix Inverter Smart 12/1600 12/2000 12/3000 24/1600 24/2000 24/3000 24/5000 48/1600 48/2000 48/3000 48/5000 533 x 285 x 595 x 295 x 150mm (12V) 160mm (24V) 485 x 219 x 485 x 219 x Dimensions (hxwhd) 125mm 125mm 485 x 285 x...
  • Page 20: Appendix

    Phoenix Inverter Smart Manual 7. Appendix 7.1. Connection overview Connections 1600VA model Connections 2000VA model Page 18 Appendix...
  • Page 21 Phoenix Inverter Smart Manual Connections 3000VA model Page 19 Appendix...
  • Page 22: Installation Information Floating Ground 1600Va And 2000Va Models

    Phoenix Inverter Smart Manual Connections 5000VA model Connector Terminal names AC output L (phase), N (neutral), PE (earth) Battery + (positve), - (negative) Alarm (programmable relay) NO, COM, NC Remote H, L VE.Direct VE.Direct 7.2. Installation information floating ground 1600VA and 2000VA models Ground wire “G“...
  • Page 23: Installation Information Floating Ground 3000Va And 5000Va Models

    Phoenix Inverter Smart Manual 7.3. Installation information floating ground 3000VA and 5000VA models Ground wire “G“ connects the output neutral to ground. It must be re-positioned to a ‘dummy’ terminal if a floating output is required. When a floating output is obtained, the current reading at no load can show an offset of around 100 - 150mA. Also beware that a GFCI (or RCCB) will not function properly.
  • Page 24: Dimensions 1600Va And 2000Va Model

    Phoenix Inverter Smart Manual 7.4. Dimensions 1600VA and 2000VA model Page 22 Appendix...
  • Page 25: Dimensions 3000Va Model (12V)

    Phoenix Inverter Smart Manual 7.5. Dimensions 3000VA model (12V) Page 23 Appendix...
  • Page 26: Dimensions 3000Va Model (24V, 48V)

    Phoenix Inverter Smart Manual 7.6. Dimensions 3000VA model (24V, 48V) Page 24 Appendix...
  • Page 27: Dimensions 5000Va Model

    Phoenix Inverter Smart Manual 7.7. Dimensions 5000VA model Page 25 Appendix...
