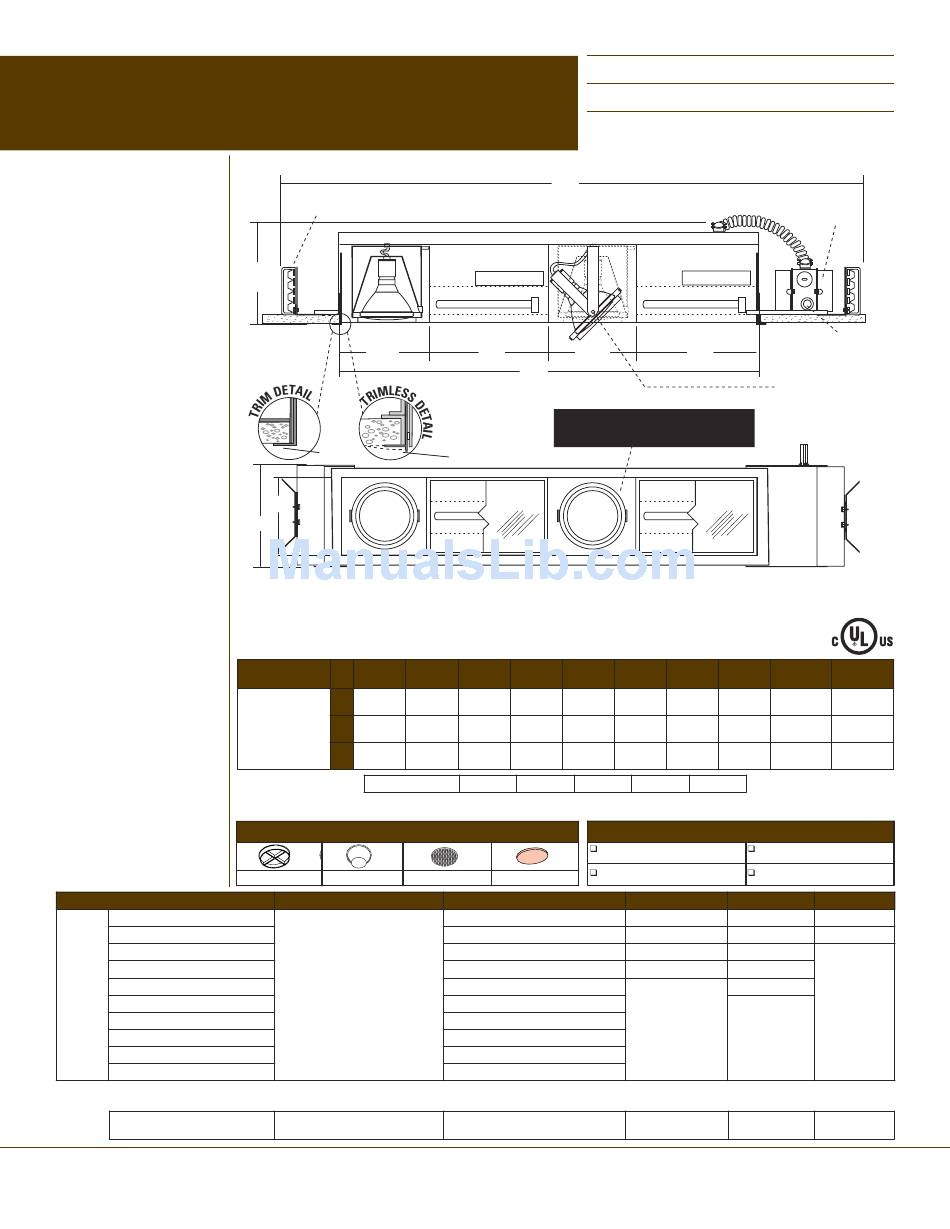

RSA Lighting CR338M100 Specification

COMBOLIGHT® COMBO CLASSIC RECESSED
LAMP GROUP 3 - CONFIGURATION "D"
TWO (2) Halogen or Metal Halide lamps - TWO (2) Fluorescent lamps
New Construction Recessed Housing - Trim or Trimless
DESCRIPTION:
An adjustable recessed fixture
suitable for multiple downlighting
applications with one point of elec-
trical entry. Mixes the use of metal
halide lamps with fluorescent
lamps. Powder coat finish on hous-
ing & lamp assembly.
CONSTRUCTION:
Housing, Plaster Frame & Trim
Assembly: 18 gauge CRS. J-Box
Assembly: 16 gauge CRS (galva-
nized). Fixture is offered with a .75"
ceiling trim or as a trimless fixture.
Can accommodate 0.50" to 1.00"
ceiling thickness.
LAMP ASSEMBLY:
Two Halogen or Metal Halide lamp
cells with two fluorescent lamp
cells . Can accept up to two optical
accessories. 380º x 45º locking
lamp adjustment. Provides 45º
visual cut-off.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Fixture is two circuit.
Circuit 1: Integral Aromat® elec-
tronic metal halide ballasts for
metal halide lamps. Halogen
lamps are line voltage.
Circuit 2: Integral electronic bal-
lasts for fluorescent lamps.
Lutron® dimming ballasts avail-
able upon request.
Junction box is UL listed for
through branch wiring, for 8 #12,
90°C supply conductors or 60°C for
end of run (access above ceiling
not required).
.
Made in the USA
Item # / Lamp Type
Lamp CR338 - PAR38 120V
Group 3 CR338M70 - PAR38MH 70W
CR338M100 - PAR38MH 100W
___
SPECIFY -
RSA LIGHTING
Butterfly Brackets for
Black Iron Mounting
10.38"
8.80"
0.75" Trim
8.90"
10.75"
Custom configurations are available with Combo Classic fixtures.
Also available with T8 fluorescent lamps. Consult RSA for details
Fluorescent >> BX40
68.98" 68.98" 68.98" 33.98" 34.98" 36.98" 115.98" 139.98" 91.98"
A
85.78" 85.78" 85.78" 50.78" 51.78" 53.78" 132.78" 156.78" 108.78"
Lamp Group 3 B
25.50" 25.50" 25.50"
C
CR338M70
ORDERING EXAMPLE:
= Two PAR38 Metal Halide 70W lamps with Two BIAX® 40W Fluorescent • Black Interior • White Trim • 120 volts
Optional Accessories - See RSA Combo Classic accessory page for details.
Baffle Snoots
Configuration
D - Two Halogen or Metal
Halide lamp cells with
Two Fluorescent lamp
cells
D
®
Catalog #
Type
Project
B
Fluorescent lamp cell
w/ integral ballast
accessible from below
Ballast
Integral reflector
C
8.80"
A
Ceiling compund
Must specify a diffuser or louver
is applied right
for fluorescent cell. See below.
to the edge of the
fixture opening
BX50 PLL80 PLT26 PLT32 PLT42
8.00" 8.50"
D BX40 BK
Fluorescent Diffusers and Louvers - Please specify
Louvers Lenses
Fluorescent Lamp Cell
BX40 - 40W BIAX®
BX50 - 50W BIAX®
PLL80 - 80W PL-L
PLT26 - 26W PL-T
PLT32 - 32W PL-T
PLT42 - 42W PL-T
T528 - 28W T5
T535 - 35W T5
T5HO39 - 39W T5HO
T5HO54 - 54W T5HO
T8 lamps also available
___
RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.
Aromat® Electronic
Ballast
Integral reflector
Thermal Protector
C
380º x 45º locking
angular adjustment
45º visual cut-off
T528 T535 T5HO39 T5HO54
9.50" 49.00" 61.00"
WH 120
TWD - Textured White Diffuser CB1 - 2" Parabolic Louver
MPD - Conical Prism Diffuser CB2 - 1" Parabolic Louver
Interior Finish Trim Finish
BK - Black BK - Black
WH - White WH - White
S - Silver S - Silver
PT - Custom PT - Custom
TR - Trimless
___ ___
Metal Halide
Ballasts
115.98"
132.78"
37.00" 49.00"
Voltage
120 - 120 Volts
277 - 277 Volts
___
