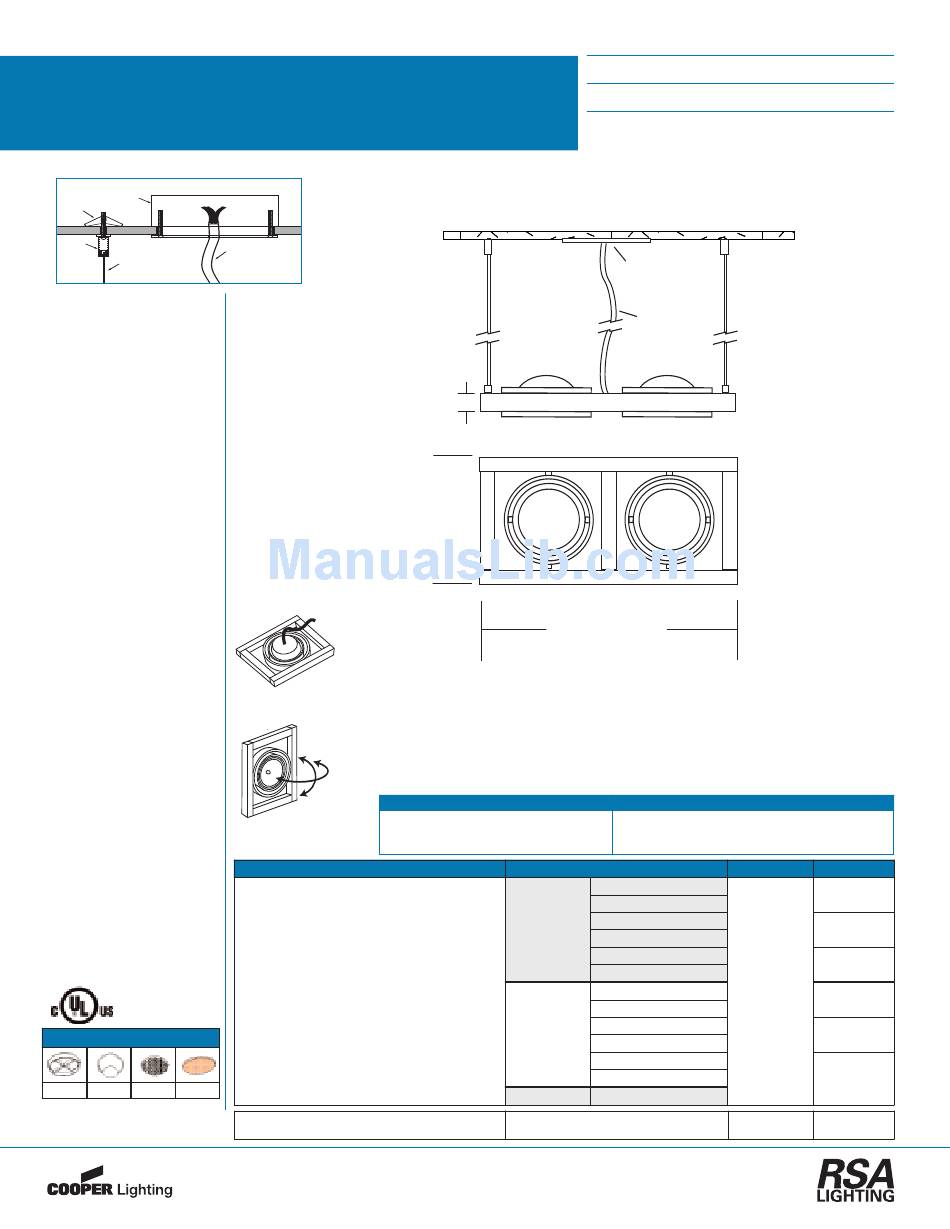

RSA Lighting Galleria Series CGSH Specifications

COMBOLIGHT® GALLERIA Series • CGSH
TWO (2) Light Horizontal Suspended
Grid Configuration "A" • Lamp Groups 1, 2 & 3
Line Voltage or Low Voltage for Remote Transformer
Cable Mounting Detail (CGSH)
Junction Box
120 Volt Primary Leads
Toggle Bolt
Cable
Locking
Aircraft
Device
Suspension
x 4
Cable
DESCRIPTION:
A horizontally suspended, grid style
multi-lamp fixture. Fixture is sus-
pended from the ceiling with 1/16"
steel cable.
CONSTRUCTION:
All aluminum construction. Grid is
made of .75" square aluminum tub-
ing with .062" wall thickness.
LAMP ASSEMBLY:
Two lamps mounted in adjustable
double gimbal lamp holders. Dual
axis 90º x 90º locking adjustability.
ELECTRICAL:
Low voltage models are wired for
use with remote transformers. For
integral transformers, see spec
sheets for model number CGSHI or
CGCHI. For Metal Halide see spec
sheets for models CGSHM or
CGCHM. Dimmable.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Label: UL, CSA and New York
Calendar
This sheet represents a standard
configuration. Custom configura-
tions are available with Galleria
fixtures. Consult RSA for details.
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
SPECIFY -
Primary Leads in
Mesh Cable Shield
Lamp Group 1
Lamp Group 2
Lamp Group 3
Standard lamp back cover for
AR111 models hides lamp
terminals and connections.
90º
90º
GRID CONFIGURATION "A"
This sheet is for Grid Configuration "A". To see
Adjustable double gimbal
other grid configurations, consult other ComboLight
lamp holder accepts up to
Galleria Series spec sheets.
two optical accessories
Cat. # / Description
CGSH - Horizontal Cable Suspension
CGSH
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
CGSH Cable Suspension x 4
.75"
Side View
5.90"
Bottom
7.40"
View
8.10"
Lamp Group 1
11.05"
Lamp Group 2
14.05"
Lamp Group 3
15.45"
Lamp Type
Lamp Group 1 11 - MR16 12V 50W
12 - MR16 12V 75W
13 - AR70 12V 20W
14 - AR70 12V 50W
15 - PAR16 120V
16 - PAR20 120V
Lamp Group 2 21 - PAR30 120V
22 - PAR36 12V 50W
23 - AR111 12V 35W
24 - AR111 12V 50W
25 - AR111 12V 75W
26 - AR111 12V 100W
Lamp Group 3 31 - PAR38 120V
___
CGSH Mounting
4.63" Round J-Box
Coverplate
Power Cord
IMPORTANT: USING THIS SPEC SHEET
This fixture is dimensioned according to lamp type. Please select
lamp from either Lamp Group 1, 2 or 3 - and then refer to the
appropriate dimensions of fixture as shown above.
Grid Configuration Finish
A - Two Light BK - Black
A
WH - White
S - Silver
PC - Polished
Chrome
PT - Custom
