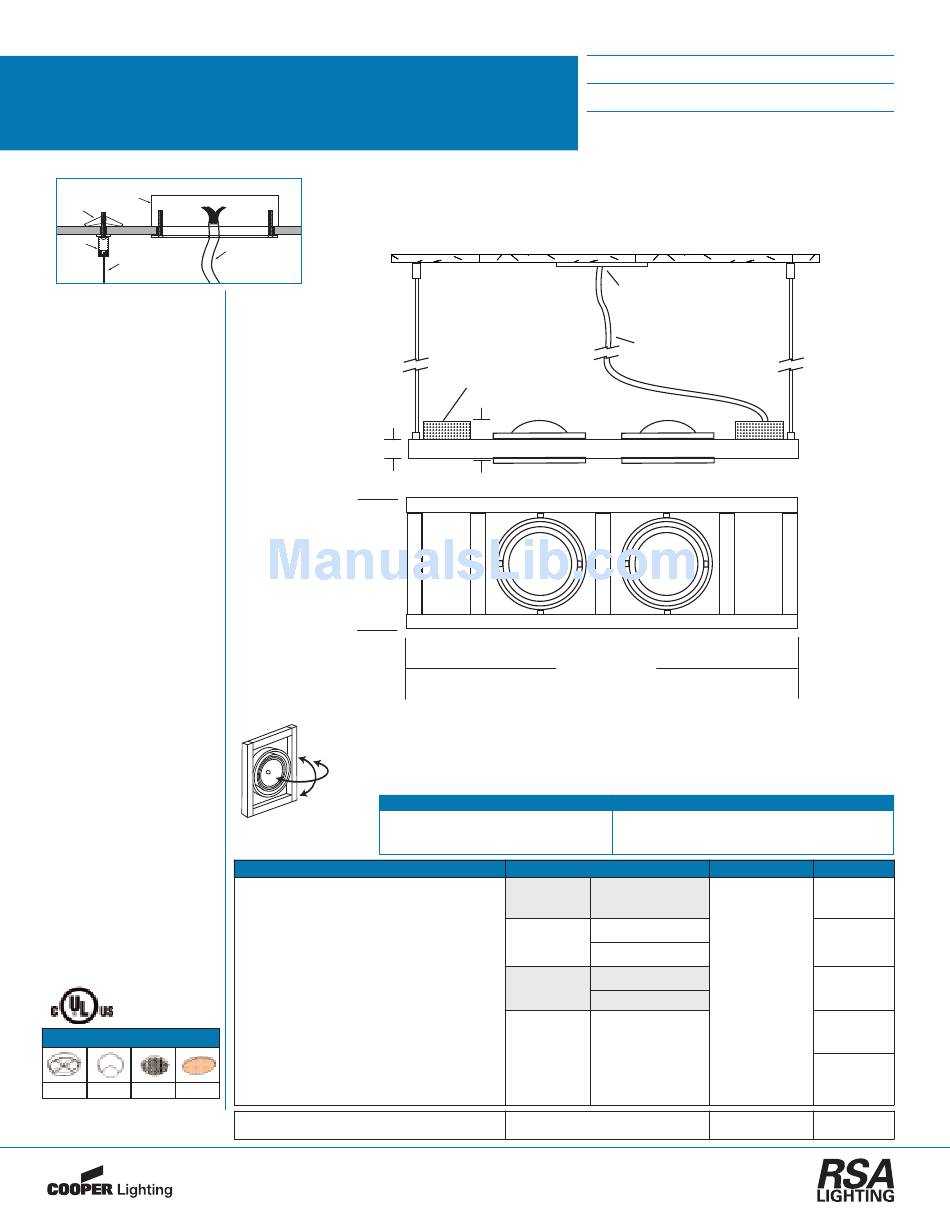

RSA Lighting Galleria CGSHM Specifications

COMBOLIGHT® GALLERIA Series • CGSHM
TWO (2) Light Horizontal Suspended
Grid Configuration "A" • Lamp Groups 1, 2 & 3
Metal Halide w/ Integral Aromat® Ballasts
Cable Mounting Detail (CGSHM)
Junction Box
120 Volt Primary Leads
Toggle Bolt
Cable
Locking
Aircraft
Device
Suspension
x 4
Cable

DESCRIPTION:

A horizontally suspended, grid style
multi-lamp fixture. Fixture is sus-
pended from the ceiling with 1/16"
steel cable.

CONSTRUCTION:

All aluminum construction. Grid is
made of .75" square aluminum tub-
ing with .062" wall thickness.
Perforated metal ballast enclosure
for cooler operation.

LAMP ASSEMBLY:

Two lamps mounted in adjustable
double gimbal lamp holders. Dual
axis 90º x 90º locking adjustability.

ELECTRICAL:

Configured with integral Aromat®
electronic ballasts.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Label: UL, CSA and New York
Calendar
This sheet represents a standard
configuration. Custom configura-
tions are available with Galleria
fixtures. Consult RSA for details.
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses

SPECIFY -

Primary Leads in
Mesh Cable Shield
.75"
Lamp Group 1
5.90"
Lamp Group 2
7.40"
Lamp Group 3
8.10"
90º
90º
GRID CONFIGURATION "A"
This sheet is for Grid Configuration "A". To see
Adjustable double gimbal
other grid configurations, consult other ComboLight
lamp holder accepts up to
Galleria Series spec sheets.
two optical accessories

Cat. # / Description

CGSHM - Horizontal Cable Suspension
CGSHM
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
CGSHM Cable Suspension x 4
Integral Aromat®
Electronic Ballast
1.75"
Side View
Lamp Group 1
24.55"
Lamp Group 2
24.35"
Lamp Group 3
25.75"
Lamp Type
Lamp Group 1 11 - PAR20MH 39W A - Two Light
Lamp Group 2 21 - PAR30MH 39W
22 - PAR30MH 70W
Lamp Group 3 31 - PAR38MH 70W
32 - PAR38MH 100W
___
CGSHM Mounting
4.63" Round J-Box
Coverplate
Power Cord
Bottom
View
IMPORTANT: USING THIS SPEC SHEET
This fixture is dimensioned according to lamp type. Please select
lamp from either Lamp Group 1, 2 or 3 - and then refer to the
appropriate dimensions of fixture as shown above.
Grid Configuration
A
Finish
BK - Black
WH - White
S - Silver
PC - Polished
Chrome
PT - Custom
