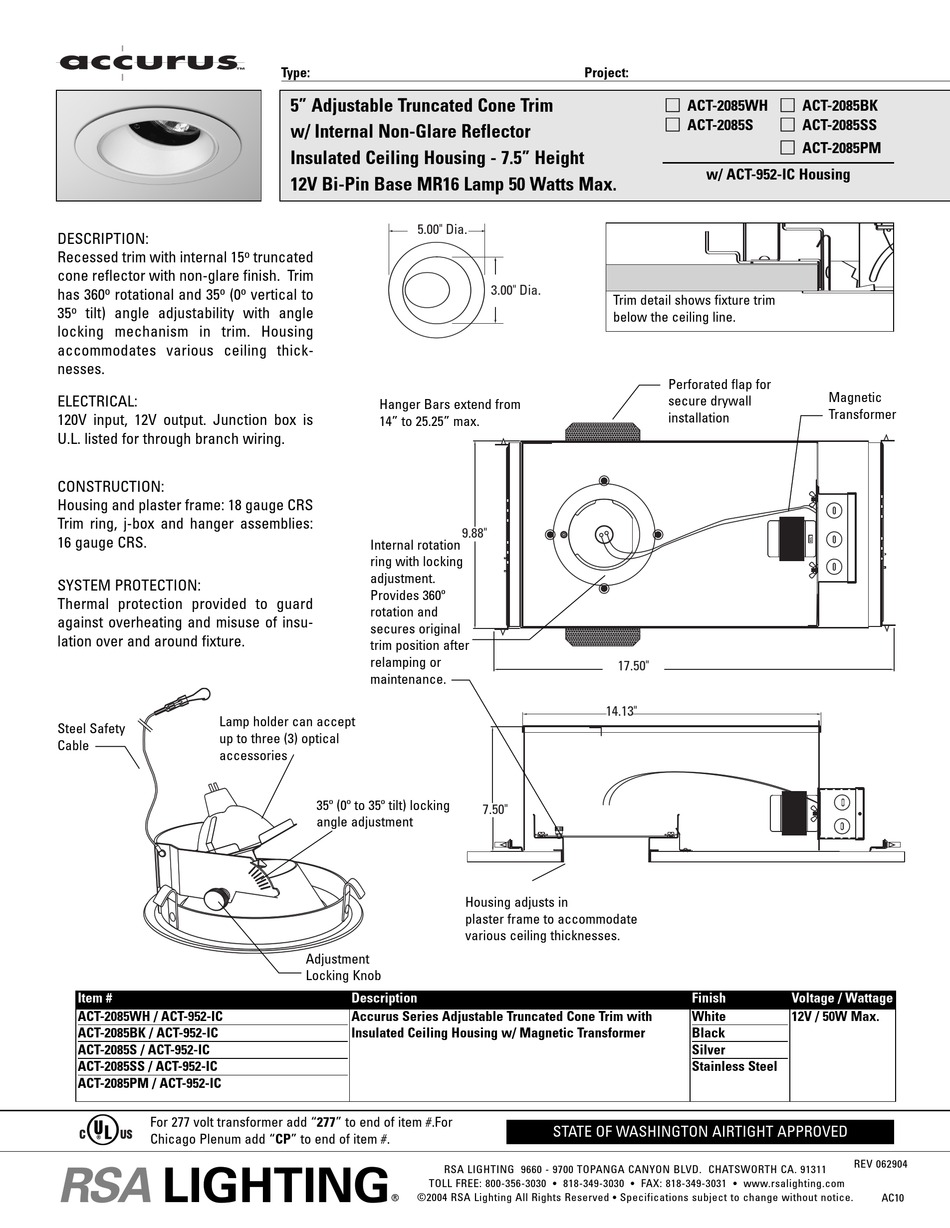

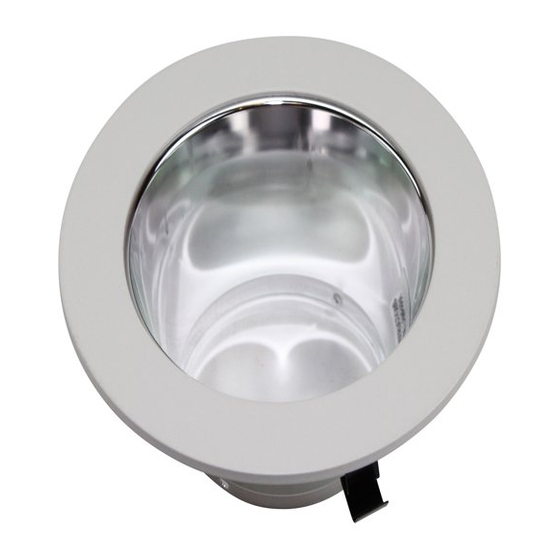

RSA Lighting Adjustable Truncated Cone Trim w/ Internal Non-Glare Reflector ACT-2085BK Specification Sheet

DESCRIPTION:
Recessed trim with internal 15
cone reflector with non-glare finish. Trim
o o
has 360 rotational and 35 (0
o
35 tilt) angle adjustability with angle
locking mechanism in trim. Housing
accommodates various ceiling thick-
nesses.
ELECTRICAL:
120V input, 12V output. Junction box is
U.L. listed for through branch wiring.
CONSTRUCTION:
Housing and plaster frame: 18 gauge CRS
Trim ring, j-box and hanger assemblies:
16 gauge CRS.
SYSTEM PROTECTION:
Thermal protection provided to guard
against overheating and misuse of insu-
lation over and around fixture.
Lamp holder can accept
Steel Safety
up to three (3) optical
Cable
accessories
Item #
ACT-2085WH / ACT-952-IC
ACT-2085BK / ACT-952-IC
ACT-2085S / ACT-952-IC
ACT-2085SS / ACT-952-IC
ACT-2085PM / ACT-952-IC
For 277 volt transformer add "277" to end of item #.For
Suitable for Damp Location.
catalog number. For Chicago Plenum, add 'CP' to the end of the catalog number.
Chicago Plenum add "CP" to end of item #.
Type:
5" Adjustable Truncated Cone Trim
w/ Internal Non-Glare Reflector
Insulated Ceiling Housing - 7.5" Height
12V Bi-Pin Base MR16 Lamp 50 Watts Max.
5.00" Dia.
o
truncated
o
vertical to
Hanger Bars extend from
14" to 25.25" max.
Internal rotation
ring with locking
adjustment.
Provides 360º
rotation and
secures original
trim position after
relamping or
maintenance.
35º (0º to 35º tilt) locking
angle adjustment
Adjustment
Locking Knob
Description
Accurus Series Adjustable Truncated Cone Trim with
Insulated Ceiling Housing w/ Magnetic Transformer
For 277 Volt Transformer, add '277' to the end of the
©2004 RSA Lighting All Rights Reserved • Specifications subject to change without notice.
Project:
3.00" Dia.
9.88"
14.13"
7.50"
Housing adjusts in
plaster frame to accommodate
various ceiling thicknesses.
STATE OF WASHINGTON AIRTIGHT APPROVED
RSA LIGHTING 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
ACT-2085WH
ACT-2085S
w/ ACT-952-IC Housing
Trim detail shows fixture trim
below the ceiling line.
Perforated flap for
secure drywall
installation
17.50"
Finish Voltage / Wattage
White 12V / 50W Max.
Black
Silver
Stainless Steel
ACT-2085BK
ACT-2085SS
ACT-2085PM
Magnetic
Transformer
REV 062904
