Valor Horizon 601SFB Installation Instructions Manual

INSTALLATION INSTRUCTIONS
Standard Front 601SFB
Approved for use with Valor model 534 ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.

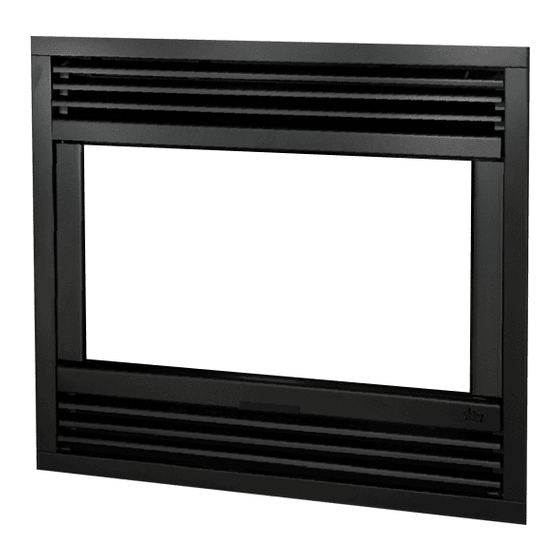

The 601SFB Standard Front in black is designed to be
used on its own or along with an outer surround trim
(supplied separately) on 534 Valor Horizon heaters.
34-7/8" (887 mm)
601SFB
4001167-06
© Copyright Miles Industries Ltd., 2020
Horizon
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Finished wall
(See appliance
installation manual)
3/4"
(19 mm)
Outer Trim
Supplied
Separately
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier.
These instructions are to be
used in conjunction with the
main installation instructions
for the above listed heater
model.
The Standard Front fits within the heater's black frame
and clips onto the mounting brackets inside the frame.
It is compatible with the 603FSK and 605FSK Trim Kits.
Barrier Screen
Overview (Heater and trim sold separately)
534
3 or 4-sided Trim
601 Standard Front
