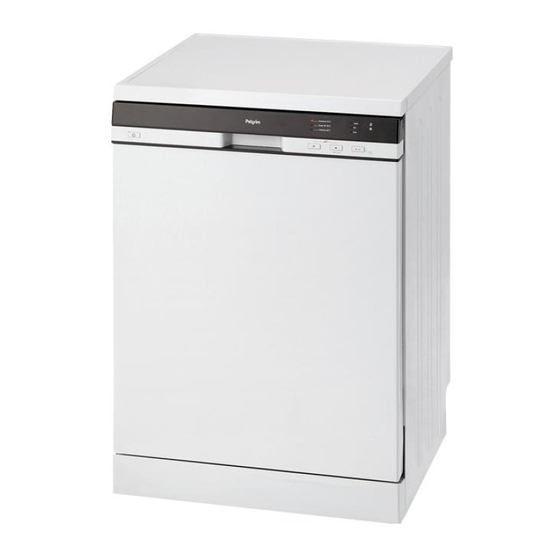

- Page 1 Dishwasher Instruction Instruction Manual Instruction Instruction Manual Manual Manual PVW6011WIT...
-
Page 2: Table Of Contents
CONTENTS Technical specifications …………………………………………………….. • Conformity with the standards and Test data …………………………….. • Safety information and Recommendations………………………………….. Recycling ..………………………............• Safety information …………………………………………………………… • Recommendations …...……………………………………………………… • Items not suitable for dishwashing ………………………………………… • Installing the machine ………………………………………………………….. Positioning the machine …………………………………………………….. •... - Page 3 Loading your dishwasher .……………………………………………………. Alternative basket loads …………………………………………………... • Programme descriptions .…………………………………………………….. Programme items ………………………………………………………….. • Getting familiar with your machine …………………………………………… 25 Switching on the machine and selecting a programme……………..Switching on the machine…………………………………………………. • Programme follow-up ……………………………………………………… • Changing a programme ……………………………………………………...
- Page 4 Active drying unit : This system provides better drying performance for your dishes. Worktop Rating plate Upper basket with racks Control Panel Upper spray arm Detergent and rinse-aid dispenser Lower basket Cutlery basket Lower spray arm Salt dispenser Filters Upper basket track latch...
-
Page 5: Technical Specifications
Technical specifications Capacity 12 place settings Height 850 mm Height 820 mm (without worktop) Width 598 mm Depth 598 mm Net Weight 46 kg Electricity input 220-240 V, 50 Hz Total Power 2200 W Heating Power 2000 W Pump Power 100 W Drain Pump Power 30 W... -
Page 6: Safety Information And Recommendations
SAFETY INFORMATION AND RECOMMENDATIONS Recycling • Certain components and the packaging of your machine have been produced from recyclable materials. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling. - Page 7 • Check whether the indoor electrical fuse system is connected according to the regulations. • All electrical connections must match the values indicated on the rating plate. • Pay special attention and be sure that the machine does not stand on the electricity supply cable. •...
- Page 8 mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.
-
Page 9: Recommendations
For your children’s safety • After removing the machine’s packaging, make sure that the packaging material is out of reach of children. • Do not allow children to play with or start the machine. • Keep your children away from detergents and rinse aids. •... -
Page 10: Items Not Suitable For Dishwashing
Items not suitable for dishwashing: • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials; • Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items,items soiled with abrasive, acidic or base chemicals. • Plastic items that are not heat-resistant, copper or tin-coated containers. -
Page 11: Water Connections
Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made. Do not grip the machine by its door or panel in order to move Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning. -
Page 12: Water Inlet Hose
Water inlet hose Do not use the water inlet hose of your old machine,if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine ,run water through it for a while before making the connection. -
Page 13: Water Outlet Hose
Water outlet hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink. -
Page 14: Electrical Connection
Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur. -
Page 15: Fitting The Machine Undercounter
Fitting the machine undercounter If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration. - Page 16 Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Product Without Insulation With Insulation All Product For 2nd Basket For 3rd Basket Height 820 mm 830mm 835 mm Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.
-
Page 17: Prior To Using The Machine
Prior to using the machine for the first time Check whether the electricity and supply water specifications match the values indicated by the • installation instructions for the machine. Remove all packaging materials inside the machine. • Set the water softener. •... -
Page 18: Testing Strip
Testing strip The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available). - Page 19 Adjust water hardness setting of your machine according to the level specified on the test track. Push the Programme selection button and hold down. In the meantime, energize the machine by pushing ON/OFF button. 4 Keep Programme selection button keys press until monitor lights are on and off.
-
Page 20: Detergent Usage
Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children. -
Page 21: Filling With Rinse Aid And Making The Setting
They produce good results for certain types of usage only. If you are using this type of • detergents, you need to contact the manufacturers and find out about the suitable conditions of use. When the conditions of use of such products and the machine settings are appropriate, •... -
Page 22: Loading Your Dishwasher
Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. LOADING YOUR DISHWASHER If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance. -
Page 23: Alternative Basket Loads
Alternative basket loads Lower Basket Top Basket... - Page 24 Faulty loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: "dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door. ...
-
Page 25: Programme Descriptions
PROGRAMME DESCRIPTIONS Programme No ( reference ) 50° 65° 65° C Programme names and temperatures soups, sauces, pasta, soups, sauces, pasta, Type of food waste cold meats, vegetables, not foods kept for long foods Detergent amount B: 25 cm / 15 cm A: 5 cm Prewash 65°... -
Page 26: Getting Familiar With Your Machine
GETTING FAMILIAR WITH YOUR MACHINE 1.) Power On/Off Button When the Power On/Off button is pressed, the lamp on the Start/Pause button starts lighting. 2.) Door Handle The door handle is used to open/close the door of your machine. 3.) Programme selector Button With the program selector button, you can select a suitable program for your dishes. - Page 27 7.) Program Monitor Lights Program flow can be monitored via program monitor lights on control panel. • Wash • • Child Lock Operation In order to activate child lock, press “Programme selector” and “ Half load” buttons simultaneously for 3 seconds.When activated, washing lamp flashes once.The same operation is performed in order to cancel child lock.When child lock is cancelled, washing lamp flashes twice.
-
Page 28: Switching On The Machine And Selecting A Programme
SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine The lamp on Program Start/Pause key goes off once the Program starts and the washing lamp is highlighted. Press the Power On/Off key. Select the program suiting your dishes via the Program Selector button. -
Page 29: Changing A Programme With Resetting
Changing a programme with resetting If you would like to cancel a program while a washing program is resumed. Hold Start/Pause button pressed for approx. 3 sec. until Finish light blinks. Once Finish light comes on, it means that the cycle has been cancelled. -
Page 30: Maintenance And Cleaning
MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. -
Page 31: Spray Arms
Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left. -
Page 32: Failure Codes And What To Do In Case Of Failure
FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE ERROR CODE ERROR CONTROL DESCRIPTION Wash Make sure the water input tap is totally open and that • Inadequate water there is no water cut. supply Close the water input tap, separate the water input •... - Page 33 If one of program monitor lights is on and start/Pause light is on and off, Your machine’s door is open, shut the door. If the programme won’t start Check if the plug is connected. • Check your indoor fuses. • Be sure that the water inlet tap is turned on.
-
Page 34: Practical And Useful Information
If the dishes won't dry up A programme without a dry operation selected. • Rinse aid dosage set too low • Dishes unloaded too fast. • If there are rust stains on the dishes Stainless-steel quality of the dishes washed is insufficient. •... - Page 35 THE PRODUCT FICHE (Spect) Supplier's trade mark PELGRIM Supplier's model PVW6011WIT Capacity of dishwasher 12 The energy efficiency class A+ 28 5 Annual energy consumption in kWh per year (AE ) ( 280 Cycle ) * 1,00 Energy consumption (E ) (kWh per cycle) Offmode power consumption (W) (P ) 0,05 Lefton mode power consumption (W) (P ) 0,65 Annual water consumption in litres per year (AW ) ( 280 Cycle ) ** 3360 Drying efficiency class *** A Standard programme name **** Eco 50 ˚C Programme time for standard cycle ( min) 160 Noise dB(A) 49 * Energy consumption kwh per year, based on 280 standard cleaning cycles using cold water fill ...
