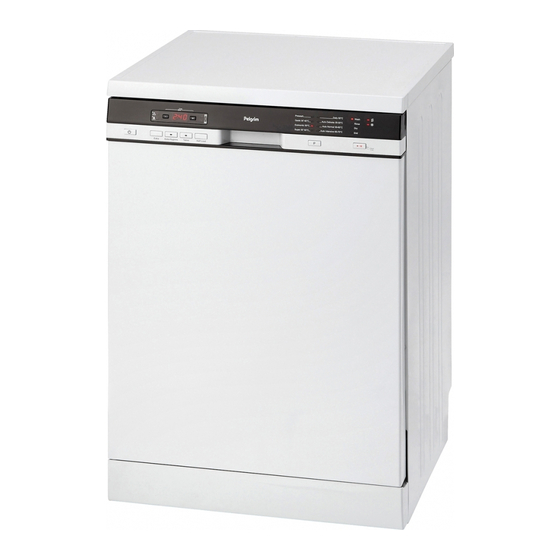

Related Manuals for Pelgrim PVW6030WIT/P01
Summary of Contents for Pelgrim PVW6030WIT/P01
- Page 1 Dishwasher Instruction Instruction Manual Instruction Instruction Manual Manual Manual PVW6030WIT/P01...
-
Page 2: Table Of Contents
CONTENTS Getting familiar with your machine …………………………………………… Technical specifications …………………………………………………….. • Conformity with the standards and Test data …………………………….. • Safety information and Recommendations………………………………….. Recycling ..………………………............• Safety information …………………………………………………………… • Recommendations …...……………………………………………………… • Items not suitable for dishwashing ………………………………………… •... -
Page 3: Programme Descriptions
Loading your dishwasher .……………………………………………………. Alternative basket loads …………………………………………………... • Standard loading and Test data ………………………………………….. • Programme descriptions .…………………………………………………….. Programme items ………………………………………………………….. • Switching on the machine and selecting a programme……………..Switching on the machine…………………………………………………. • Programme follow-up ……………………………………………………… • Changing a programme ……………………………………………………... - Page 4 Turbo Drying Unit: This system provides better drying performance for your dishes. Worktop Rating plate Upper basket with racks Control Panel Upper spray arm Detergent and rinse-aid dispenser Lower basket Cutlery basket Lower spray arm Salt dispenser Filters Upper basket track latch...
-
Page 5: Getting Familiar With Your Machine
GETTING FAMILIAR WITH YOUR MACHINE 1.) ON/OFF Button When pressed on ON/OFF button, the machine is energized and the light on Start/Standby button goes on. 2.) Extra Rinse / Dry Button You can add extra rinsing or drying functions into the selected program by using extra button. - Page 6 Thus, washing up shall be done only on the lower basket of your machine. In using this feature,make sure that there are no dishes in the upper basket. Note : If you have used an extra feature on the latest washing program, this feature will remain active also on the next washing program.
-
Page 7: Technical Specifications
Technical specifications Capacity ………………………… 15 place settings Height …………………………… 845 mm Height (without worktop) ………. 815 mm Width …………………………….. 596 mm Depth ……………………………. 598 mm Net Weight ……………………... 55 kg Electricity input ……………..220-240 V, 50 Hz Total Power …………………….. 2200 W Heating Power ………………….. -
Page 8: Recommendations
All electrical connections must match the values indicated on the rating plate. • Pay special attention and be sure that the machine does not stand on the electricity supply cable. • Never use an extension cord or a multiple socket for making a connection. The plug should be •... -
Page 9: Items Not Suitable For Dishwashing
You are recommended not to load into your machine any dishes different or more than indicated. • Items not suitable for dishwashing: Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials; • Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items, •... -
Page 10: Water Inlet Hose
Water inlet hose Do not use the water inlet hose of your old machine, if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long-unused water inlet hose to your machine, run water through it for a while before making the connection. -
Page 11: Fitting The Machine Undercounter
Your machine is set according to 220-240 V. If the mains voltage in your location is 110 V, connect a transformer of 110/220 V and 3000 W inbetween. The machine should not be plugged in during positioning. Always use the coated plug supplied with your machine. Running in low voltage will cause a decline in washing quality. - Page 12 Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.
-
Page 13: Prior To Using The Machine
Prior to using the machine for the first time Check whether the electricity and supply water specifications match the values indicated by the • installation instructions for the machine. Remove all packaging materials inside the machine. • Set the water softener. •... -
Page 14: Testing Strip
Testing strip The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available). - Page 15 Adjust water hardness setting of your machine according to the level specified on the test track. Push the Programme selection button and hold down. In the meantime, energize the machine by pushing ON/OFF button. Hold down the programme selection button until “SL” on the screen goes off. After “SL”...
-
Page 16: Detergent Usage
Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children. -
Page 17: Filling With Rinse Aid And Making The Setting
They produce good results for certain types of usage only. If you are using this type of • detergents, you need to contact the manufacturers and find out about the suitable conditions of use. When the conditions of use of such products and the machine settings are appropriate, •... -
Page 18: Loading Your Dishwasher
Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. LOADING YOUR DISHWASHER If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance. - Page 19 Spoon rack It allows your long-stemmed goblets to be washed safely as well as it is a part to provide your spoons and forks put easily to spoon rack. Do not lean your long-stemmed goblets and glasses against each other but spoon rack, thus during the washing it is ensured your glasses and goblets stay in place and a safe washing by preventing...
- Page 20 Top basket height adjustment while it is full Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed.
- Page 21 Modular fork spoon According to the number of your dirty forks, spoons and knives, you can separate your basket of modular fork and spoon into two separate parts. Hold your basket from both sides to separate it and you can separate your basket into two separate parts by moving the one side forward while moving the other side back.
- Page 22 By placing your modular fork spoon basket in different places at upper or lower basket, you can form appropriate fields for your other dishes. Below you can see several recommended settlements.
-
Page 23: Alternative Basket Loads
Alternative basket loads Lower Basket Top Basket Faulty loads... -
Page 24: Standard Loading And Test Data
Standard loading and test data Capacity: lower Upper and lower baskets: 15 place settings. The upper basket should be adjusted to position Cups should be placed on to the dish rack pins. Detergent / Rinse aid 7+28 cm , in accordance with EN50242-DIN 44990 IEC 436 (international norms) / Rinse aid dosage adjustment: 4 Programme test Economic 50°... -
Page 25: Programme Items
PROGRAM DESCRIPTIONS Program items Name of Program Pre-washing Auto Auto Normal Auto Quick 30 min. Economic Super 55 min. Daily Delicate Intense Washing Temperature 30-50 50-60 60-70 Type of Food Fragment Detects contamination level of dishes and sets Fresh coffee, milk, Fresh coffee, milk, Tarried soup, sauce, Fresh coffee, milk,... -
Page 26: Switching On The Machine
SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine The lamp on Program Start/Pause key goes off once the Program starts and the washing lamp is highlighted. Press the Power On/Off key. Select the program suiting your dishes via the Program Selector button. -
Page 27: Changing A Programme With Resetting
Changing a programme with resetting If you would like to cancel a program while a washing program is resumed. Hold Start/Pause button pressed for approx. 3 sec. until Finish light blinks. Once Finish light comes on, it means that the cycle has been cancelled. -
Page 28: Filters
MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. -
Page 29: Spray Arms
Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left. - Page 30 FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE ERROR CODE ERROR DESCRIPTION CONTROL • Make sure the water input tap is totally open and that there is no water cut. Inadequate water supply Close the water input tap, separate the water input hose from the tap and clean the filter at •...
- Page 31 If one of program monitor lights is on and start/Pause light is on and off, Your machine’s door is open, shut the door. If the programme won’t start Check if the plug is connected. • Check your indoor fuses. • Be sure that the water inlet tap is turned on.
-
Page 32: Practical And Useful Information
If the dishes won't dry up A programme without a dry operation selected. • Rinse aid dosage set too low • Dishes unloaded too fast. • If there are rust stains on the dishes Stainless-steel quality of the dishes washed is insufficient. •... - Page 33 THE PRODUCT FICHE (Spect) Supplier's trade mark PELGRIM Supplier's model PVW6030WIT/P01 Capacity of dishwasher 15 The energy efficiency class A+ Annual energy consumption in kWh per year (AE ) ( 280 Cycle ) * Energy consumption (E ) (kWh per cycle) 0,98 Offmode power consumption (W) (P ) 0,05 Lefton mode power consumption (W) (P ) 1 Annual water consumption in litres per year (AW ) ( 280 Cycle ) ** 2520 Drying efficiency class *** A Standard programme name **** Eco 50 ˚C Programme time for standard cycle ( min) Noise dB(A) 45 ...
