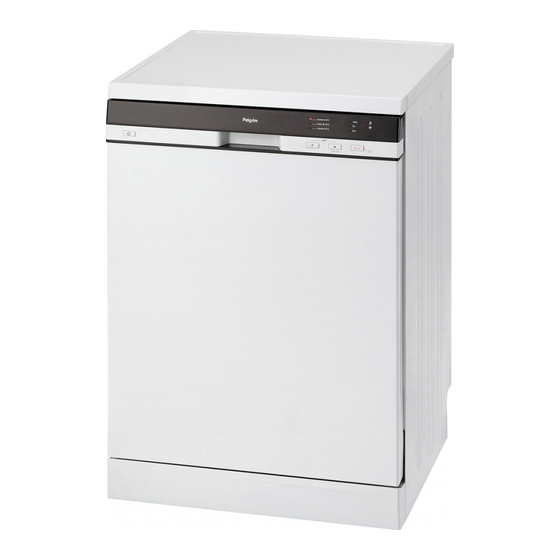

Summary of Contents for Pelgrim PVW6010WIT
- Page 1 Dishwasher Instruction Instruction Manual Instruction Instruction Manual Manual Manual PVW6010WIT/P01...
-
Page 2: Table Of Contents
CONTENTS Getting familiar with your machine …………………………………………… Technical specifications …………………………………………………….. • Conformity with the standards and Test data …………………………….. • Safety information and Recommendations………………………………….. Recycling ..………………………............• Safety information …………………………………………………………… • Recommendations …...……………………………………………………… • Items not suitable for dishwashing ………………………………………… •... - Page 3 Loading your dishwasher .……………………………………………………. Alternative basket loads …………………………………………………... • Standard loading and Test data ………………………………………….. • Programme descriptions .…………………………………………………….. Programme items ………………………………………………………….. • Switching on the machine and selecting a programme……………..Switching on the machine…………………………………………………. • Programme follow-up ……………………………………………………… • Changing a programme ……………………………………………………...
- Page 4 Active drying unit : This system provides better drying performance for your dishes. Worktop Rating plate Upper basket with racks Control Panel Upper spray arm Detergent and rinse-aid dispenser Lower basket Cutlery basket Lower spray arm Salt dispenser Filters Upper basket track latch...
-
Page 5: Getting Familiar With Your Machine
GETTING FAMILIAR WITH YOUR MACHINE 1.) Power On/Off Button When the Power On/Off button is pressed, the lamp on the Start/Pause button starts lighting. 2.) Door Handle The door handle is used to open/close the door of your machine. 3.) Programme selector Button With the program selector button, you can select a suitable program for your dishes. - Page 6 7.) Program Monitor Lights Program flow can be monitored via program monitor lights on control panel. • Wash • • Child Lock Operation In order to activate child lock, press “Programme selector” and “ Half load” buttons simultaneously for 3 seconds.When activated, washing lamp flashes once.The same operation is performed in order to cancel child lock.When child lock is cancelled, washing lamp flashes twice.
-
Page 7: Technical Specifications
Technical specifications Capacity ………………………… 12 place settings Height …………………………… 845 mm Height (without worktop) ………. 815 mm Width …………………………….. 596 mm Depth ……………………………. 598 mm Net Weight ……………………... 46 kg Electricity input ……………..220-240 V, 50 Hz Total Power …………………….. 2200 W Heating Power ………………….. -
Page 8: Recommendations
All electrical connections must match the values indicated on the rating plate. • Pay special attention and be sure that the machine does not stand on the electricity supply cable. • Never use an extension cord or a multiple socket for making a connection. The plug should be •... -
Page 9: Items Not Suitable For Dishwashing
You are recommended not to load into your machine any dishes different or more than indicated. • Items not suitable for dishwashing: Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials; • Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items, •... -
Page 10: Water Inlet Hose
Water inlet hose Do not use the water inlet hose of your old machine, if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long-unused water inlet hose to your machine, run water through it for a while before making the connection. -
Page 11: Fitting The Machine Undercounter
Your machine is set according to 220-240 V. If the mains voltage in your location is 110 V, connect a transformer of 110/220 V and 3000 W inbetween. The machine should not be plugged in during positioning. Always use the coated plug supplied with your machine. Running in low voltage will cause a decline in washing quality. - Page 12 Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.
-
Page 13: Prior To Using The Machine
Prior to using the machine for the first time Check whether the electricity and supply water specifications match the values indicated by the • installation instructions for the machine. Remove all packaging materials inside the machine. • Set the water softener. •... -
Page 14: Testing Strip
Testing strip The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available). - Page 15 Adjust water hardness setting of your machine according to the level specified on the test track. Push the Programme selection button and hold down. In the meantime, energize the machine by pushing ON/OFF button. 4 Keep Programme selection button keys press until monitor lights are on and off.
-
Page 16: Detergent Usage
Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children. -
Page 17: Filling With Rinse Aid And Making The Setting
They produce good results for certain types of usage only. If you are using this type of • detergents, you need to contact the manufacturers and find out about the suitable conditions of use. When the conditions of use of such products and the machine settings are appropriate, •... -
Page 18: Loading Your Dishwasher
Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. LOADING YOUR DISHWASHER If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance. -
Page 19: Alternative Basket Loads
Alternative basket loads Lower Basket Top Basket Faulty loads... -
Page 20: Standard Loading And Test Data
Standard loading and test data Capacity: Upper and lower baskets: 12 place settings. The upper basket should be adjusted to high position Cups should be placed on to the dish rack pins. Detergent / Rinse aid 5+25 cm , in accordance with EN50242-DIN 44990 IEC 436 (international norms) / Rinse aid dosage adjustment: 4 Programme test Economic 50°... -
Page 21: Programme Descriptions
PROGRAMME DESCRIPTIONS Programme No ( reference ) 50° 65° 65° C Programme names and temperatures soups, sauces, pasta, soups, sauces, pasta, Type of food waste cold meats, vegetables, not foods kept for long foods Detergent amount A: 25 cm / 15 cm B: 5 cm Prewash 65°... -
Page 22: Switching On The Machine And Selecting A Programme
SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine The lamp on Program Start/Pause key goes off once the Program starts and the washing lamp is highlighted. Press the Power On/Off key. Select the program suiting your dishes via the Program Selector button. -
Page 23: Changing A Programme With Resetting
Changing a programme with resetting If you would like to cancel a program while a washing program is resumed. Hold Start/Pause button pressed for approx. 3 sec. until Finish light blinks. Once Finish light comes on, it means that the cycle has been cancelled. -
Page 24: Maintenance And Cleaning
MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. -
Page 25: Spray Arms
Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left. -
Page 26: Failure Codes And What To Do In Case Of Failure
FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE ERROR CODE ERROR CONTROL DESCRIPTION Wash Make sure the water input tap is totally open and that • Inadequate water there is no water cut. supply Close the water input tap, separate the water input •... - Page 27 If one of program monitor lights is on and start/Pause light is on and off, Your machine’s door is open, shut the door. If the programme won’t start Check if the plug is connected. • Check your indoor fuses. • Be sure that the water inlet tap is turned on.
-
Page 28: Practical And Useful Information
If the dishes won't dry up A programme without a dry operation selected. • Rinse aid dosage set too low • Dishes unloaded too fast. • If there are rust stains on the dishes Stainless-steel quality of the dishes washed is insufficient. •... - Page 29 THE PRODUCT FICHE (Spect) Supplier's trade mark PELGRIM Supplier's model PVW6010WIT/P01 Capacity of dishwasher 12 The energy efficiency class A+ Annual energy consumption in kWh per year (AE ) ( 280 Cycle ) * 273 Energy consumption (E ) (kWh per cycle) 0,95 Offmode power consumption (W) (P ) 0,05 Lefton mode power consumption (W) (P ) 0,65 Annual water consumption in litres per year (AW ) ( 280 Cycle ) ** 3360 Drying efficiency class *** A Standard programme name **** Eco 50 ˚C Programme time for standard cycle ( min) 160 Noise dB(A) 49 * Energy consumption kwh per year, based on 280 standard cleaning cycles using cold water fill ...
