Seat - BMW R 850 R Comfort Rider's Manual

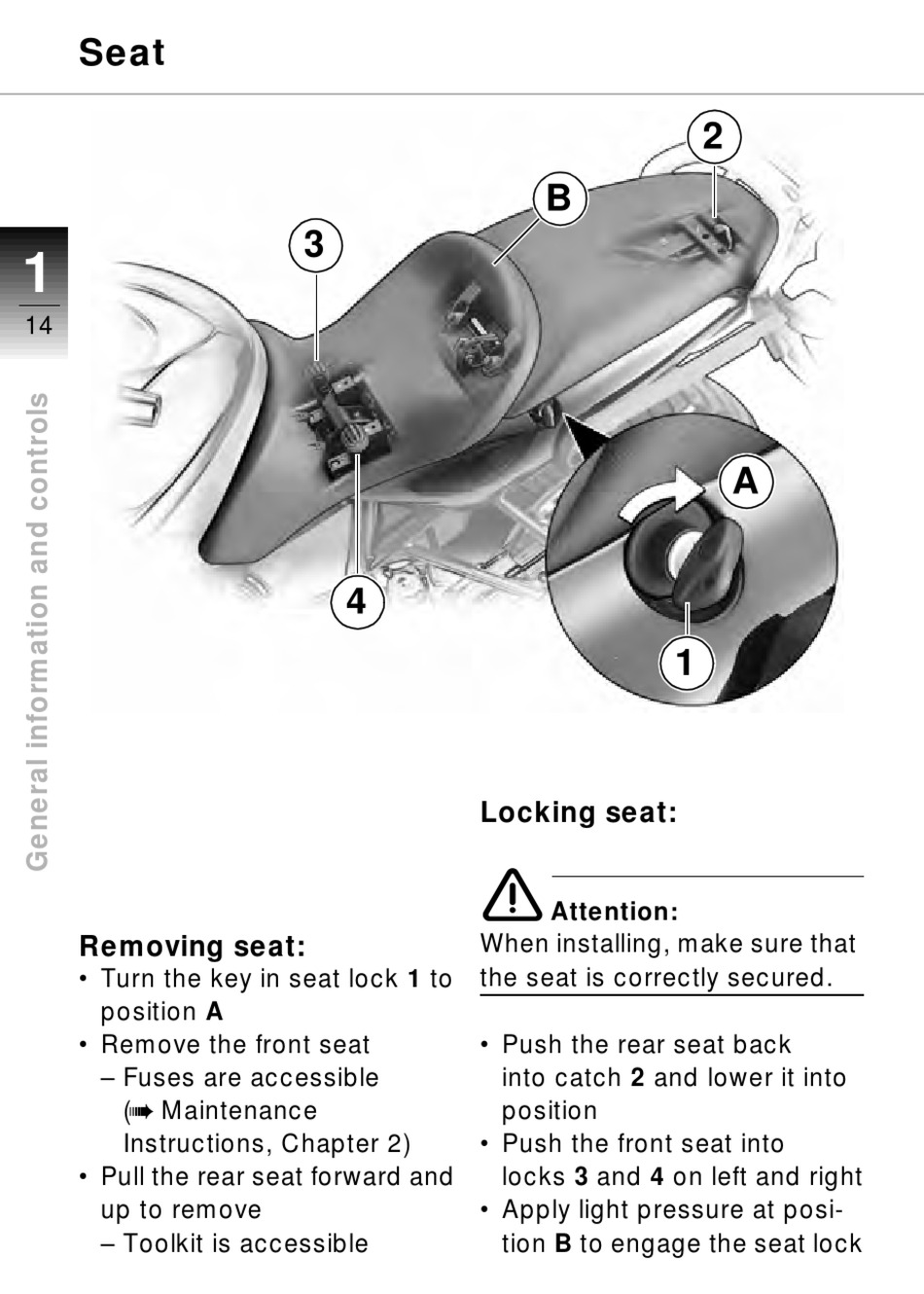

Seat

2 1
14
Removing seat:
• Turn the key in seat lock 1 to
position A
• Remove the front seat
– Fuses are accessible
( Maintenance
b
Instructions, Chapter 2)
• Pull the rear seat forward and
up to remove
– Toolkit is accessible
3
4
B
Locking seat:
e
Attention:
When installing, make sure that
the seat is correctly secured.
• Push the rear seat back
into catch 2 and lower it into
position
• Push the front seat into
locks 3 and 4 on left and right
• Apply light pressure at posi-
tion B to engage the seat lock
2
A
1
