BMW R 850 R Comfort Rider's Manual page 17

3

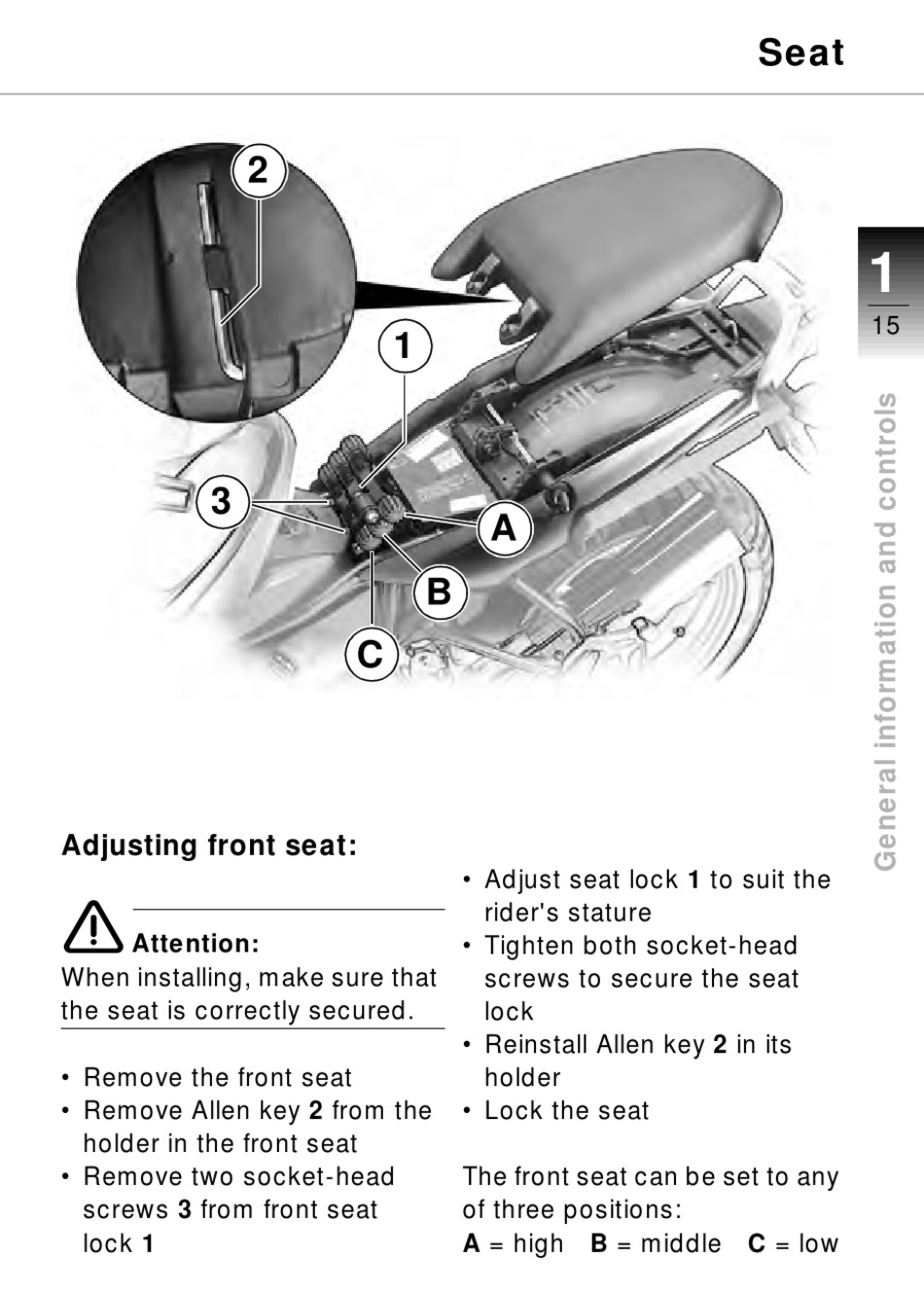

Adjusting front seat:
e
Attention:
When installing, make sure that
the seat is correctly secured.
• Remove the front seat
• Remove Allen key 2 from the
holder in the front seat
• Remove two socket-head
screws 3 from front seat
lock 1
2
1
C
A
B
• Adjust seat lock 1 to suit the
rider's stature
• Tighten both socket-head
screws to secure the seat
lock
• Reinstall Allen key 2 in its
holder
• Lock the seat
The front seat can be set to any
of three positions:
A = high B = middle C = low
Seat
2 1
15
