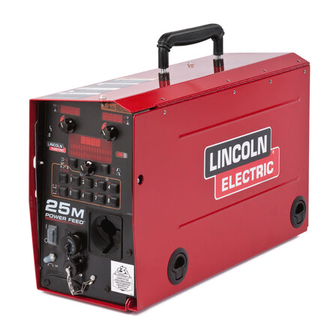

Lincoln Electric POWER FEED 25M Service Manual

Hide thumbs Also See for POWER FEED 25M:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
SVM185-A
July, 2008
POWER FEED
25M
®
For use with machine code numbers 11313
Safety Depends on You
Lincoln arc welding and cutting
equipment is designed and built
with safety in mind.
However,
your overall safety can be
increased by proper installation
. . . and thoughtful operation on
DO NOT INSTALL,
your part.
OPERATE OR REPAIR THIS
EQUIPMENT WITHOUT READ-
ING THIS MANUAL AND THE
SAFETY PRECAUTIONS CON-
TAINED THROUGHOUT.
And,
most importantly, think before
you act and be careful.
SERVICE MANUAL
opyright © Lincoln Global Inc.
• World's Leader in Welding and Cutting Products •
• Sales and Service through Subsidiaries and Distributors Worldwide •
Cleveland, Ohio 44117-1199 U.S.A. TEL: 888.935.3877 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com
