EXT Racing Shox FERRO USD36 Quick Manual

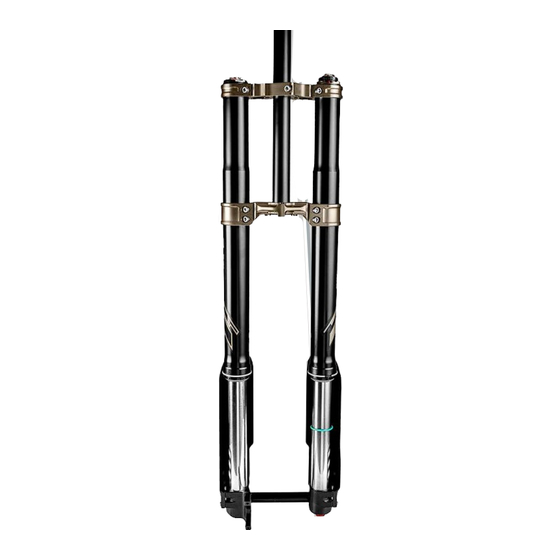

Ferro USD 36 fork is specifically designed for electric dirt-bike use. This
▶
product is developed and designed for bike industry and must be installed
on related vehicles, including pedal assisted motorized cycles that produce
a maximum of 7 KW of power.
Any such unhautorized use may result in failure of the suspension, which
may cause a crash and result in property damage, SERIOUS INJURY or
DEATH and void warranty.
▶ Do not modify any part of the fork, all components are precisely designed
as they are.
▶
Always use EXT Racing Shox parts. Use of other parts or self built ones
void warranty and could cause a structural failure.
▶
Ferro USD 36 fork contains pressurized gas. Do not open, service or
modify this product.
▶ External visual inspection may reveal cracks or defect, if you notice them
please refer immediately to an EXT service point or EXT directly.
SERVICE INTERVAL
RACING USE
Every 50 hours riding or 6 months
AMATORIAL USE
Every 100 hours riding or 1 year
wheel installation
1. Remove the hex axle and install the front wheel through the dropout.
2. Center the axle bolt and tighten the hex axle to 10-14Nm.
3. Tighten the pinch bolts on the brake side first (left) to 8Nm.
4. Compress the fork a few times to align both legs.
5. Tighten the pinch bolts on the right side to 8Nm.
6. Assembly back the brake caliper on its mount.
read the complete user manual
to follow the full procedure.
▶ Following the scheduled inspection allows you to have a functional and
safe fork.
▶ If your riding weight is more than 90kg/188lbs inspection must be more
frequent.
The product warranty is applied if product has been operated and
▶
maintainted in accordance with recommendations in the user manual
(downloadable from the link below).
▶
An improperly installed fork can be extremely dangerous, we recommend
to have it installed by a qualified mechanic.
Read and ensure you have understood the information in the user manual
▶
or other technical documents related to this product before using it.
▶ Do not exceed 300 psi/20,6 bar.
COMPLETE USER MANUAL
Scan the QR code to download the complete
user manual.
If you can't download it, please visit the Ferro
USD 36 page on our website.
Scan the QR code to download the complete
user manual.
If you can't download it, please visit the ERA v2
page on our website.
