Z GRILLS ZPG-450A Owner's Manual
Wood pellet gril
Hide thumbs
Also See for ZPG-450A:
- Owner's manual (26 pages) ,
- Owner's manual (21 pages) ,
- Owner's manual (23 pages)
Related Manuals for Z GRILLS ZPG-450A
Summary of Contents for Z GRILLS ZPG-450A

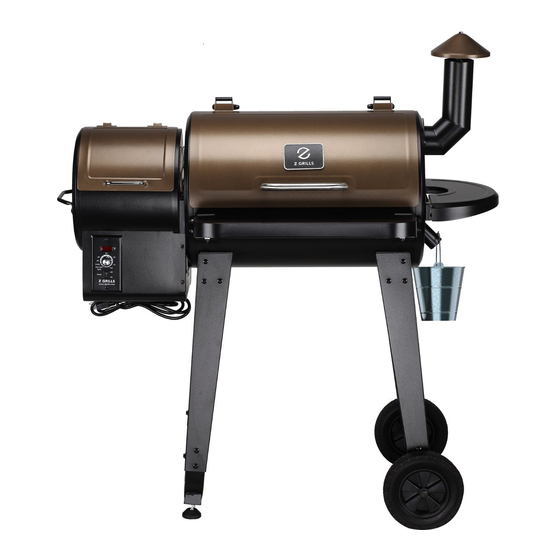

- Page 1 Smoke Shut Down High Cycle Power www.zgrills.com WOOD PELLET GRILL ZPG - 450A OWNER’S MANUAL 1-785-317-5170 EMAIL:support@zgrills.com WEBSITE:www.zgrills.com...
-
Page 2: Table Of Contents
CONTENTS WARNINGS COMPOENT LIST ASSEMBLY INSTRUCTIONS INITIAL FIRING INSTRUCTIONS SUBSEQUENT START-UP OPERATING TIPS MAINTENANCE & CLEANING TROUBLESHOOTING DIGTAL THERMOSTAT CONTROL WIRING DIAGRAM Z GRILLS SUPPORT -Y LIMITED WARRANTY... -
Page 3: Warnings
Do not try to smother the fire. Clean and maintain your grill after each time use. We suggest that use Z GRILLS BBQ WOOD PELLETS, which are specifically made to work in our grills. Do not use your grill on rainy days. -
Page 4: Compoent List
ASSEMBLY INSTRUCTIONS COMPONENT LIST ITEM QTY DESCRIPTION ITEM QTY DESCRIPTION Hinge Assy Porcelain Grills Pivot Warming Rack Hopper Bottom Cover Hopper Guard Name Plate Hopper Shell Lid Handle Cable Box Grill Chamber Assembly Power Cord Hopper Assembly Digital Control Chimney Cap Assembly Auger Drive Motor Smoke Stack Assembly Auger Nylon Ring... - Page 5 1). Turn the grill body over, attach the Leg with Wheels(25) to the chamber by using Bolt(B), Spring Washers(E), Flat Gasket(J) orderly. Using screwdriver to tighten them. BODY FRAME ASSEMBLY: 1). Attach 2pcs Leg(20)(21) to Right and Left Lateral Leg(29)(28) with Bolt(B), Spring Washers(E), Flat Gasket(J) orderly.
- Page 6 INSTALLING CHAMBER HANDLE TO LID: ATTACHING THE SMOKESTACK AND CHIMNEY CAP: 1)Keep the Lid(4) open, attach Bolt(A) through Gasket(G), then installing handle(6) to Lid(4). 1)Using bolt (A) through the holes of Smokestack(10) and the holes of Smokestack Repeat the above steps on the other side. Insulation Cotton(11), attaching two bolts(A) to the hole of Grill body, then 2)Using wrench to tighten them.(Do not over tighten these Bolts) attaching Gasket(G) and nuts(H) , using wrench to tighten them.
- Page 7 ATTACHING COOKING GRATE AND WARMING RACK: ATTACHING HEAT BAFFLE: Attaching the Porcelain cooking grate(32) and warming rack(33) in the chamber, as shown. Attaching the Heat Baffle(30) on the Fire Pot, as shown. HANG ON THE GREASE BASKET: POSITIONING THE GREASE DRAIN PAN: Locate the Grease Drain Tube which is on the right side of the chamber, then hang the Locate the Grease Drain Pan(31) on the pan support inside the Chamber(7).
-
Page 8: Initial Firing Instructions
Pellet Hopper. Failure to follow the steps may cause a hazardous “over-firing” Z Grills for the first time and each time the grill runs out of pellets. of your grill due to an excess of unburned pellets in the Firepot. -
Page 9: Operating Tips
OPERATING TIPS 1.Just like other barbecues, the actual temperature of this grill or the cooking times will be affected by external temperature, humidity, wind conditions, quality of pellets 8.Turn on the grill and turn the Temperature Dial to any setting desired. With and so on. -
Page 10: Maintenance & Cleaning
Use a warm soap water to wipe the grease. Do not use oven cleaner, abrasive cleansers or abrasive cleaning pads on the outside grill surfaces. Use Z Grills Cover to protect your grill is highly recommended. Use a high-quality car wax on the outside surfaces of the grill can protect your paint finish. -
Page 11: Troubleshooting
Replace the fuse if blown. your name, phone number, address, to place an order Get your new parts Z Grills model number, serial number and part identification number from If both of the Draft Inducer Fanand the Contact with your the COMPONENT LIST. -
Page 12: Digtal Thermostat Control Wiring Diagram
Thank you for shopping with us! If you have any question, feel free to contact us or your dealer. Z GRILLS INC. will offer the best technical and sales support in the industry. Please be prepared to provide the following information:... - Page 13 Z GRILLS 3 YEARS LIMITED WARRANTY Z Grills Inc guarantees a 3 years warranty of our products from the date of purchase by the original owner against defects in all materials and workman-ship. During the warranty period, Z Grills Inc will at its option repair or replace the defective parts.
