Grandview FC-FHP-MF Series Installation Manual

Pairing/Unpairing
(Remote have been paired at factory)
Disconnect the power supply for 10 seconds and then reconnect, press the Up and Stop button simultaneously within
10 seconds of reconnection. The motor will rotate forward and then backward once signaling a successful pairing.
Repeat this process to unpair a remote. Repeat the process an odd number of times to pair, and an even number of
times to unpair.
Electronic Positioning
Use paper clip to press Positioning Setting Key on the back of the remote until light turns on, set the projection screen at
desire position using the Jog Up and Jog Down buttons, press the Stop button to confirm position. Setting is successful
if the light on the back of the remote is turned off.
Anti-Pinch Function
The decorative door is equipped with anti-pinch function to protects hands or objects while screen is in operation.
Ⅲ.Decorative door anti-pinch function
The decorative door of this product is equipped with a flexible
door opening and closing device, which can protect hands or
objects from accidentally extending into the screen when
closing the door.
Ⅳ. Maintenance
Ultra-short throw ambient light rejection fabric:
DO NOT USE RAG OR PAPER TOWEL TO WIPE
Use brush provided to brush lightly horizontally along the texture of the screen to remove dust or other fine particles.
●
For light-colored smudges that affects viewing, try removing with residue-free tape.
●
Non ambient light rejection regular throw fabric:
Use clean water with mild detergent to gently wipe the stains on the surface of the fabric (do not use corrosive detergents).
Only retract the projection screen when the fabric is completely dry.
Ⅴ.Electrical parameters
Voltages & Frequencies: 110V/60Hz or 220V/50Hz
(Actual voltage shall be subject to the electrical label shown on the product)
Wireless remote control (F): Voltage 3V, using battery CR2032X2, transmitting frequency; 868MHz, effective control distance
is about 15 meters.
Troubleshooting

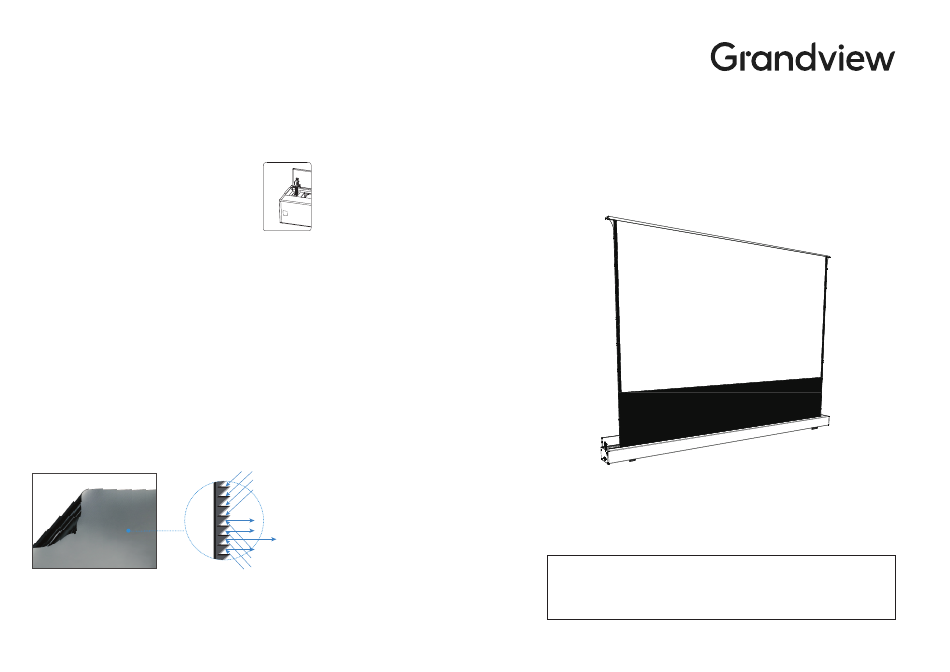

①Black grid fabric surface is carved with optical grating tooth，enabling the targeted reflection for ultra short throw
projector light beam and forming the viewing image. Projection theory as below picture shown: Screen adsorbs only
the ambient light from the top but resistance to ambient light from horizontal side will be weaken,please pay attention
to the light beam direction when applied.
②The screen adpots the splicing process,and the splicing line has a certain curvature due to the source of upper and lower
tension,which does not affect the actual projected picture.which is a normal phenomenon.
③Fabric surface flatness: Lower black drop perfect range:250-350mm
GUANGZHOU GRANDVIEW CRYSTAL SCREEN CO.,LTD.
A: No.43 S, Guomao Ave.Hualong,Panyu,Guangzhou,Guangdong,P.R.C
T: 020-84899499
Ambient light
Reflection image light
Ultra short throw projection light
Motorized Tabletop Screen Installation Manual
Caution
Please tear out all the blue tape from the trap door before powering on.
●
Please do not reach into the casing gap to prevent hands injury when the screen goes up.
●
Please put the screen in place with no wind to prevent it from falling over.
●
Please Do not disassemble or replace the original spare parts at will.
●
Thank you for choosing Grandview products. Please read the manual carefully before installation and use.
Model: FC-FHP-MFxxx
