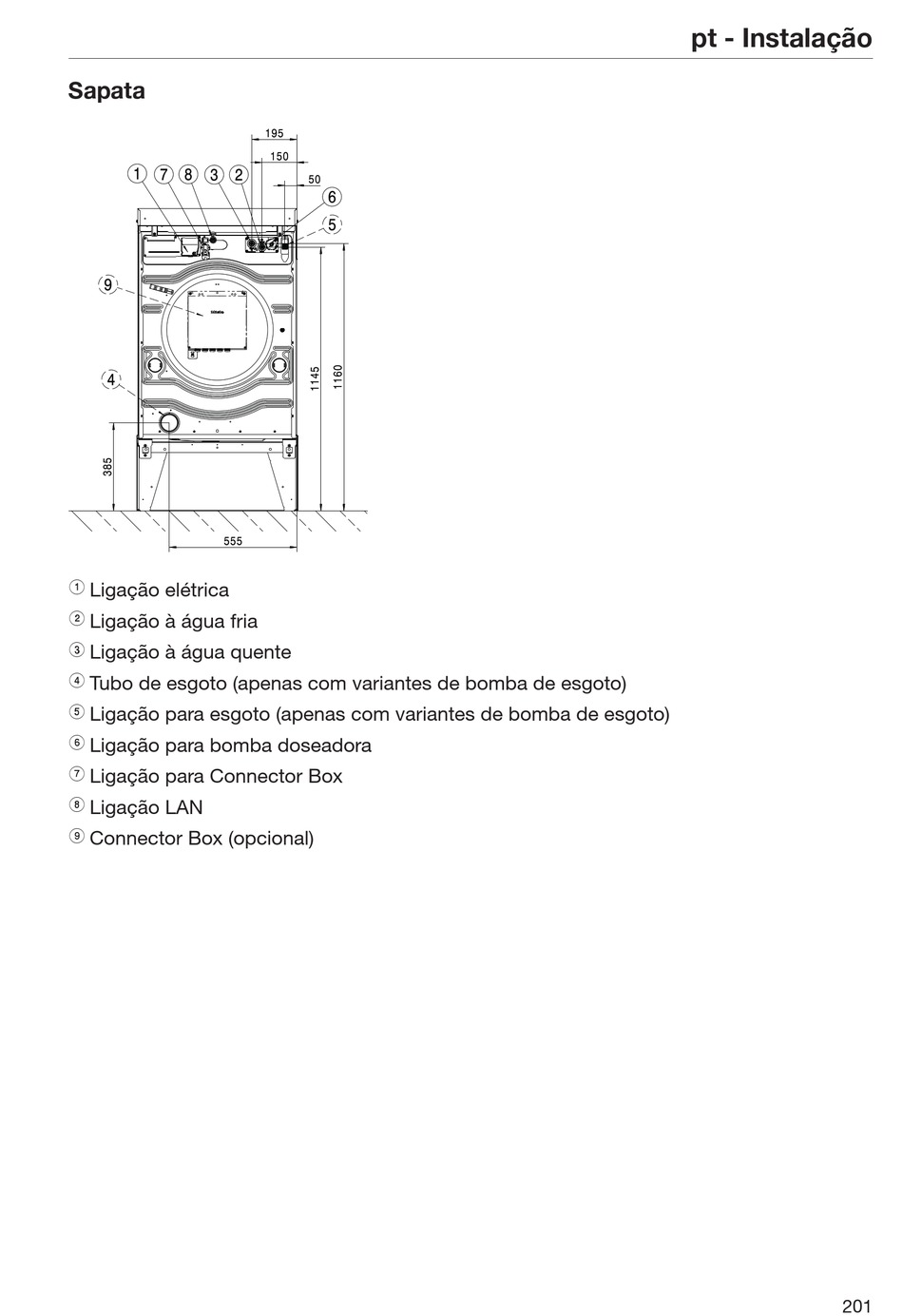

Sapata
a
Ligação elétrica
b
Ligação à água fria
c
Ligação à água quente
d
Tubo de esgoto (apenas com variantes de bomba de esgoto)
e
Ligação para esgoto (apenas com variantes de bomba de esgoto)
f
Ligação para bomba doseadora
g
Ligação para Connector Box
h
Ligação LAN
i
Connector Box (opcional)
pt - Instalação
201
