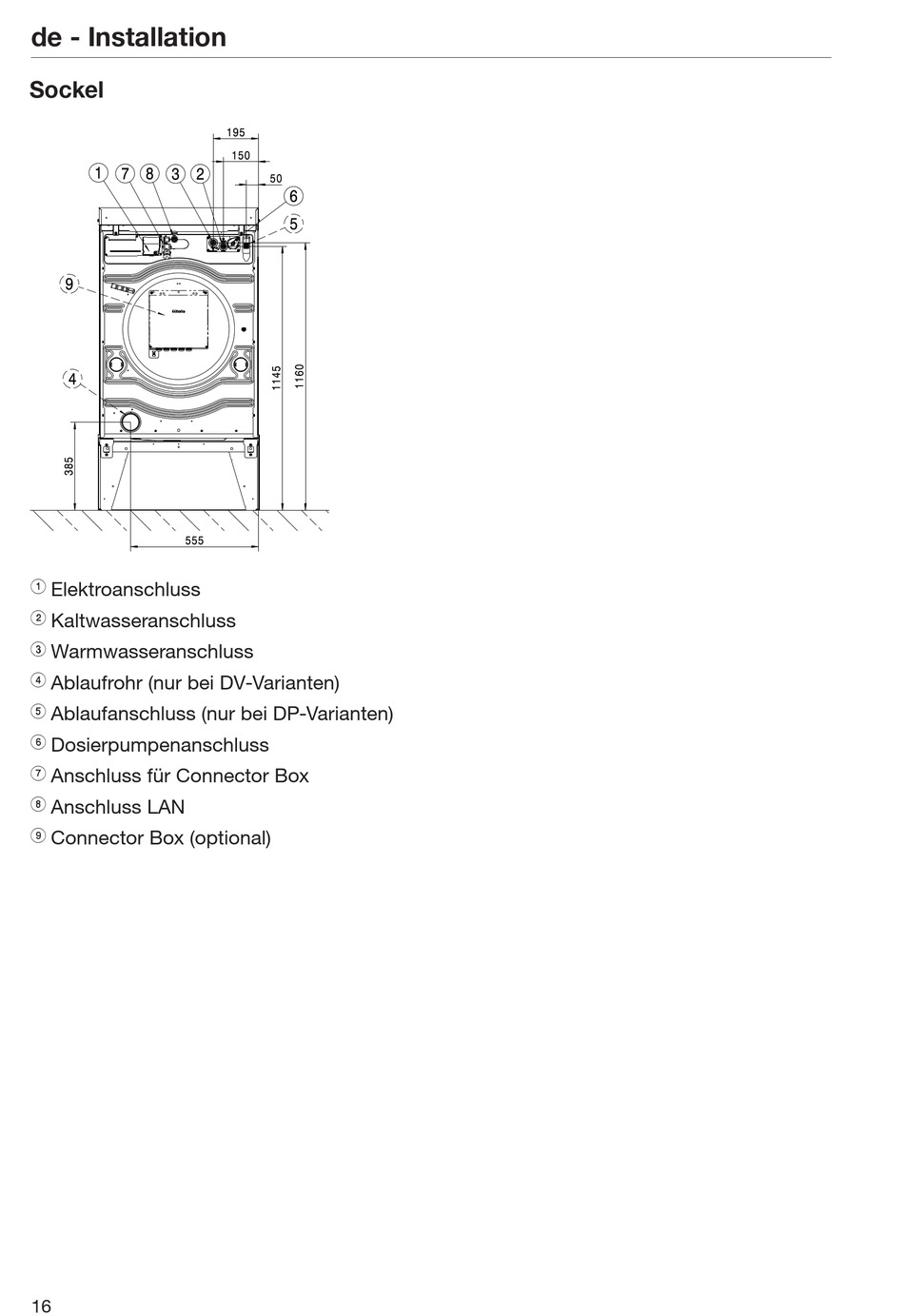

de - Installation
Sockel
a
Elektroanschluss
b
Kaltwasseranschluss
c
Warmwasseranschluss
d
Ablaufrohr (nur bei DV-Varianten)
e
Ablaufanschluss (nur bei DP-Varianten)
f
Dosierpumpenanschluss
g
Anschluss für Connector Box
h
Anschluss LAN
i
Connector Box (optional)
16
