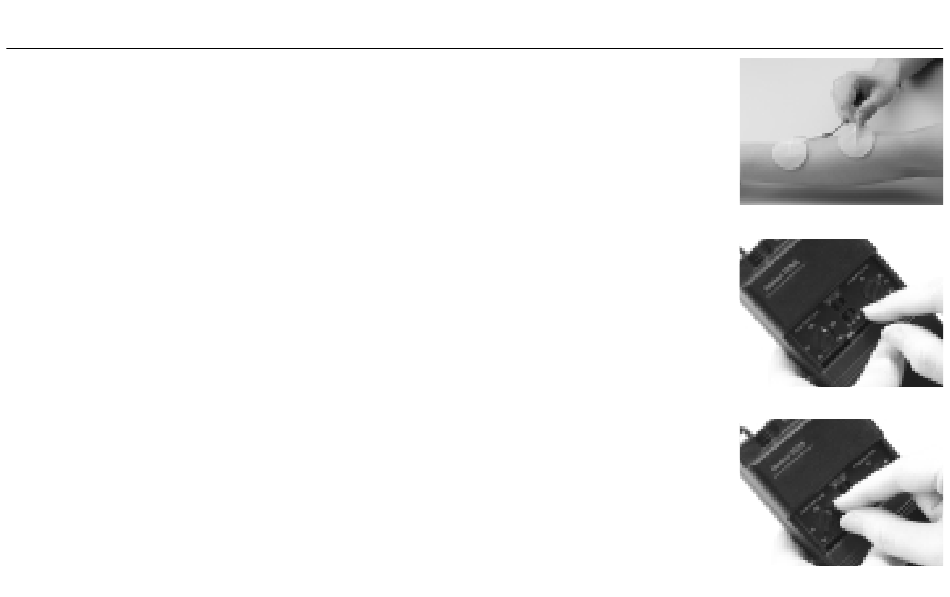

4.4 Place electrodes on skin:

Apply electrodes to the exact site indicated by your physician, following the instruction
included with the electrodes labeling. Before applying electrodes, be sure the skin surface
over which electrodes are placed is thoroughly cleaned and dried. Make sure the
electrodes are placed firmly to the skin and make good contact between the skin and the
electrodes. Place the electrodes over the skin; attach them properly, firmly, and evenly.
ADJUSTING THE CONTROLS

4.5 Select the mode:

Shift "MODE" switch to set the stimulation mode recommended by your physician or
therapist. For details about stimulating waveform and sequences, please refer to Sec. 3
"Stimulation Modes".
Caution: Consult your physician for your suitable stimulation mode.

4.6 Adjust the Pulse Width:

The pulse width is adjustable 60~250µs.
Turn Pulse Width Control to adjust pulse width to the setting recommended by your
medical professional.
11
