Attention Respected user: Thank you for choosing the instruments which carefully designed and manufactured by our company. In order to better utilize the product, we sincerely recommend: ◆◆ Please read this manual carefully before using the instrument. ◆◆ Please install, use and operate correctly according to the requirements in the manual.
Page 3
Maintenance Notes: Do not install or remove handles from the outlet while the machine is powered on. Please refer to the "Instrument Maintenance and Care" section before use. Instrument Maintenance and Care: Warning: Before conducting maintenance on this instrument, ensure to power it off and disconnect the power cord.
【3】Technical Parameters Shockwave energy Wavelength 0.5-10Bar 1064 nm Shockwave frequency Laser power 1-21Hz 1-12 W Shockwave shots Laser frequency 3 million shots 0.2-20000 Hz Shock wave working Laser pulse width 6 PCS 10us-3s heads (D35, D25, D20, D15, (for Pain Management) D10, D6) Shock wave working Laser working heads...
Page 6

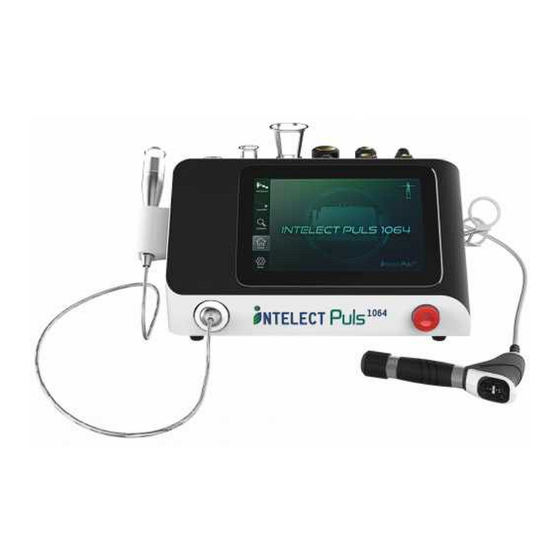

【4】Structure of the machine and how to install it ① ④ ② ⑤ ⑥ ③ ⑧ ⑫ ⑨ ⑩ ⑦ ⑪ Structure: ① Laser handle ⑦ Power socket ② Touch screen ⑧ Shockwave Attachment socket ③ Shockwave handle ⑨ Laser Attachment socket ④...
【5】Installation (1) Make sure the power is off. (Do not install or remove handles from the outlet while the machine is powered on.) (2) Connect the shockwave and laser handpiece to the attachment socket (⑧/⑨). (3) Enter the password “888888” (4) Select the corresponding function on the screen (②), choose the area, and use preset parameters or adjust the parameters manually.
【6】Touch screen Select body parts Select increment Shockwave interface Energy Laser interface Frequency Guideline interface Preload pulse Home interface Tips for reference (fig 1) Setup interface Pulse count Start Time (fig 1)
Page 9
Select body parts Aiming light Mode Power Frequency Pulse width Tips for reference (fig 2) Energy Start Time (fig 2)
Page 11
(fig 4-Home interface) Volume Language Clear count...
Page 12
【7】Shockwave therapy 1. Treatment theory Physiotherapy: Shockwave therapy is a multidisciplinary device used in orthopaedics, physiotherapy, sports medicine, urology and veterinary medicine. Its main assets are fast pain relief and mobility restoration. Together with being a non-surgical therapy with no need for painkillers makes it an ideal therapy to speed up recovery and cure various indications causing acute or chronic pain.
Page 13
After The elasticity of the connective tissue is restored and the skin is smoother. The skin is thicker and more elastic with noticeable improvement to the skin texture. 2. Indications Sports injuries Tennis elbow Tendonitis Plantar fasciitis ...
Page 14
4. Recommended steps Take “shoulder treatment” as an example: (1) Enter the body part selection page. Choose the “Shoulder” (Energy, frequency and preload shoots have been preset). We can also adjust the parameters based on the specific needs. Use the suitable treatment head based on the size of the treatment area. (2) Apply the gel to the back (3) Click on “Start”...
Page 15
Contraindication Vascular diseases present in or near the treatment area Local infections in the treatment area Around malignant or benign tumours Directly on cartilage surfaces or near the small facet joints of the spinal column Directly over implanted electronic devices such as pacemakers, analgesic pumps, etc. ...
【8】Laser therapy 1. Treatment theory The high-power laser has various applications in the field of physical therapy, including: Pain Management: By targeting specific areas of discomfort, the laser can help alleviate pain associated with conditions such as arthritis, muscle strains, and joint injuries. Tissue Repair: The laser's energy can stimulate cellular regeneration and promote tissue healing, aiding in the recovery process for injuries or wounds.
Page 17
(3) Set the parameters: Use physiotherapy plug. Without the focus ring.Suggested values for treatment parameters: The power is usually 15W or above , pulse width 30ms-50ms, frequency 5~6Hz. After about 6 seconds of fever, the energy is gradually increased, and the fever is not hot.
Page 18
4. Recommended treatment protocols for laser therapy Area Energy Mode Frequency Pulse Width Shoulder Continuous mode Back Pulse mode 18000 Hz Neck Pulse mode 20 Hz Knee Pulse mode 50 Hz Elbow Pulse mode 30 Hz 50 ms Wrist Pulse mode 50 Hz Thigh Continuous mode...
