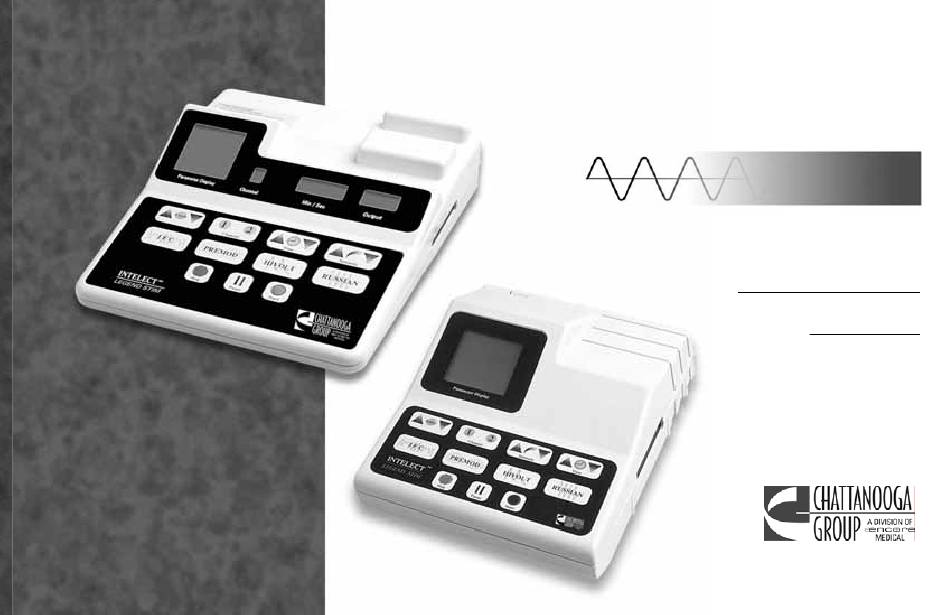

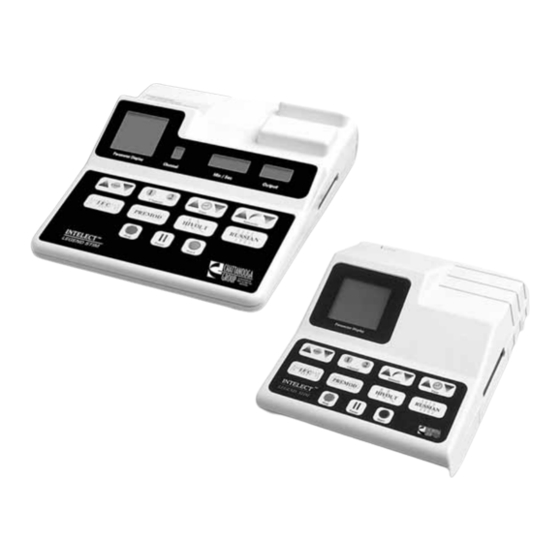

- Page 1 INTELECT LEGEND S E R I E S User Manual STIM Models 2S & 4S ISO 13485 CERTIFIED...
-
Page 3: Table Of Contents
Table of Contents Foreword ................. .2 Product Description . -
Page 4: Foreword
Features include Interferential, Premodulated, High Volt and Russian waveforms. Other features include our 1-2-Go Software, a clear, backlit LCD display and programmable power-up presets. Models 2S and 4S of the Intelect Legend Stim are prescription devices used under the supervision or by the order of a physician or other licensed healthcare provider. -
Page 5: Precautionary Instructions
Observe the precautionary and operational decals placed on the unit. 2. CAUTION: Do not operate the Intelect ® Legend Stim when connected to any unit other than Chattanooga Group devices. Do not operate the unit in an environment of short-wave diathermy use. -
Page 6: Installation
Check the voltage rating on the serial decal located on the bottom of the unit. Plug the system power supply in to a 100 Volt to 220-240 Volt AC outlet, as required. INTELECT LEGEND STIM USER MANUAL... -
Page 7: Package Contents
• DO NOT place unit in a location where the power cord could be tripped over or pulled out during treatment. • DO NOT attempt to use the unit if it is not properly grounded. Package Contents Standard Accessories The following accessories are included with your Intelect ® Legend Stim: Legend Stim 2S 12213 Lead, 120"... -
Page 8: Optional Accessories
Optional Accessories The following is a list of optional accessories available for the Intelect ® Legend Stim: 79977 High Volt Probe Kit 10832 Strap, Nylatex ® , Long 2- "x 48" 10648 Strap, Nylatex, Medium, 2- "x 24" 10828 Strap, Nylatex, Short, 2- "x 18"... - Page 9 • Immediate postsurgical stimulation of calf muscles to prevent venous thrombosis Contraindications • This device should not be used on patients with demand type cardiac pacemakers. • This device should not be used on cancer patients. INTELECT LEGEND STIM USER MANUAL...
- Page 10 • Some patients may experience skin irritation or hypersensitivity due to the electrical stimulation or the electrical conductive medium. The irritations can usually be reduced by the use of an alternate conductive medium or alternative electrode placement. INTELECT LEGEND STIM USER MANUAL...
-
Page 11: User Maintenance
Between patient uses, patient applied parts should be wiped clean with a clean damp cloth, then use another clean cloth to clean with a hospital grade germicide. Follow germicide manufacturer directions. Some highly concentrated germicide mixtures could damage the product if not diluted in accordance with directions of the germicide manufacturer. INTELECT LEGEND STIM USER MANUAL... -
Page 12: Technical Maintenance
The software control of the Legend Stim has been designed to be extremely user friendly. First press the treatment mode button of your choice, increase intensity and press start. The software also allows great flexibility should you desire to change parameters. INTELECT LEGEND STIM USER MANUAL... - Page 13 Right Side Panel of 4S Stop – This button will stop the treatment on the selected channel. Pause – This button will pause the treatment on the selected channel. Operating Channels – Model 2S of the Intelect Legend Stim provides two ®...
- Page 14 Intelect Stim 2S Parameter Display and User Panel INTELECT LEGEND STIM USER MANUAL...
- Page 15 Intelect Stim 4S Parameter Display and User Panel INTELECT LEGEND STIM USER MANUAL...
-
Page 16: Pain Management
Pain Management The management of post-traumatic, post-operative or chronic intractable pain associated with many areas of the body can be a difficult task. Models 2S and 4S of the Intelect ® Legend Stim provide two waveforms and many parameter settings to manage pain. - Page 17 Scan Percentage is the percentage of decrease from the maximum amplitude. Scan is amplitude modulation, expressed as a percentage of the amplitude. The rhythmical varying of the amplitude of each channel produces the perceived movement of the Interferential field. Ch. Select Amplitude Modulation/Scan Percentage INTELECT LEGEND STIM USER MANUAL...
- Page 18 The Fixed Option, allows you to select a fixed frequency from 1-200 Hz. To make changes to the Fixed frequency, highlight and press . Use the arrows to adjust frequency. Press to accept. FIXED ENTER DOWN ENTER Beat Frequency Beat Low Fixed Option INTELECT LEGEND STIM USER MANUAL...
-
Page 19: Premodulated
The Fixed Option, allows you to select a fixed frequency from 1-200 Hz. To make changes to the Fixed frequency, highlight and press . Use the arrows to adjust frequency. Press FIXED ENTER DOWN ENTER accept. Fixed Option INTELECT LEGEND STIM USER MANUAL... -
Page 20: Muscle Contraction
Two waveforms are available for muscle contraction therapy; Twin-Peak High Volt and Russian. The appropriate selection of a waveform for relaxing muscle spasms, increasing local circulation, re-educating muscles that have atrophied from disuse or injury, or to maintain or improve joint range of motion can be difficult. Both models 2S and 4S of the Intelect ®... -
Page 21: Russian
1 second, 2 seconds (default) and 5 seconds. Duty Cycle is the ratio of on time to total time of the burst and is expressed as a percentage. Mode The options are 10%, 20%, 30%, 40% and 50% (default). INTELECT LEGEND STIM USER MANUAL... -
Page 22: Miscellaneous
• Select and modify desired parameter(s). • Press and hold the button, then press the button. PAUSE ENTER To Change LCD Screen Contrast: • Press and hold the button. MAIN MENU • Modify contrast by using the buttons. POWER INTENSITY INTELECT LEGEND STIM USER MANUAL... -
Page 23: Technical Specifications
15 sec Alternating Time in Seconds N/A Polarity Amplitude 0-50 mA RMS 0-50 mA RMS Voltage (max) 200 Volts 200 Volts Treatment Time 1 to 60 min 1 to 60 min N/A = Not Applicable INTELECT LEGEND STIM USER MANUAL... - Page 24 Pos. (+), Neg. (-) Amplitude 0-100 mA RMS 0-500 mA RMS into 500 ohm load Voltage (max) 200 Volts 0-500 Volts Output Current 0-2500 mA Peak Treatment Time 0-60 min 0-60 min N/A = Not Applicable INTELECT LEGEND STIM USER MANUAL...
-
Page 25: Warranty
Warranty Chattanooga Group ("Company") warrants that the Intelect ® Legend Stim ("Product") is free of defects in material and workmanship. This warranty shall remain in effect for two (2) years from the date of original consumer purchase of this Product and extends to any owner of the Product during the warranty period. Accessories that are included as standard with the product (as listed in the users manual) are warranted for 90 days. - Page 26 The Company does not authorize any person or representative to create for it any other obligation or liability in connection with the sale of the Product. Any representation or agreement not contained in the warranty shall be void and of no effect. INTELECT LEGEND STIM USER MANUAL...
- Page 28 Treatment and Traction Equipment Hydrocollator ® ® 4717 Adams Road Heating Units and HotPacs™ Treatment and Traction Equipment P.O. Box 489 Intelect Legend ® Vectra ™ Series Hixson, TN 37343 Ultrasound and Electrotherapy Products U.S.A. Ultrasound and Electrotherapy products Measurement Instruments 1-423-870-2281 Versa Bath Seat ™...
