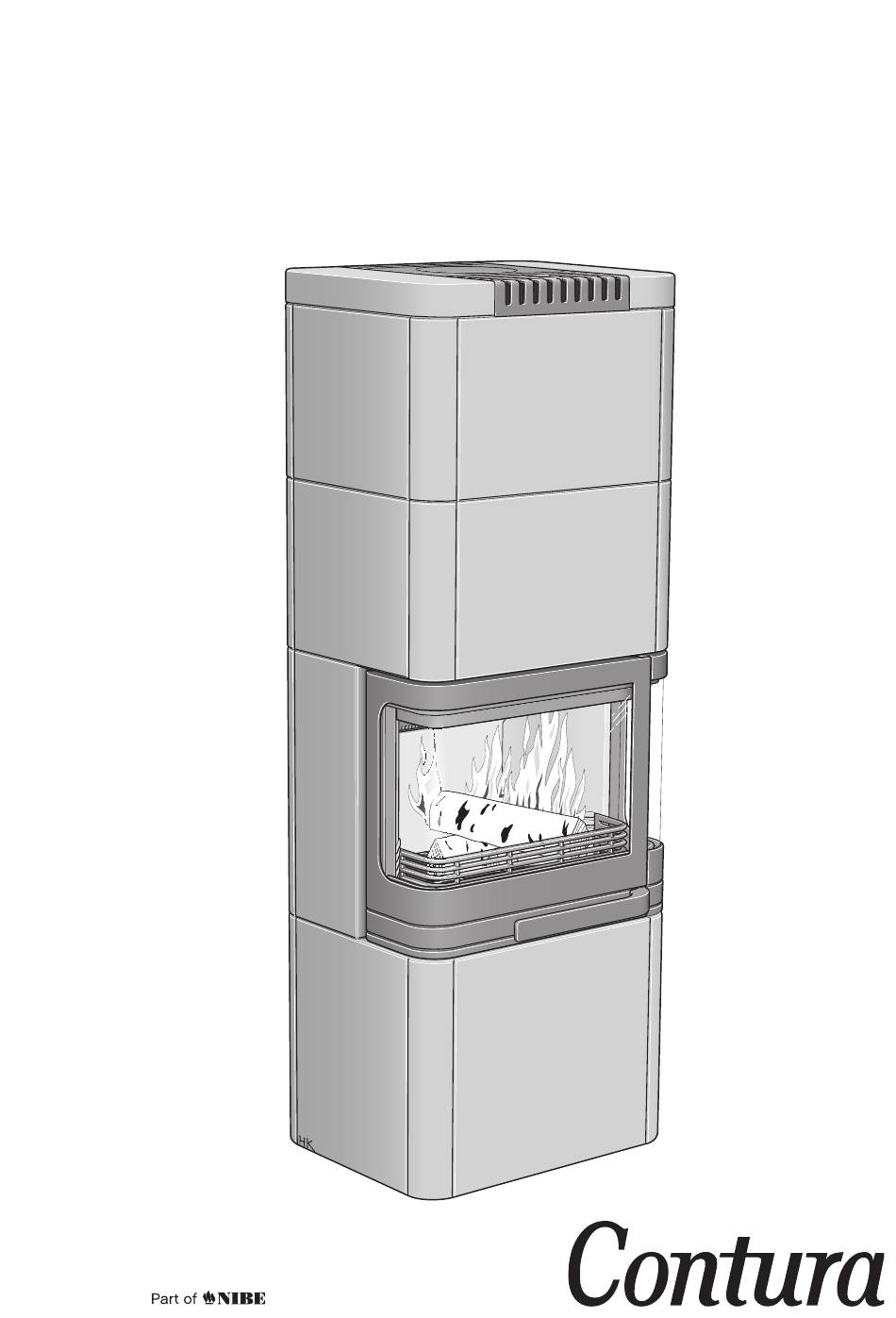

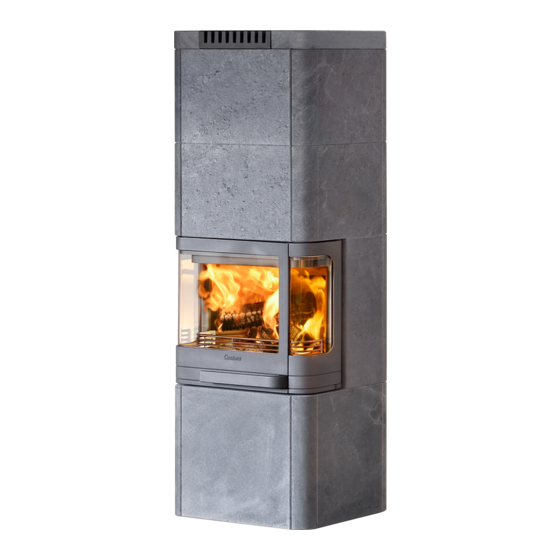

- Page 1 Installation instructions C26T High www.contura.eu...
- Page 2 Emissions of hazardous substances Approved Nominal output 6 kW Efficiency Flue gas temperature in connector at nominal 280°C output The undersigned is responsible for the manufacture and conformity with the declared performance. Niklas Gunnarsson, Business area manager NIBE STOVES Markaryd, 1st July 2013...
- Page 3 CONTENTS A warm welcome to Contura. A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove, you have secured a product with timeless design and long service life. Contura also has a combustion process that is both environmentally friendly and efficient, for the best heat production.
- Page 4 Distance to cumbustible wall (mm): Behind 150 Beside 450 Corner 150 Follow the user’s instructions and use only recomended fuel 603363 NIBE AB Box 134 SE-285 23 MARKARYD SWEDEN HANDÖL Type: 50-series Production no. 7090300236 NIBE AB SE-85 21 Markaryd Sweden...
- Page 5 SUPPLY AIR/ACCESSORY Supply of combustion air When a stove is installed in a room, the air supply demand to the room increases. Air can be provided indirectly via a vent in the outer wall or via a duct from the outside that is connected to the connector on the underneath of the stove.
- Page 6 CHIMNEY Connection to chimney • The stove meets the requirements for connecting to chimneys • A flue with sharp bends and horizontal routing reduces the dimensioned for flue gas temperatures of 350°C. draught in the chimney. The maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m.
- Page 7 INSTALLATION DISTANCES Installation distances C26T High A = height from floor to chimney connection upwards B = height from floor to c/c chimney connection rear C = distance from back to c/c chimney connection upwards Combustible roof Place the stove on the D = distance from back to chimney connection rear hearth plate and check E = distance from back to hole in guide plate...
- Page 8 INSTALLATION Installation of C26T High The stove needs to be placed on a level and horizontal surface, so the courses do not end up uneven and crooked. Otherwise, this can result in abnormally large gaps and uneven lines. During assembly, check that all the stones stand horizontally and that all parts in a course are of a uniform height.
- Page 9 INSTALLATION Place the profile edge to edge with the stone's side. Wait to tighten this screw until the next stone is in place.
- Page 10 INSTALLATION Press the profiles up as far as they go, while tightening the screws. Not with the heat reservoir option For the heat reservoir option, go to page 76. Final inspection of the installation It is extremely important that the installation is inspected by an authorised chimney sweep before the stove is used.
- Page 11 INSTALLATION Final installation Adjustment screws for placement in the guide plate to support the top stones. Adjust them, so they are at the same height as the top of the side stones. Check that the damper can be opened and closed without problem.
- Page 12 INSTALLATION Installation of heat reservoir (option)
- Page 13 INSTALLATION...
- Page 14 INSTALLATION Go to page 75 for final installation...
- Page 16 NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any 811090 IAV SE-EX C26T Hög -5 time without special notice. The current edition can be 2015-07-07 downloaded from www.contura.eu...
