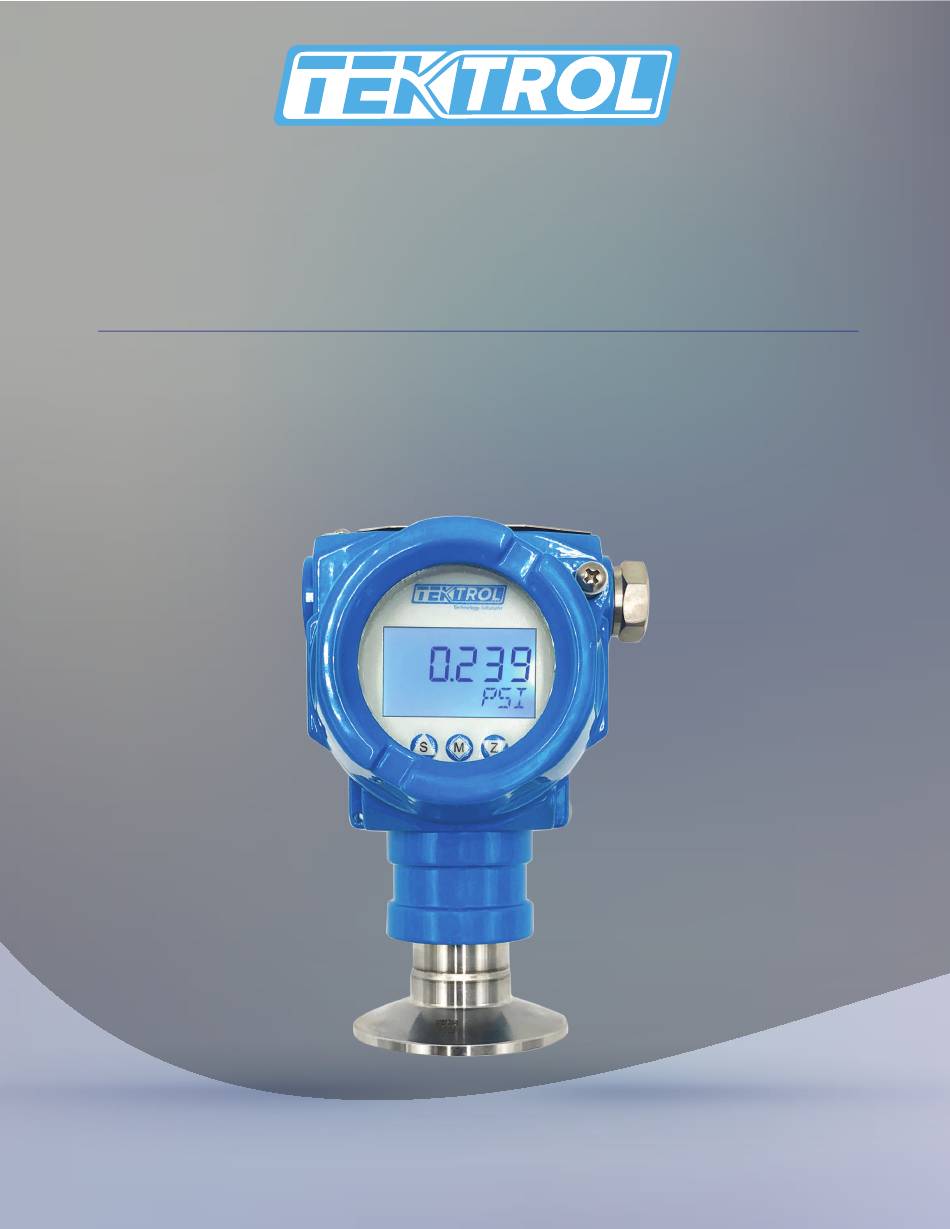

- Page 1 Technology Solutions AR 3120C Sanitary Gauge Pressure Transmitters Instruction Manual Document Number: IM-3120C www.tek-trol.com...
- Page 2 www.tek-trol.com NOTICE Read this manual before working with the product. For personal and system safety, and for optimum product performance, make sure you thoroughly understand the contents before installing, using, or maintaining this product. For technical assistance, contact Customer Support 796 Tek-Drive Crystal Lake, IL 60014 Tel: +1 847 857 6076...
-
Page 3: Table Of Contents
Table of Contents Safety Instructions ......................3 Intended Use ......................... 3 Safety Instructions from the Manufacturer ................3 Disclaimer ............................. 3 Product Liability and Warranty ..................... 3 Information Concerning the Documentation ................3 Safety Precautions ........................4 Packaging, Transportation, and Storage .................. 4 ............................ - Page 4 Electrical Connections ....................... 16 Grounding of Measuring Device ................... 16 Power Supply Specifications and Connection ................ 17 Cable Protection System ...................... 18 Standard Protection System ....................... 18 4.3.2 Connection to the HART Handheld Communicator ..............18 Operation ......................... 19 Local Operation and Display ....................19 Operation in safe and hazardous area ..................
-
Page 5: Safety Instructions
1 Safety Instructions 1.1 Intended Use Tek-bar 3120C is a Sanitary Gauge Pressure Transmitter used for pressure, flow, level and density measurement of steam and liquids. The manufacturer is not liable for damage caused by improper or non-designated use. 1.2 Safety Instructions from the Manufacturer... -
Page 6: Safety Precautions
Indicates that operating the hardware or software in this manner may damage it or lead to system failure. 1.4 Packaging, Transportation, and Storage This section contains information regarding packaging, transportation, and storage. Packaging The original package consists of Tek-Bar 3120C Sanitary Gauge Pressure Transmitter Accessories (optional) Documentation... -
Page 7: Transportation
NOTE Unpack and check the contents for damages or signs of rough handling. Report damage to the manufacturer immediately. Check the contents against the packing list provided. Transportation Avoid impact shocks to the device and prevent it from getting wet during transportation. Verify local safety regulations, directives, and company procedures with respect to hoisting, rigging, and transportation of heavy equipment. -
Page 8: Nameplate
1.5 Nameplate The nameplate lists the order number and other important information, such as design details and technical data. NOTE Check the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate. -
Page 9: Product Description
Highly accurate and reliable measurement of level, density and pressure of liquid, gases or steam is possible with Tek-Bar 3120C. The performance accuracy is up to 0.05% of URL. This high-performance pressure transmitter meticulously designed by Tek-Trol supports HART communication protocol and IP66 waterproof protection. -
Page 10: Specifications
2.3 Specifications All fluids compatible with gases, steam and liquids Gauge Pressure 5.8 psig - 300 psig ±0.2% of F.S. ±0.2% URL/5 years -40°F to 185°F (-40°C to 85°C), integrated LCD display: -4°F to 158°F (-20°C to 70°C) ≥20 M Ω at 100 VDC Apply to any position. -
Page 11: Dimensional Drawings
Equal to the sum of damping time of Total damping time constant amplifier and sensor capsule Damping time of amplifier 0 -100 s adjustable Diaphragm capsule (isolated diaphragm and silicon oil filling) ≤ 0.2 s damping time ≤ 6 s Start-up after power off ≤... -
Page 12: Model Chart
2.5 Model Chart Example Tek-Bar 3120C-G 1 SS Tek-Bar 3120C-G-3-WP-1-SS-1 Tek-Bar 3120C-G Sanitary Gauge Pressure Transmitter Series 0 to 5.8 psig 0-36 psig 0-145 psig Range Options 0-300 psig General Purpose NEMA 4X/IP66 Approval Rating CSA Class 1 Div 1 Explosion-Proof 2"... -
Page 13: Installation
3 Installation This section covers instructions on installation and commissioning. Installation of the device must be carried out by trained, qualified specialists authorized to perform such works. CAUTION When removing the instrument from hazardous processes, avoid direct contact with the fluid and the meter All installation must comply with local installation requirements and local electrical code 3.1 Selecting the Installation Location... -
Page 14: Clamp Connection
3.2.1.1 Clamp Connection Choose gaskets that meet specified standards to avoid excessive clamp locking and squeezing gasket. Excessive locking of clamp may damage the sensing diaphragm and cause measuring error. NOTE Engage process connection with a minimum of 7 thread connections and tighten the housing rotation set screw to prevent it from rotating Housing Rotation To ensure the visibility of LCD display... -
Page 15: Conduit Installation
Conduit Installation Improper sealing of connections may damage the transmitter due to excess moisture accumulation. Mount the transmitter with electrical housing positioned downward so that the excess of moisture is condensed and drained out from the casing. Secondly, install wiring with a drip loop and ensure the bottom of the drip loop is mounted lower than the conduit connections or the transmitter housing to avoid moisture accumulation in the housing. -
Page 16: Zero Point Adjustment
Zero Point Adjustment For sensor zero trim, ensure that the vessel is empty and there is no input medium pressure on the diaphragm. The vessel should be applied a normal atmospheric pressure. If applying external pressure to the transmitter make sure that the display is sufficiently stabilized (after approximately 10 to 15 seconds), before initiating any trim function. -
Page 17: Steam Flow Measurement
Steam flow measurement For steam flow measurement, up-tilt the guiding pressure tube by 45°. Ensure that transmitter installation location is at lower level than that of the process pipeline. Pre-inject cooling liquid into the guiding pressure tube. Slowly open the shut-off valve to start measurement. -
Page 18: Electrical Connections
4 Electrical Connections This section covers the all electrical connection requirement. Electrical connection of the device must be carried out by trained, qualified specialists authorized to perform such work by the installation site. WARNING Connect all electrical cables when the power is switched off. If the device does not have switch-off elements, then, overcurrent protection devices, lightning protection and/or energy isolating devices must be provided by the customer. -
Page 19: Power Supply Specifications And Connection
4.2 Power Supply Specifications and Connection Use independent linear direct current power supply for pressure transmitter. Large resistive load results in high pressure drop. Therefore, it is recommended to consider the resistance across the signal cable, display meter and other equipment to ensure sufficient voltage is provided to the pressure transmitter for its normal operation. -
Page 20: Cable Protection System
Power Supply Connections 4.3 Cable Protection System Apply following cable protection measures to protect the connecting cables from various factors that affect negatively on the cable lifetime. Standard Protection System To avoid liquid flowing along with the cable into the terminal box, configure a U-shaped ring between pull box and pressure transmitter as shown in the figure below. -
Page 21: Operation
5.1 Local Operation and Display Tek-Bar 3120C is available with the optional LCD display. The local display enables user to read important parameters directly at the measuring point and configure the device using the function matrix. -
Page 22: Key Operation
The same keys are used in combination to perform several advanced functions. Key Operation For performing zero-point adjustment and full span pressure adjustment follow the instructions and display screenshots given in the flow diagram below. Factory Reset Achieving the original factory settings at any point of time after the installation of the transmitter is possible by either of the following methods. -
Page 23: Detailed Operating Instructions
Detailed Operating Instructions Refer the following flow diagrams to configure various parameters. Use parameter table to know the possible range of values and units. - Page 24 Parameter Table Parameter Values Display mode Percentage Process variable Current Units Use the keys Z() and S() to change the units mmHg mmH2O mH2O inH2O ftH2O inHg TORR mbar g/cm2 kg/cm2 Lower and Upper -19999-99999 range Damping time 0 ~ 100 s √...
-
Page 25: Handheld Communicator
5.4 Handheld Communicator If custom display is not available, then configure transmitter parameter using communicator. Decimal point position, Upper range value, Lower range value, Engineering units are configured. See the below flow chart. -
Page 26: Maintenance
6 Maintenance This section covers maintenance techniques and guidelines. WARNING Explosion can result into a serious injury. After disconnecting power wait for a minute to allow the circuit and enclosure to cool down before opening. Avoid direct contact with the leads and terminals. High voltage on leads can cause electrical shock. -
Page 27: Depot Repair
Depot Repair Execute following steps before sending the device for depot repair: Disconnect the transmitter carefully. Preserve all accessories and cables for reassembling. Remove the harmful residues such as inflammable, poisonous, cancer genic and radioactive substances. Repack the device in original packaging material provided at the time of delivery and send for repair. -
Page 28: Troubleshooting
7 Troubleshooting This section provides troubleshooting techniques for most common operating problems. When device malfunction is suspected despite the absence of any diagnostic messages on the HHT, inspect following points. If measurement signal appears irregular, check whether the process pressure is within the working range, or the abnormality lies in the measuring system, installation environment or pressure transmitter. - Page 29 Erratic Output Loop Wiring Check the output voltage of the power supply at the transmitter terminals. It should be 10.5 to 55 VDC. Check for intermittent shorts, open circuits, and multiple grounds. Check for proper polarity at the signal terminals. In case measuring electric current while digital communication, output appear around +-0.013mA...
- Page 30 Sales: +31 76-2031908 Sales: +971-6526-8344 Support: +1 847-857-6076 Email: tektrol@tek-trol.com www.tek-trol.com Tek-Trol is a fully owned subsidiary of TEKMATION LLC. We offer our customers a comprehensive range of products and solutions for process, power and oil & gas industries. Tek-Trol provides process measurement and control products for Flow, Level, Temperature &...
